Xerox PHASER 6130 Service Manual

8-4 Phaser 6130 Color Laser Printer Service Manual
Service Parts Disassembly
Preparation
Before you begin any removal and replacement procedure:
1. Wear an Electrostatic Discharge wrist strap to help prevent damage to the
sensitive electronics of the printer circuit boards.
2. Turn off the printer power and disconnect the power cord from the wall
outlet.
3. Disconnect all computer interface cables from the printer.
4. Remove the Paper Tray.
5. Open the Front Cover.
6. Remove the following Maintenance Items:
Caution
Do not expose the Imaging Unit to light for more than 5 minutes. After
removal, cover the Imaging Unit to minimize the amount of light
striking the drums. Prolonged exposure to light significantly reduces
Imaging Unit performance.
a. Imaging Unit (page 8-8).

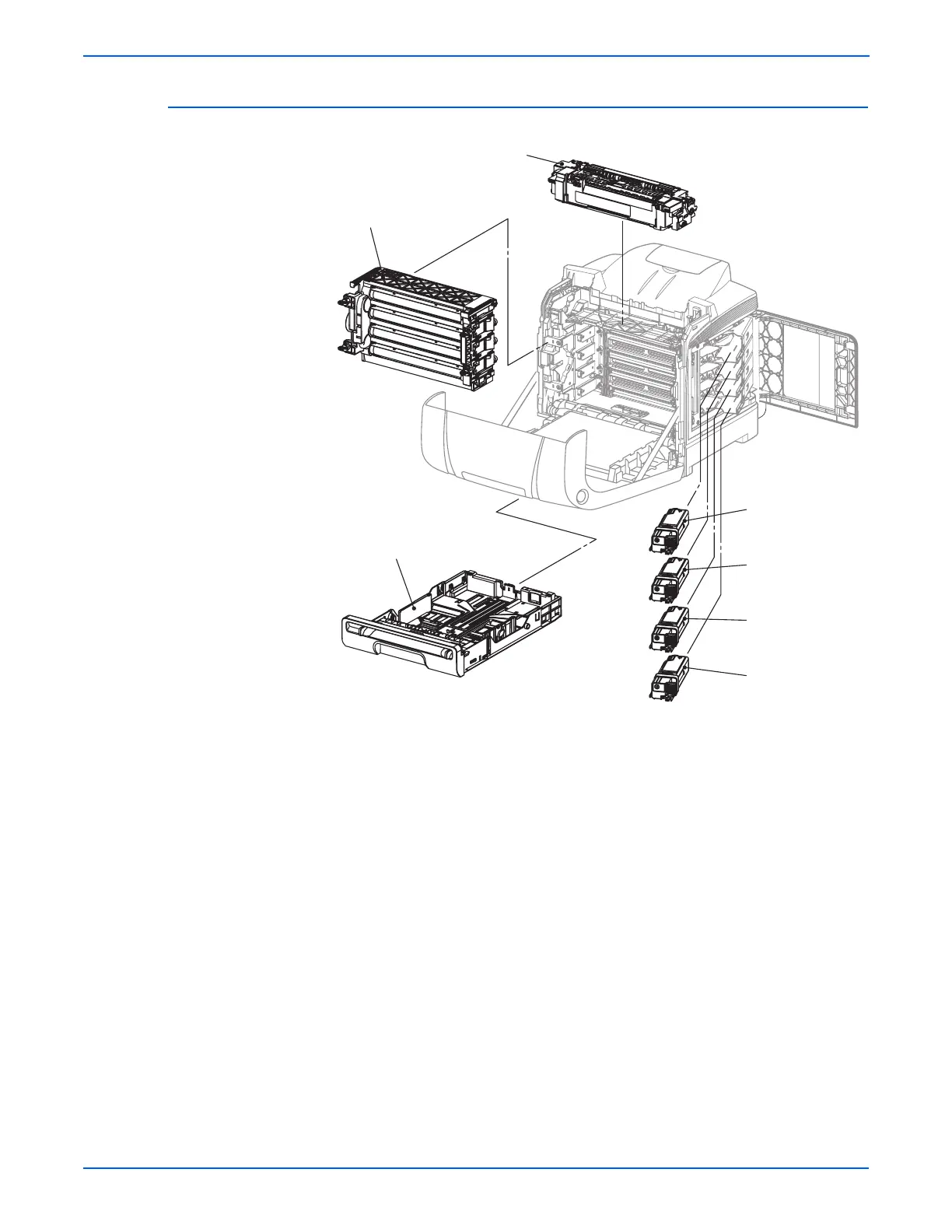

s6130-052
Imaging Unit
Paper Tray
Fuser
Black Toner
Cartridge
Cyan Toner
Cartridge
Magenta Toner
Cartridge
Yellow Toner
Cartridge

Xerox PHASER 6130 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Warm-up time (from sleep mode)	25 s
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Maximum internal memory	1152 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	251 sheets
Media weight (tray 1)	64 - 220 gsm
Multi-Purpose Tray media weight	64 - 164 g/m²
Functions	Print
I/O ports	10/100BaseTX Ethernet, USB 2.0
Device manager	Auto IP, BOOTP/RARP, DHCP, PrintingScout Alert Notification, SNMP v.2, Xerox CentreWare Internet Services Embedded Web Server, Email alerts
Package length	558.79 mm
Depth (imperial)	17.5 \
Width (imperial)	15.75 \
Height (imperial)	15.3 \
Security features	Secure Print
Power requirements	220–240 VAC, 50/60 Hz
Networking features	10/100 Base-TX Ethernet
Color space standard	ICM, ICC, PANTONE Color Approved
Enhanced scan resolution	600 x 600 DPI
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	280 W
Compatible operating systems	Windows 2000/2003 Server/XP/XP Home Edition (SP1 +)/ Vista, Mac OSX 10.2 +, Linux: SUSE 9.2 +/Turbo Linux 10/ Red Hat ES3 +/Fedora Core/Yellow Dog 3.X
Acoustic power emissions (standby)	43 dB
Non-operating relative humidity (non-condensing)	15 - 85 %
Acoustic power emissions (active, print, copy or scan)	64.6 dB
PCL fonts	81
Printer fonts	PCL, PostScript
Country of origin	China
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Number of PostScript fonts	136
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	15 - 80 %
Certification	FCC 15 B, UL 60950-1/CSA 60950-1-03, CE Mark 73/23/EEC, 89/336, EEC, Section 508 ADA
Package width	533.39 mm
Package height	507.99 mm
Package weight	22226.4 g

Weight and Dimensions

Depth	445 mm
Width	400 mm
Height	389 mm
Dimensions (WxDxH)	400 x 394 x 389 mm
