Phaser 6130 Color Laser Printer Service Manual 8-9
Service Parts Disassembly
Fuser
(PL6.1.1)
arn
ng
The Fuser may be hot. Turn the printer power Off and allow at least 5
minutes for the Fuser to cool before removing the Fuser.

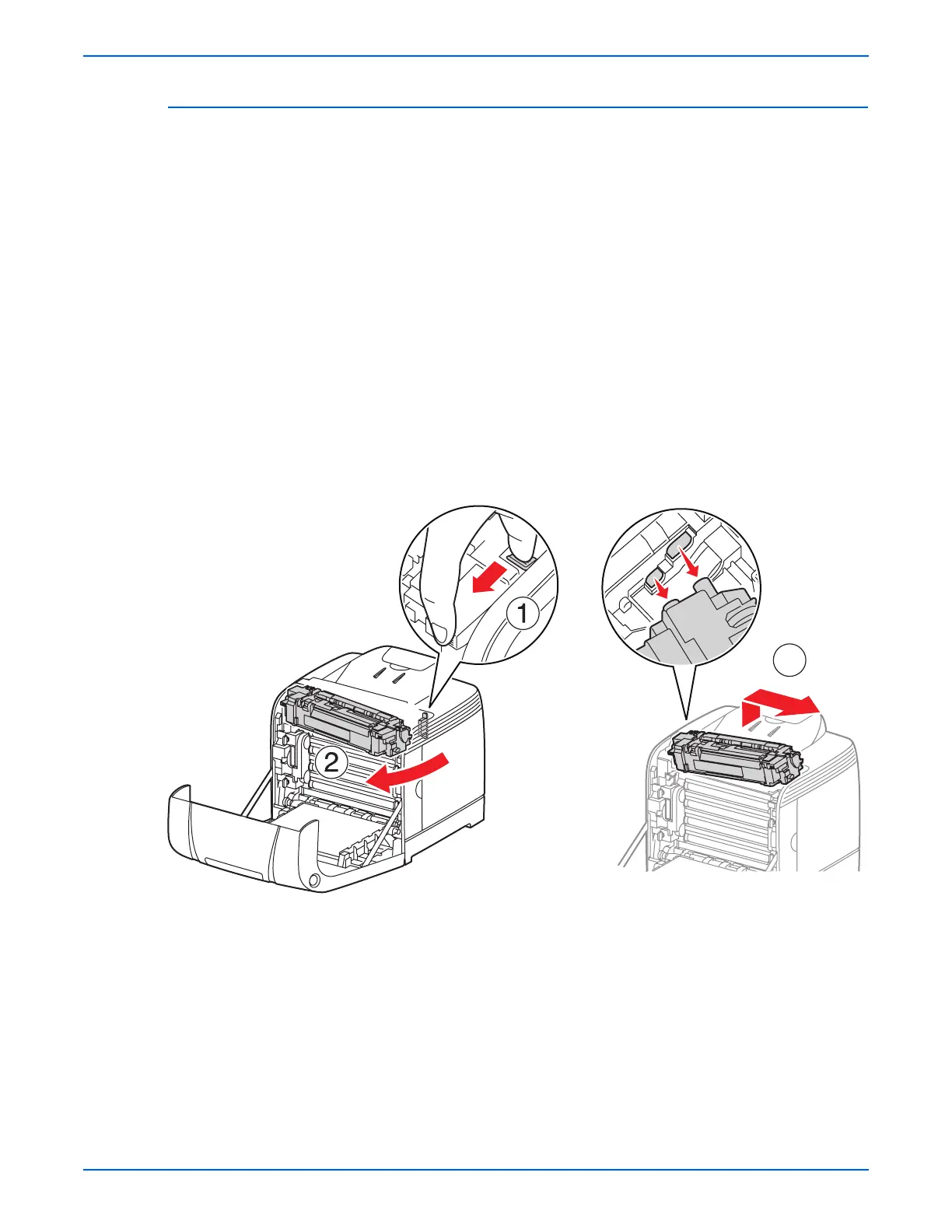

After opening the Front Cover:
1. Pull the Lever to release the lock.
2. Swing the right side of the Fuser toward you with the Lever released to
unplug the Fuser Connector.
3. Lift the Fuser up, then to the right to remove it.
o
e
If the fuser being replaced has reached end-of-life:
■ Be sure to reset the fuser counter in the customer menu
■ It is highly recommended that the Feed and Separator Rollers be
replaced at the same time
s6130-078
s6130-079
3
To Next Page
