Xerox PHASER 6130 - Adjustments

6-2 Phaser 6130 Color Laser Printer Service Manual
Adjustments and Calibrations
Adjustments
Color Registration
The Color Registration adjustment procedure allows the user to change or
correct the alignment of the four color images to meet specifications and/or
user’s requirements.
N
o
t
e
Adjusting laser power from the default value impacts other print-quality
parameters, such as background, halftone/fine line production, fuser fix,
and toner consumption. This adjustment should not be performed
without first discussing with the customer regarding its potential
impact on overall print quality.

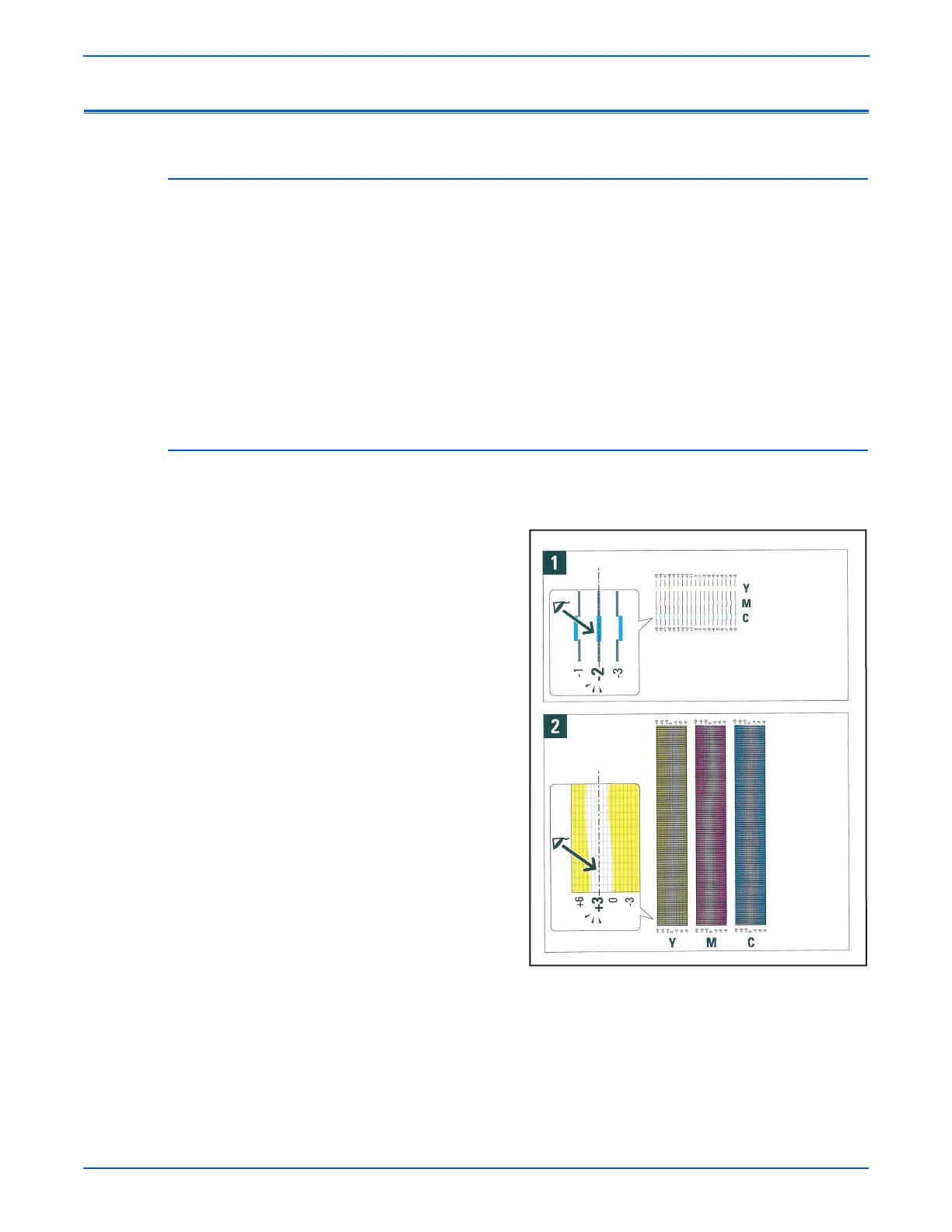

Printing the Color Registration Correction Chart
Before performing the Color Registration adjustment procedure, print the
Color Registration Correction Chart for reference.
1. From the Control
Panel, press the
Menu button.
2. Press the Up Arrow
or Down Arrow button
to find Admin Menu.
Press the OK button.
3. Press the Up Arrow
or Down Arrow button
to find Maintenance
Mode. Press the OK
button.
4. Press the Up Arrow
or Down Arrow button
find Adjust Color
Regi. Press the OK
button.
5. Press the Up Arrow
or Down Arrow button
to find Color Regi
Chart. Press the OK
button. The Color
Registration Chart is
printed. When printing
is finished, the Ready
menu is displayed.
N
o
t
e
After printing the Color Registration Correction Chart, do not power OFF
the printer until the printer motor has stopped running.
