Xerox PHASER 6130 Service Manual

Phaser 6130 Color Laser Printer Service Manual 4-33
General Troubleshooting
Regi Clutch
The Regi clutch controls the drive to the Registration Roller.
Caution
When performing this procedure, remove and cover the Imaging Unit to
avoid exposure to light.
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Imaging Unit (page 8-8).
4. Use a paper clip to secure the Interlock Switch.
5. Perform the Main Motor FULL2 test: Engine Diag > Motor Test > Main
Motor FULL2.
6. While the Main Motor is running, press the Up Arrow button to find Regi
Clutch. Press the OK button to run the Regi Clutch test.
N
o
t
e
The Registration Rollers rotate when the Main Motor FULL2 and the
Registration Clutch tests are executed.
7. Verify that the Main Motor is running and the Registration Rollers are
rotating.
8. Press the Cancel button to stop the Regi Clutch test.
9. Press the Down Arrow button to find Main Motor FULL2.
10. Press the Cancel button to stop the Main Motor test.
11. Remove the paper clip from the Interlock Switch.
12. Press the Cancel button to stop the ADC Sensor Solenoid test.
13. Remove the paper clip from the Interlock Switch.
s6130-197

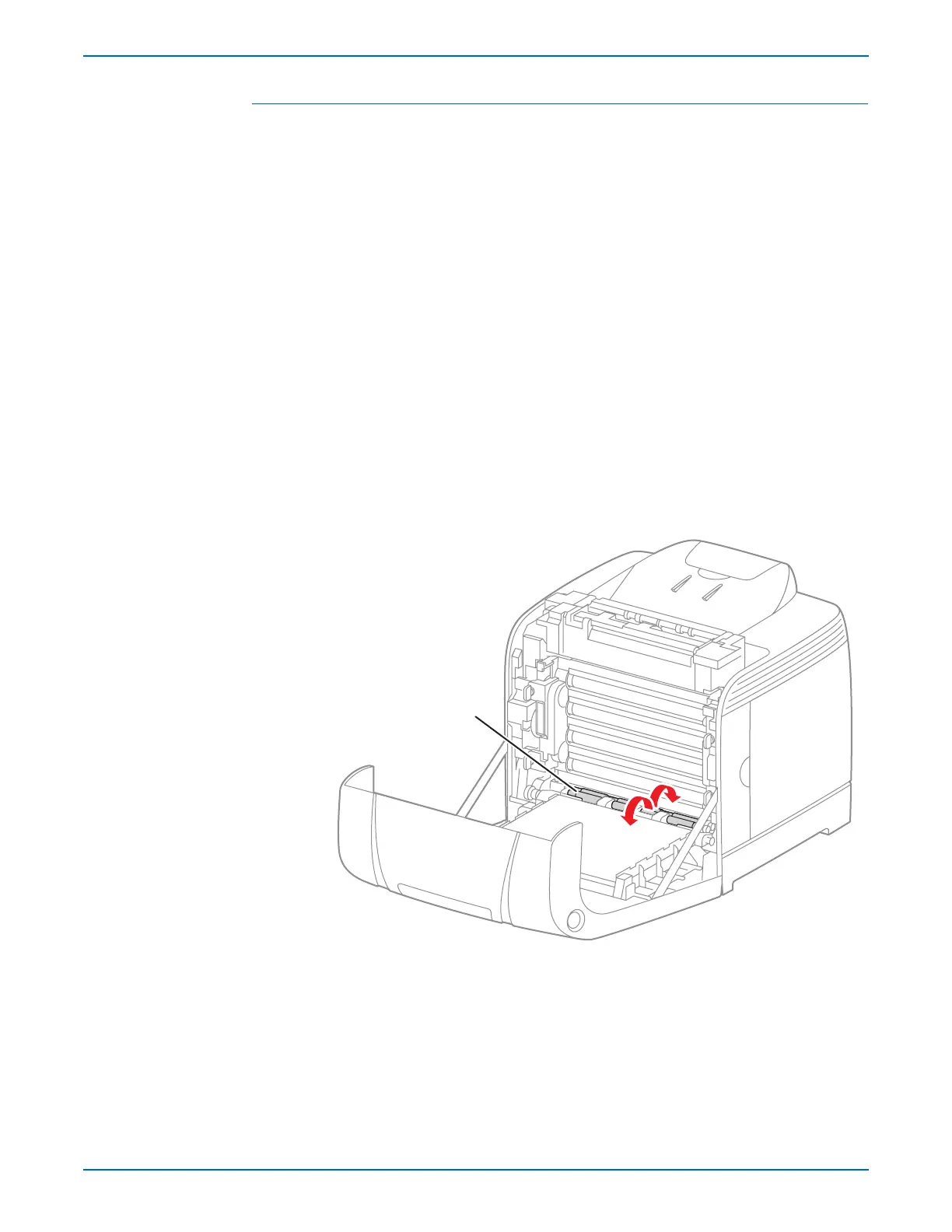

Registration Rollers
