4-36 Phaser 6130 Color Laser Printer Service Manual
General Troubleshooting
Drum Erase Lamp (Y/M/C)
Caution
When performing this procedure, remove and cover the Imaging Unit to
avoid exposure to light.
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Imaging Unit (page 8-8).
4. Use a paper clip to secure the Interlock Switch.
5. Perform the Drum Erase Lamp YMC test: Engine Diag > Motor Test >
Drum Erase Lamp YMC.
6. Verify that the Lamps are operating.
7. Press the Cancel button to stop the Drum Erase Lamp YMC test.
8. Remove the paper clip from the Interlock Switch.

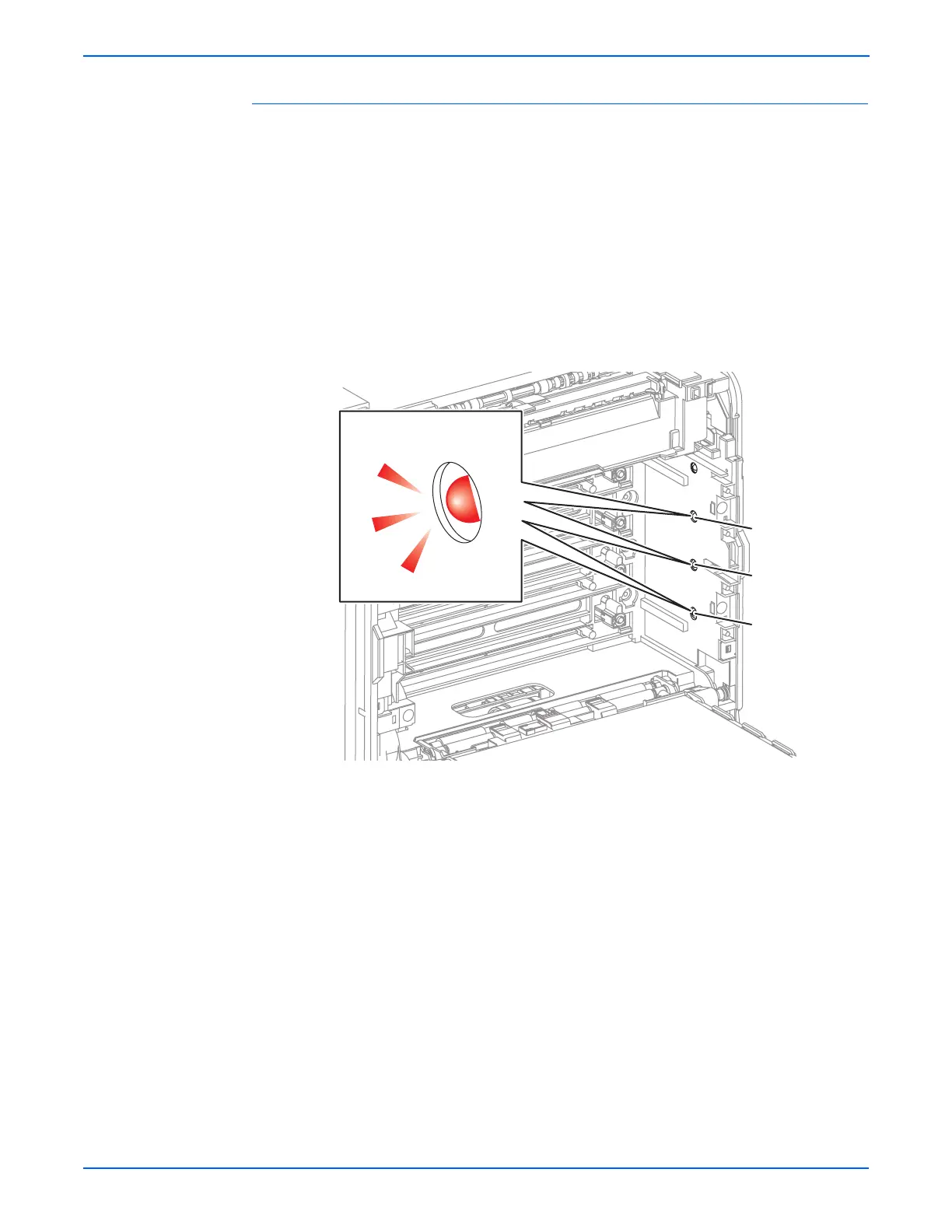

s6130-200
Cyan
Erase Lamp
Magenta
Erase Lamp
Yellow
Erase Lamp
To Next Page
