Phaser 6130 Color Laser Printer Service Manual 8-51
Service Parts Disassembly

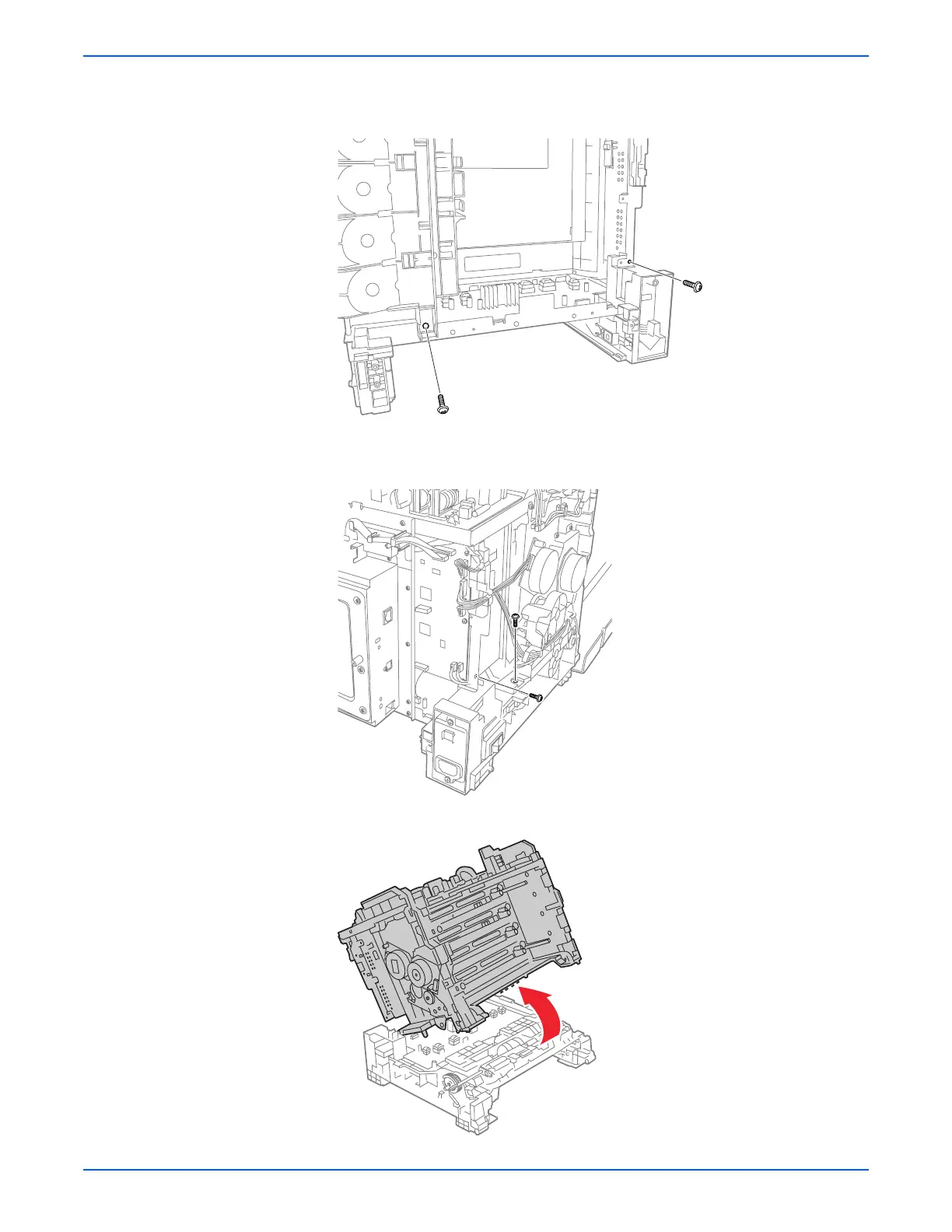

16. Remove the screw (silver, 6mm) that attaches the rear side of the
Dispenser Assembly and the screw (silver, tap, 8mm) that attaches the
MCU L.
17. Remove the screw (silver, tap, 8mm) that attaches the left side of the
printer frame and the screw (silver, tap, 8mm) that attaches the BRACKET
MCU L.
18. Lift the Upper Assembly off of the Lower Assembly.
s6130-122
s6130-123
s6130-124
To Next Page
