7-32
BRKT
E

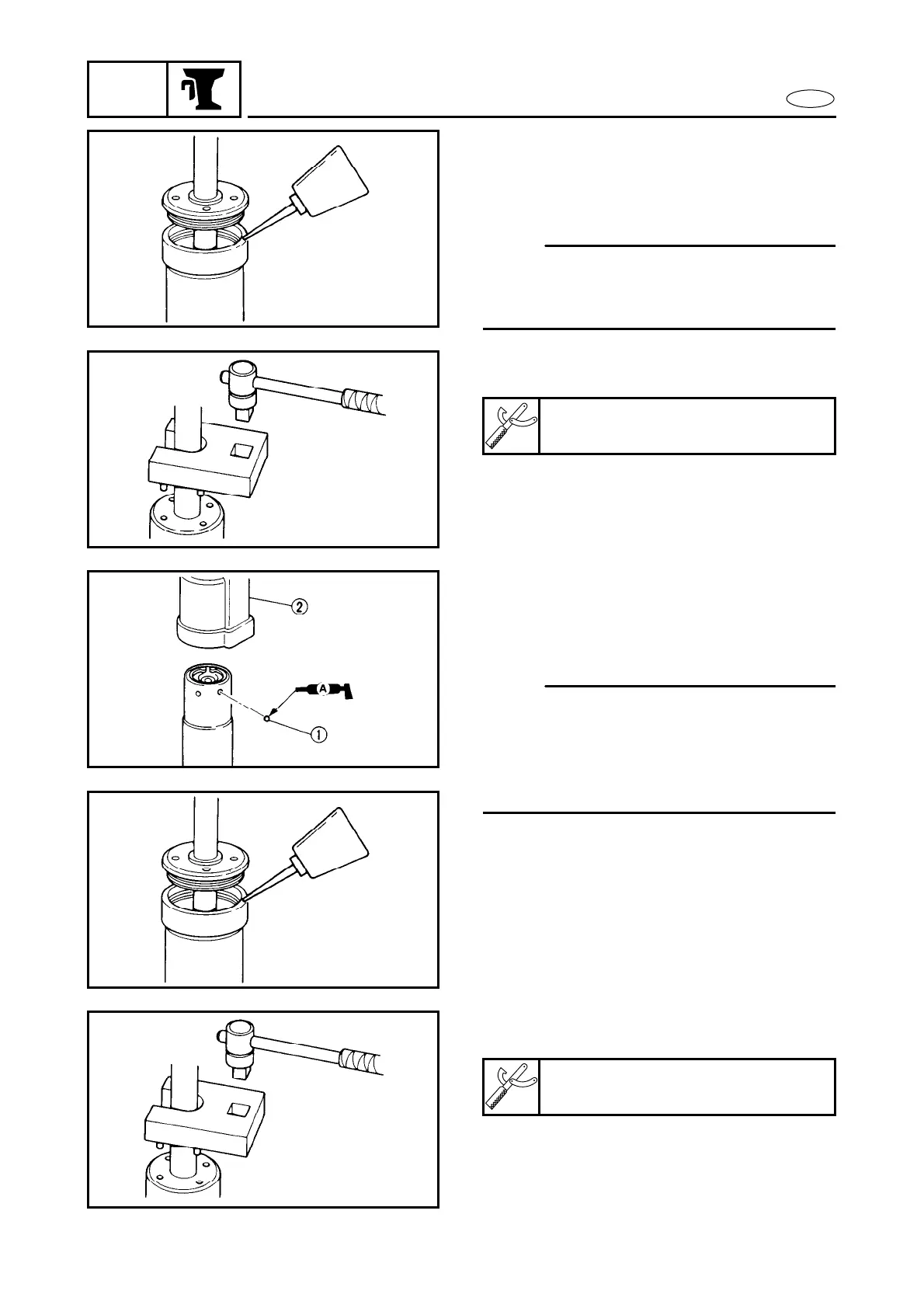

TILT CYLINDER
Inner cylinder assembly
1. Fill:
● ATF (Dexiron type 2)
to inner cylinder.
NOTE:
Depress the tilt rod fully and fill the inner
cylinder with ATF before installing the end
screw.
2. Tighten:
● Inner cylinder end screw
Tilt cylinder wrench:
YB-06175-2B/90890-06544
Tilt cylinder assembly
1. Install:
● Ball 1
● Tilt cylinder 2
NOTE:
● Apply the grease to the balls to prevent
them from falling down.
● To find any ball that may fall, turn the
inner cylinder unit upside down to install
the tilt cylinder.
2. Fill:
● ATF (Dexiron type 2)
to tilt cylinder.
3. Tighten:
● Tilt cylinder end screw
Tilt cylinder wrench:
YB-06175-2B/90890-06544
To Next Page
