Yamaha 40V - Engine Stop Switch

8-13
–+
ELEC
E
IGNITION SYSTEM

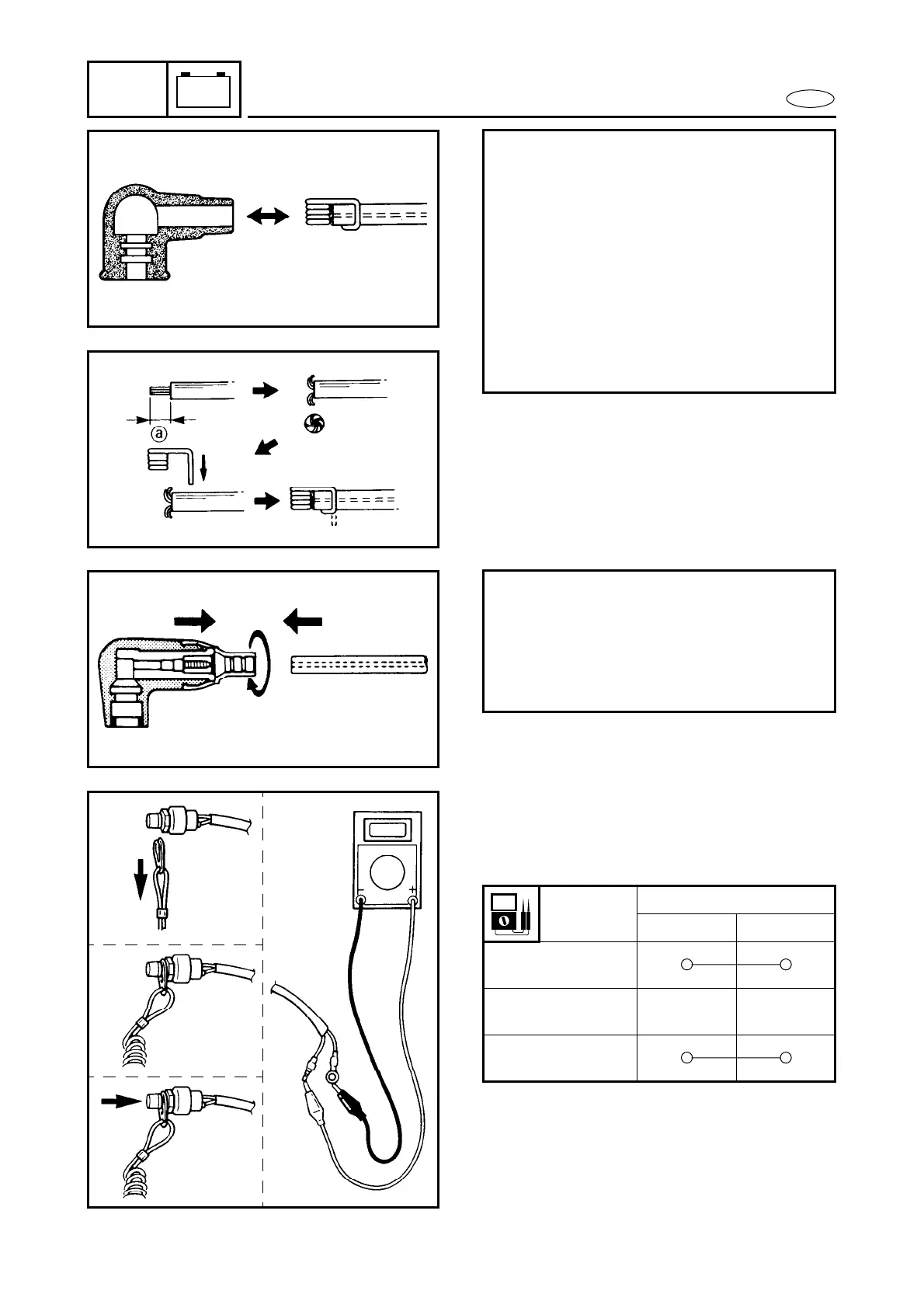

Replacement steps:
(Except for Canada and Europe)
● Remove the spark-plug cap by pulling
the spark-plug cap.
● Remove the plug-cap spring.
● Strip the insulation cover 5 mm (0.2 in)
a and spread the core wires outward.
● Fit the plug-cap spring close to the
spread core wires and bend the spring
end for clamping.
● Install the plug-cap spring into the
spark-plug cap.
Replacement steps:
(For Canada and Europe)
● Remove the spark-plug cap by turning
the cap counterclockwise.
● Install the spark-plug cap by turning
the cap clockwise until it stops.
ENGINE STOP SWITCH
1. Check:
● Continuity
Out of specification → Replace.
Checking leads color
White Black
Remove the
lock-plate Å
Install the
lock-plate ı
Push the button
Ç
Å
ı
Ç
