Yamaha 40V - Whd, Wh, E, Edo, Eo Model

8-3
–+
ELEC
E

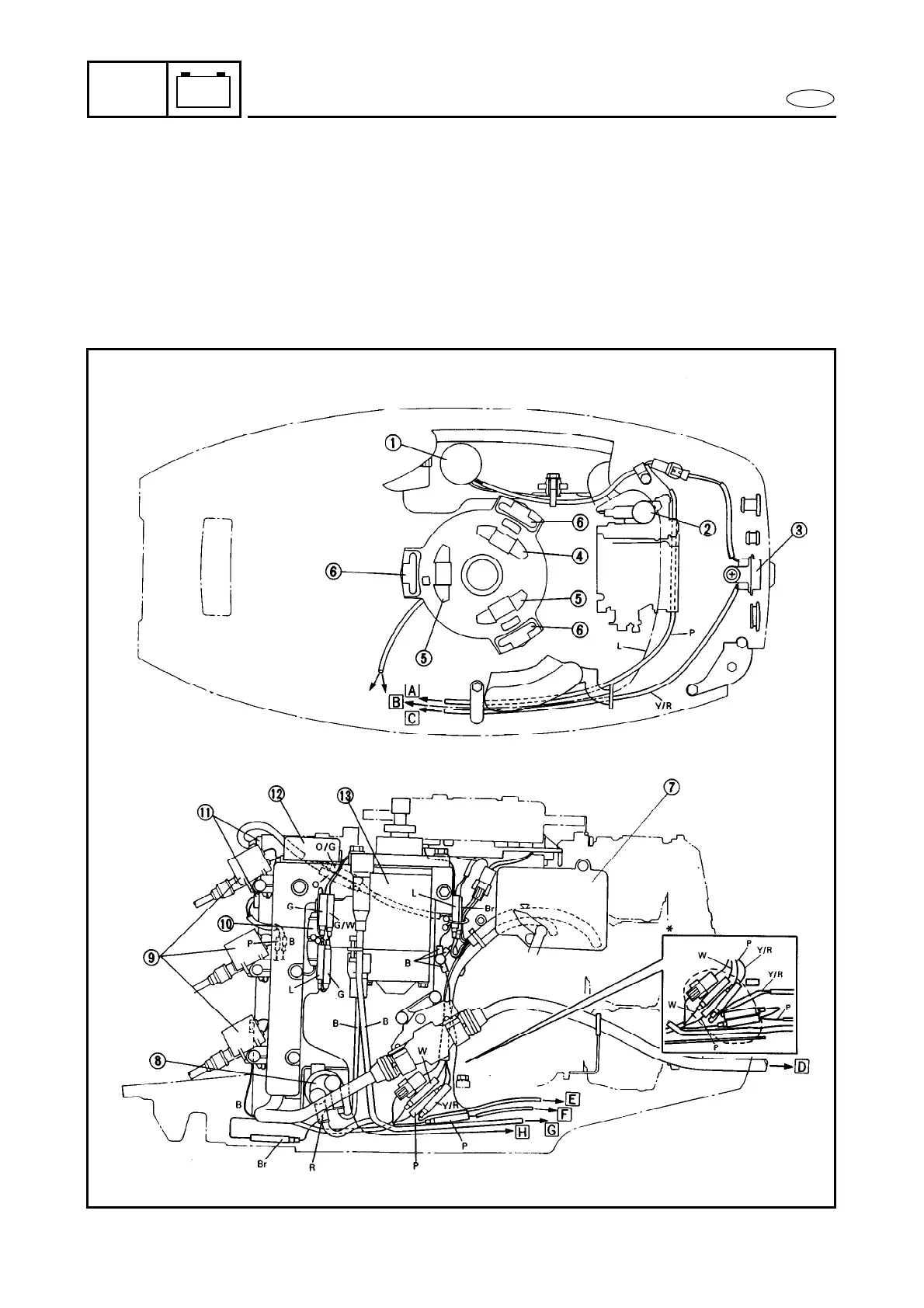

ELECTRICAL COMPONENTS
WHD, WH, E, EDO, EO MODEL
1 Oil level sensor
2 Electrothermal valve
3 Oil level warning lamp
4 Charge coil
5 Lighting coil
6 Pulser coil
7 CDI unit
8 Starter relay
9 Ignition coil
0 Fuse
A Thermo switch
B Rectifier regulator
C Starter motor
B : Black
Br : Brown
B/O : Black/Orange
B/W : Black/White
B/Y : Black/Yellow
L : Blue
O : Orange
O/G : Orange/Green
P : Pink
Y/R : Yellow/Red
W : White
Å To wire harness
ı To 5
Ç To 7
Î To remote control
‰ To 3
Ï To 1
Ì To battery
Ó To 2
*: Single lamp model
