Yamaha 40V - Drive Pawl and Spring Inspection; Rope Roller and Collar Inspection; Bushing Inspection; Sheave Drum Inspection

5-6
POWR
E

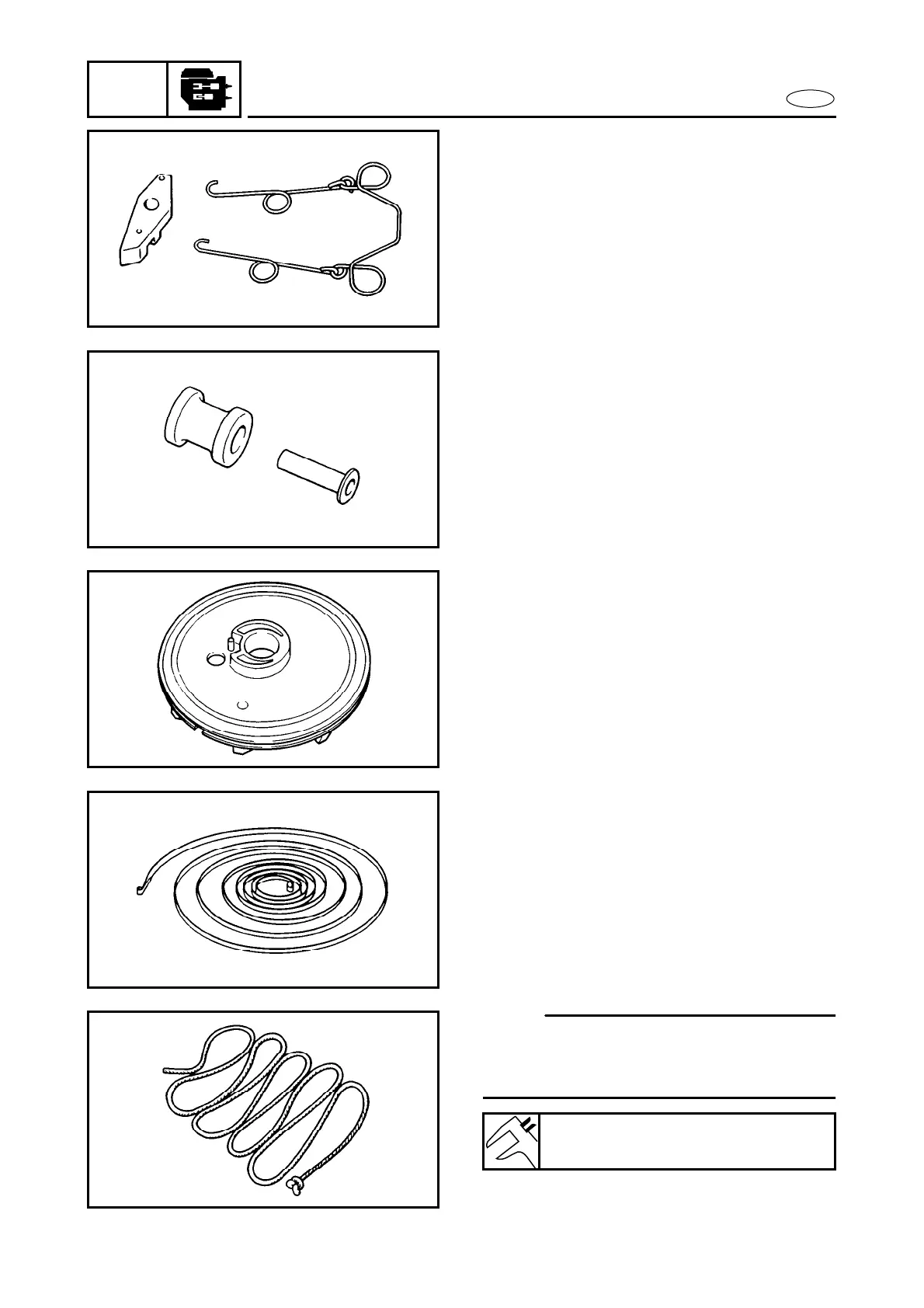

RECOIL STARTER
Drive pawl and spring inspection
1. Inspect:
● Drive pawl
Crack/Wear/Damage → Replace.
● Drive pawl spring
Broken/Bent/Damage → Replace.
Rope roller and collar inspection
1. Inspect:
● Rope roller
● Collar
Crack/Wear/Damage → Replace them
as a set.
Bushing inspection
1. Inspect:
● Bushing
Crack/Damage → Replace.
Sheave drum inspection
1. Inspect:
● Sheave drum
Crack/Damage → Replace.
Spiral spring inspection
1. Inspect:
● Spiral spring
Broken/Bent/Damage → Replace.
Starter rope inspection
1. Inspect:
● Starter rope
Fray/Wear/Damage → Replace.
NOTE:
When replacing the rope, cut it to the speci-
fied length and burn the rope end so that it
will not travel.
Starter rope length:
2,095 mm (82.5 in)
