Yamaha 40V - Starter Relay; Fuse

8-21
–+
ELEC
E
STARTING SYSTEM
STARTER RELAY
1. Inspect:
● Brown lead terminal
● Black lead terminal
Loose → Tighten.
2. Check:
● Relay operation
Does not function → Replace.

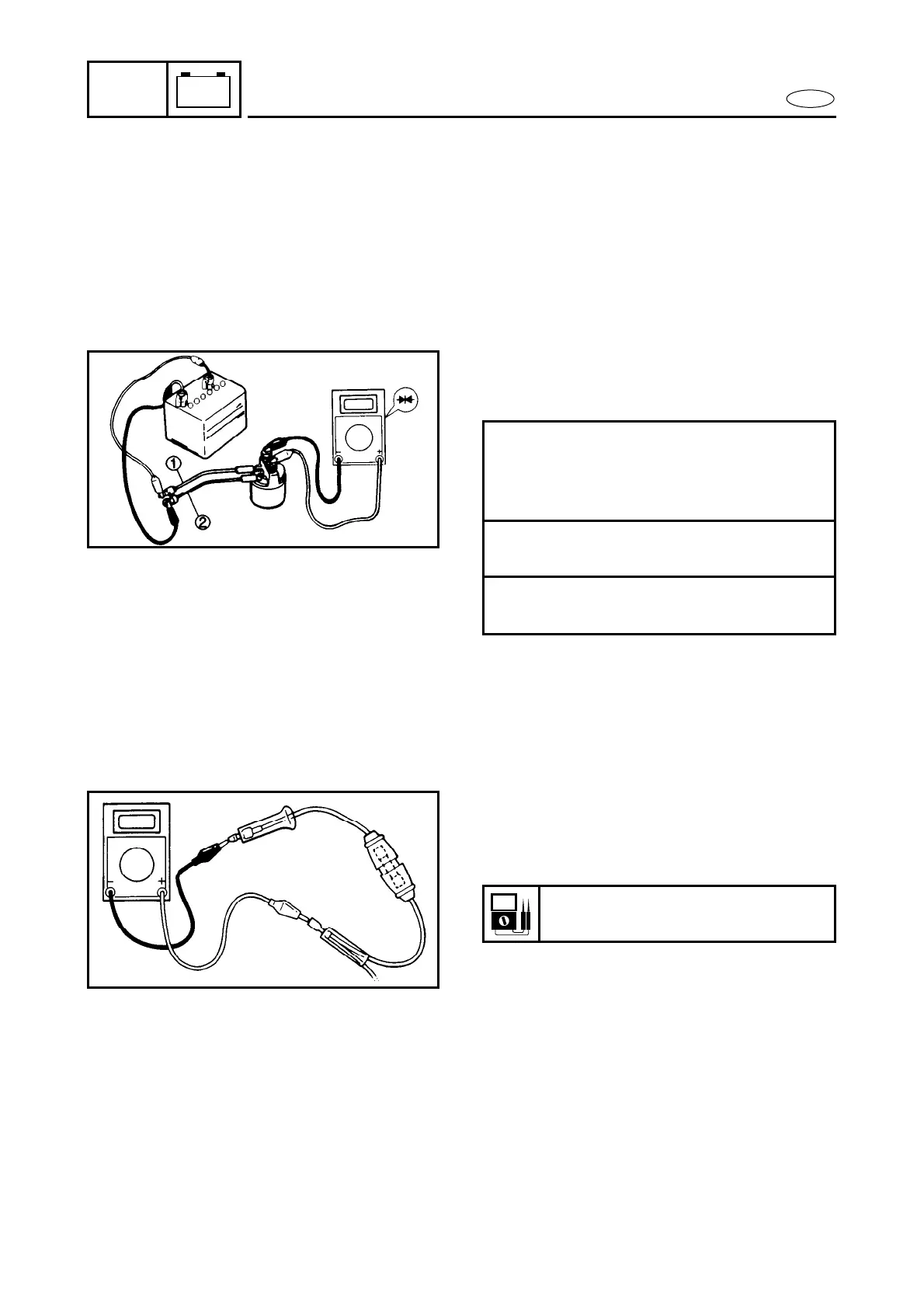

Checking steps:
● Connect the tester between the termi-
nals of the starter relay as shown.
● Connect a 12 V battery.
Brown lead 1 → Positive terminal
Black lead 2 → Negative terminal
● Check that there is continuity between
the starter relay terminals.
FUSE
1. Check:
● Fuse
Blown → Replace.
Fuse rating:
12 V - 10 A
