Yamaha 40V - Starter Rope Installation; Sheave Drum Installation; Spiral Spring Setting; Recoil Starter Checking

5-7
POWR
E

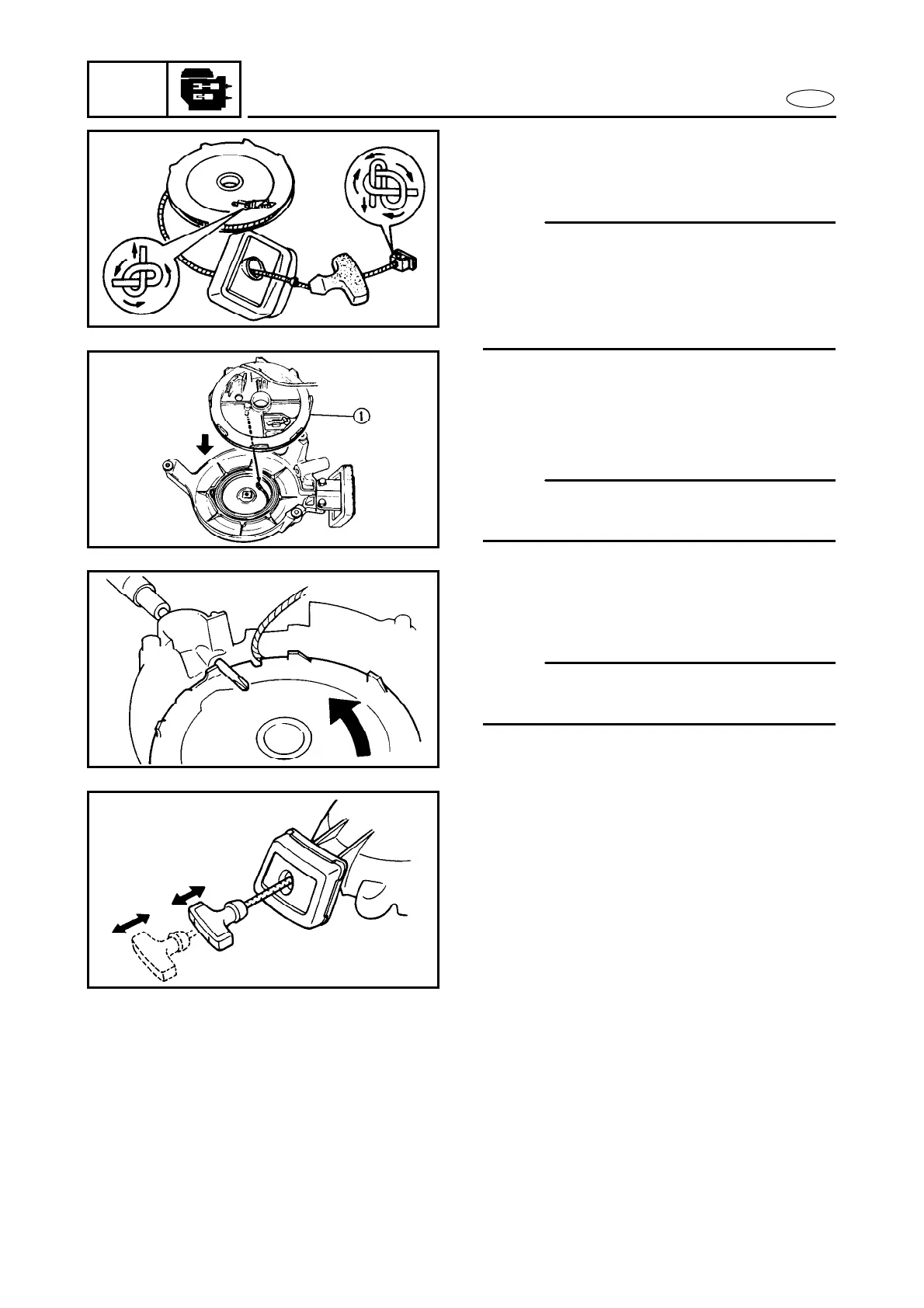

RECOIL STARTER
Starter rope installation
1. Install:
● Starter rope
NOTE:
● Insert the rope through the rope holes and
knot the end.
● Wind the rope 1-9/10 turns around the
sheave drum.
● Place the rope at the cutaway.
Sheave drum installation
1. Install:
● Sheave drum 1
NOTE:
Position the inner end of the spiral spring
on the retainer post of the sheave drum.
Spiral spring setting
1. Set:
● Spiral spring
NOTE:
Wind up the spring 2-1/2 turns counter-
clockwise with the starter rope.
Recoil starter checking
1. Check:
● Starter operation
Unsmooth operation → Repair.
