3-4
INSP
ADJ
E
CONTROL SYSTEM
3. Check:
●
Throttle operation
Unsmooth operation
→
Repair.
●

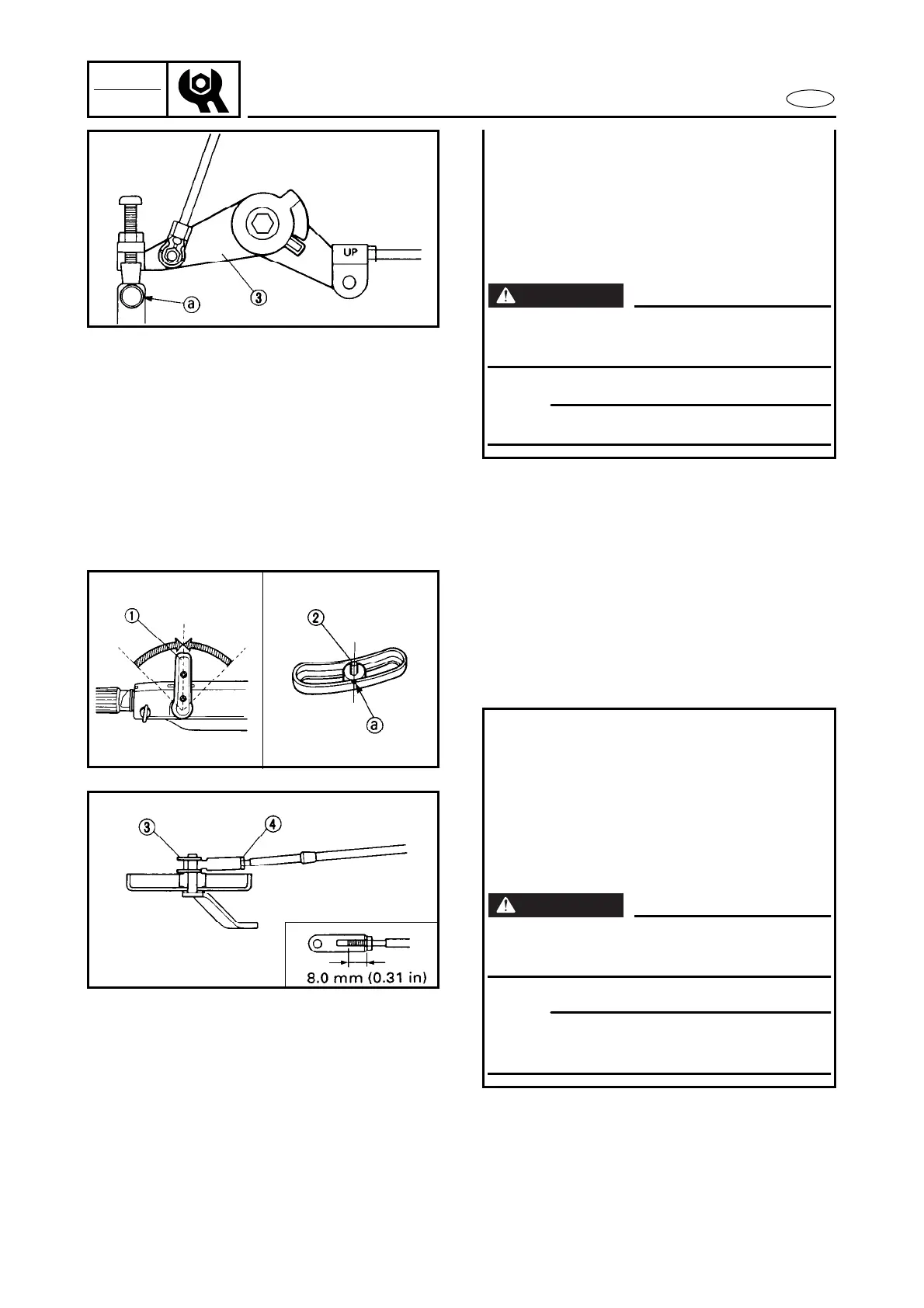

Turn the magneto control lever
3
so
that its adjusting screw contacts the
full retarding stopper
a
.
●
Adjust the position of the cable joint
until its hole aligns with the set pin.
●
Install the clip and tighten the lock nut.
WARNING
The cable joint should be screwed in more
than 8 mm (0.31 in).
NOTE:
Put the “UP” mark upward.
Shift cable adjustment
1. Check:
●
Shift operation
Incorrect
→
Adjust.
2. Adjust:
●
Shift cable joint position
3. Check:
●
Shift operation
Unsmooth operation
→
Repair.
Adjustment steps:
●
Set the shift handle
1
in neutral.
●
Align the center of the set pin
2
with
the mark
a
on the bracket.
●
Adjust the position of the cable joint
until its hole aligns with the set pin.
●
Install the clip
3
and tighten the lock
nut
4
.
WARNING
The cable joint should be screwed in more
than 8 mm (0.31 in).
NOTE:
Put the “UP” mark upward (manual starter
model only).
