Yamaha 40V - Et, Eto Model

8-4
–+
ELEC
E

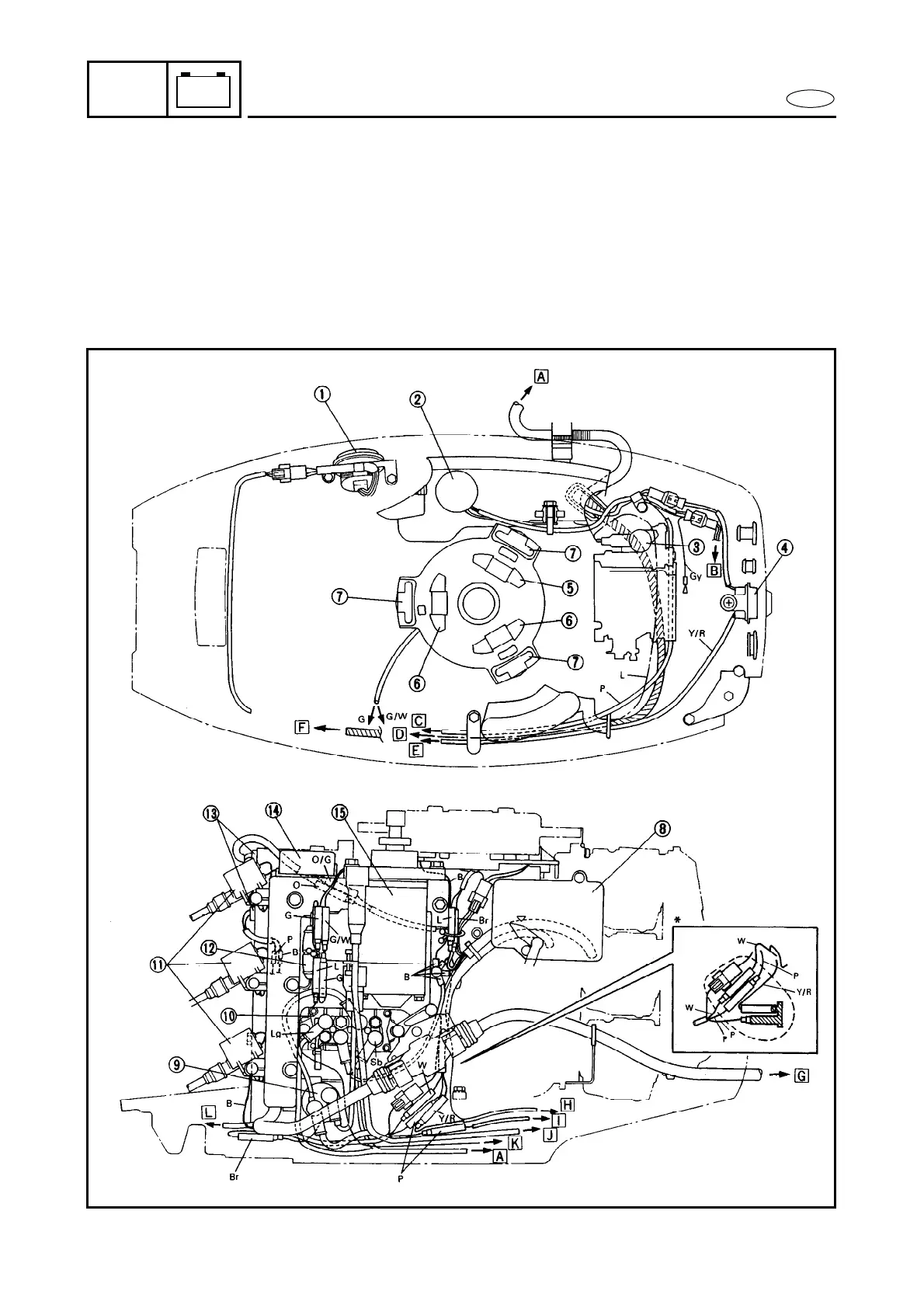

ELECTRICAL COMPONENTS
ET, ETO MODEL
1 P.T.T. switch
2 Oil level sensor
3 Electrothermal valve
4 Oil level warning lamp
5 Charge coil
6 Lighting coil
7 Pulser coil
8 CDI unit
9 Starter relay
0 P.T.T. relay
A Ignition coil
B Fuse
C Thermo switch
D Rectifier regulator
E Starter motor
Å To P.T.T. motor
ı To trim meter
Ç To wire harness
Î To 6
‰ To 8
Ï To 0
Ì To remote control
Ó To 4
È To 2
Ô To battery
 To 3
Ò To 1
*: ET model
B : Black
Br : Brown
B/O : Black/Orange
B/W : Black/White
B/Y : Black/Yellow
L : Blue
Lg : Light green
O : Orange
O/G : Orange/Green
P : Pink
Sb : Sky blue
Y/R : Yellow/Red
W : White
