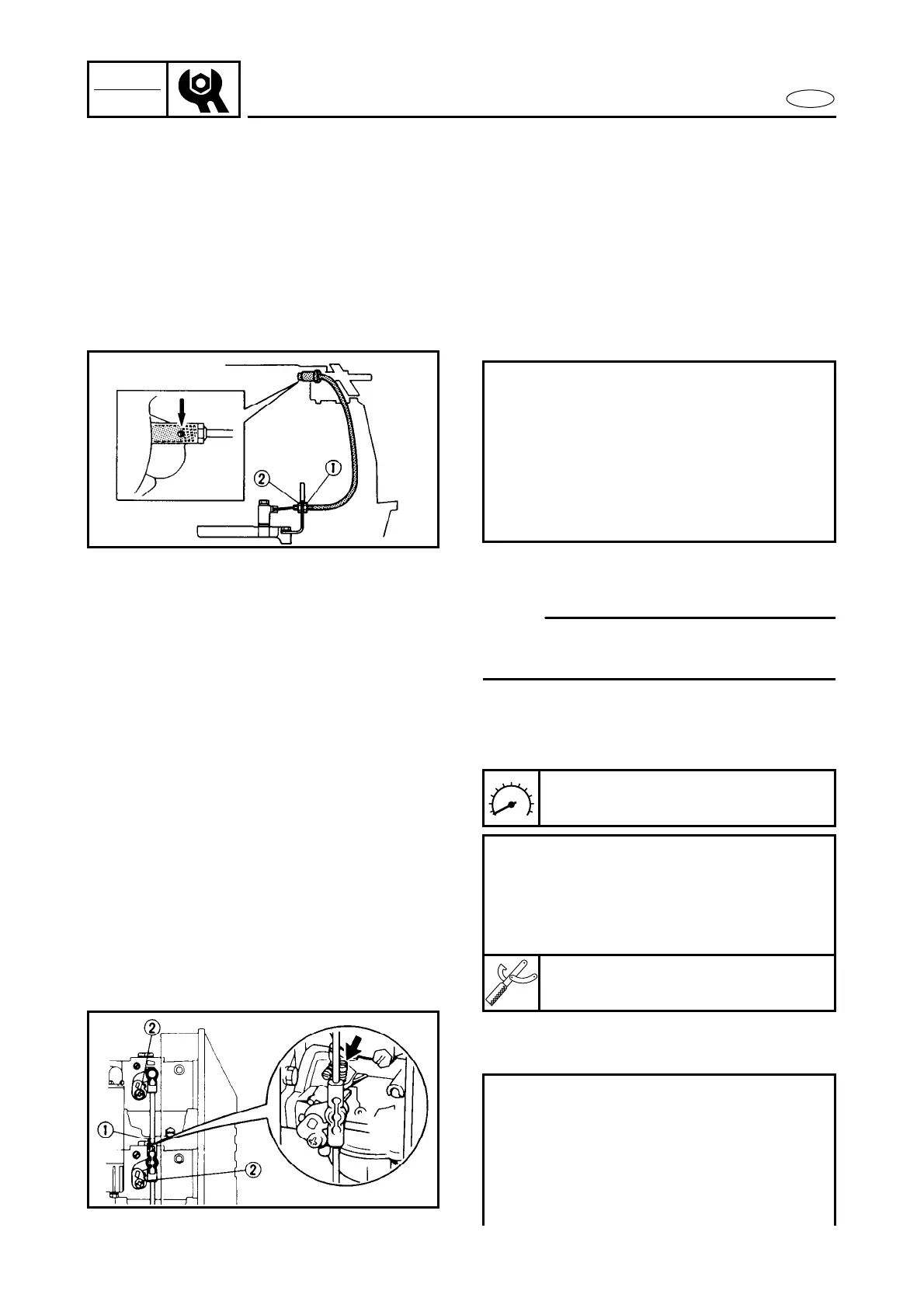

Start-in-gear protection adjustment
1. Check:
● Start-in-gear protection operation
Incorrect → Adjust.
2. Adjust:
● Start-in-gear protection wire
Adjustment steps:
● Set the shift lever in neutral.
● Loosen the lock nut 1.
● Adjust the start-in-gear protection wire
adjust nut 2 so that the end of the
starter stop-plunger aligns with the
center of the hole in the starter case.
● Tighten the lock nut.
Idle speed adjustment
NOTE:
Before adjusting the idle speed, be sure to
adjust the throttle link.
1. Measure:
● Idle speed
Out of specification → Adjust.
2. Adjust:
● Idle speed
Idle speed:
800 ± 50 rpm
Measuring steps:
● Start the engine and allow it to warm
up for a few minutes.
● Attach the tachometer to the high ten-
sion lead of the cylinder #1.
Tachometer:
YU-08036-A/90890-06760
Adjustment steps:
● Loosen the idle adjusting screw 1 and
fully close the throttle valve.
● Loosen the throttle lever securing
screws 2 of upper and middle carbu-
retors by turning the screws clockwise.
