Yamaha 40V - Mh, Mho, Mo, Mdo Model

8-2
–+
ELEC
E

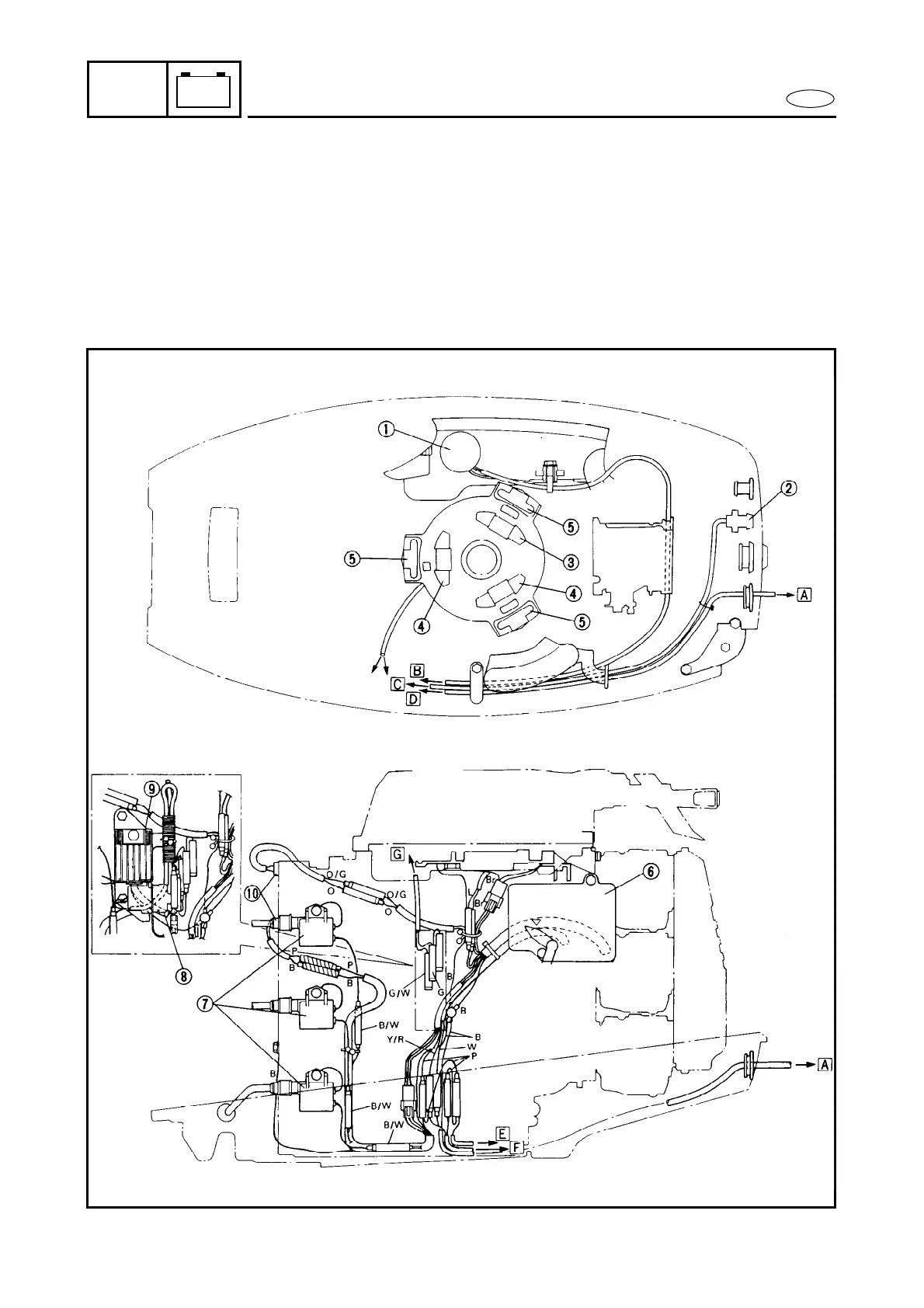

ELECTRICAL COMPONENTS
MH, MHO, MO, MDO MODEL
1 Oil level sensor
2 Warning lamp
3 Charge coil
4 Lighting coil
5 Pulser coil
6 CDI unit
7 Ignition coil
8 2P consent*
9 Rectifier regulator*
0 Thermo switch
Å To engine stop switch
ı To 6
Ç To 6
Î To 6
‰ To 1
Ï To 2
Ì To 4
*: Europe model
B : Black
Br : Brown
B/O : Black/Orange
B/W : Black/White
B/Y : Black/Yellow
L : Blue
O : Orange
O/G : Orange/Green
P : Pink
Y/R : Yellow/Red
W : White
