FUEL SYSTEM/CONTROL SYSTEM
PERIODIC SERVICE

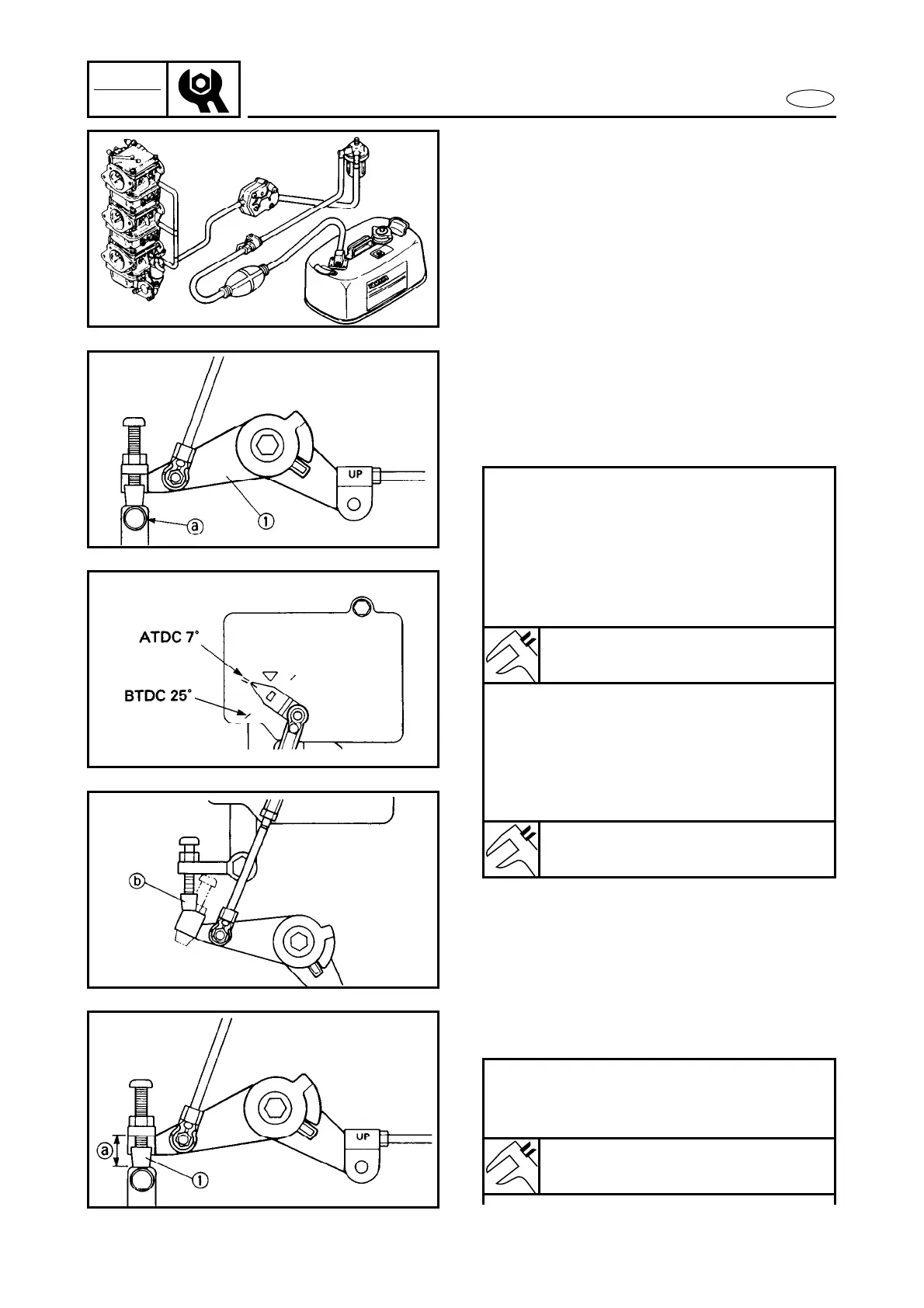

FUEL SYSTEM
Fuel line
1. Inspect:
●
Fuel line
Break/Leak/Damage
→
Replace.
CONTROL SYSTEM
Throttle link adjustment
1. Check:
●
CDI unit indicator
Incorrect
→
Adjust.
Checking steps:
●
Turn the magneto control lever
1
so
that its adjusting screw contacts the
full retarding stopper
a
.
●
Check the CDI unit indicator so that it
aligns with the specified marking on
the plate.
Full retarded position:
ATDC 7˚
●
Turn the magneto control lever so that
it contacts the full advance adjusting
screw
b
.
●
Check the CDI unit indicator so that it
aligns with specified marking on the
plate.
Full advanced position:
BTDC 25˚
2. Adjust:
●
Ignition timing
Adjustment steps:
●
Adjust the length
a
of the full retard-
ing screw
1
to specification.
Full retarding screw length:
20 mm (0.79 in)
