8-18
–+
ELEC
E
IGNITION CONTROL SYSTEM

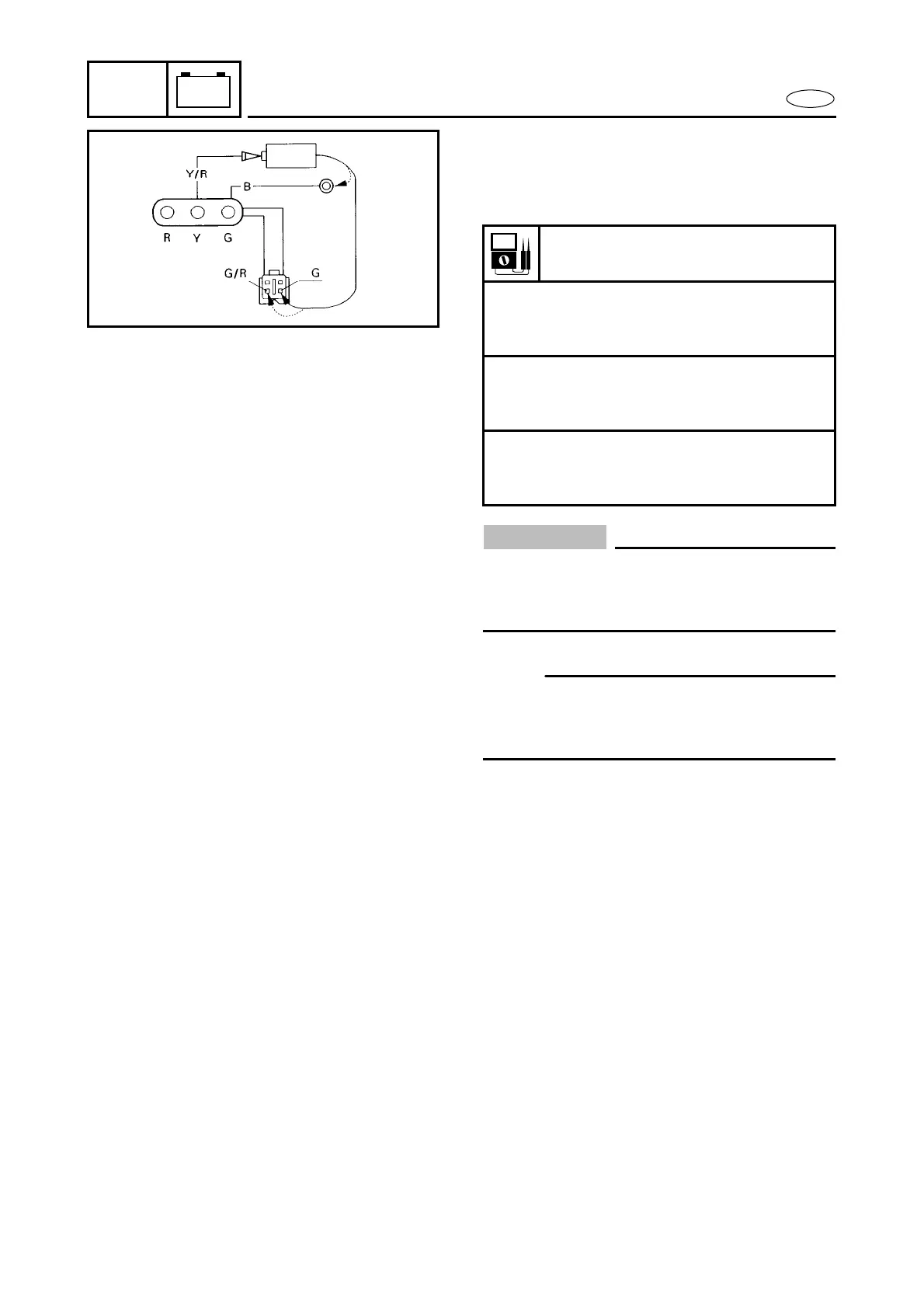

OIL LEVEL WARNING LAMP
1. Check:
● LED (Light emitting diode) lighting
No lighting → Replace.
CAUTION:
Use only ordinally pen light battery (1.5 V),
other than batteries such as alkaline battery
/ higher voltage one will be burnt the diode.
NOTE:
LED has an direction for electrical current.
Therefore try reverse connection if there is
no lighting.
Battery voltage:
1.5 V
Green LED
Yellow/Red lead → Positive terminal.
Green lead → Negative terminal.
Yellow LED
Yellow/Red lead → Positive terminal.
Black lead → Negative terminal.
Red LED
Yellow/Red lead → Positive terminal.
Green/Red lead → Negative terminal.
CDI UNIT
Refer to “IGNITION SYSTEM”.
