Yamaha 40V - Ignition, Starting, and Charging Systems

8-9
–+
ELEC
E

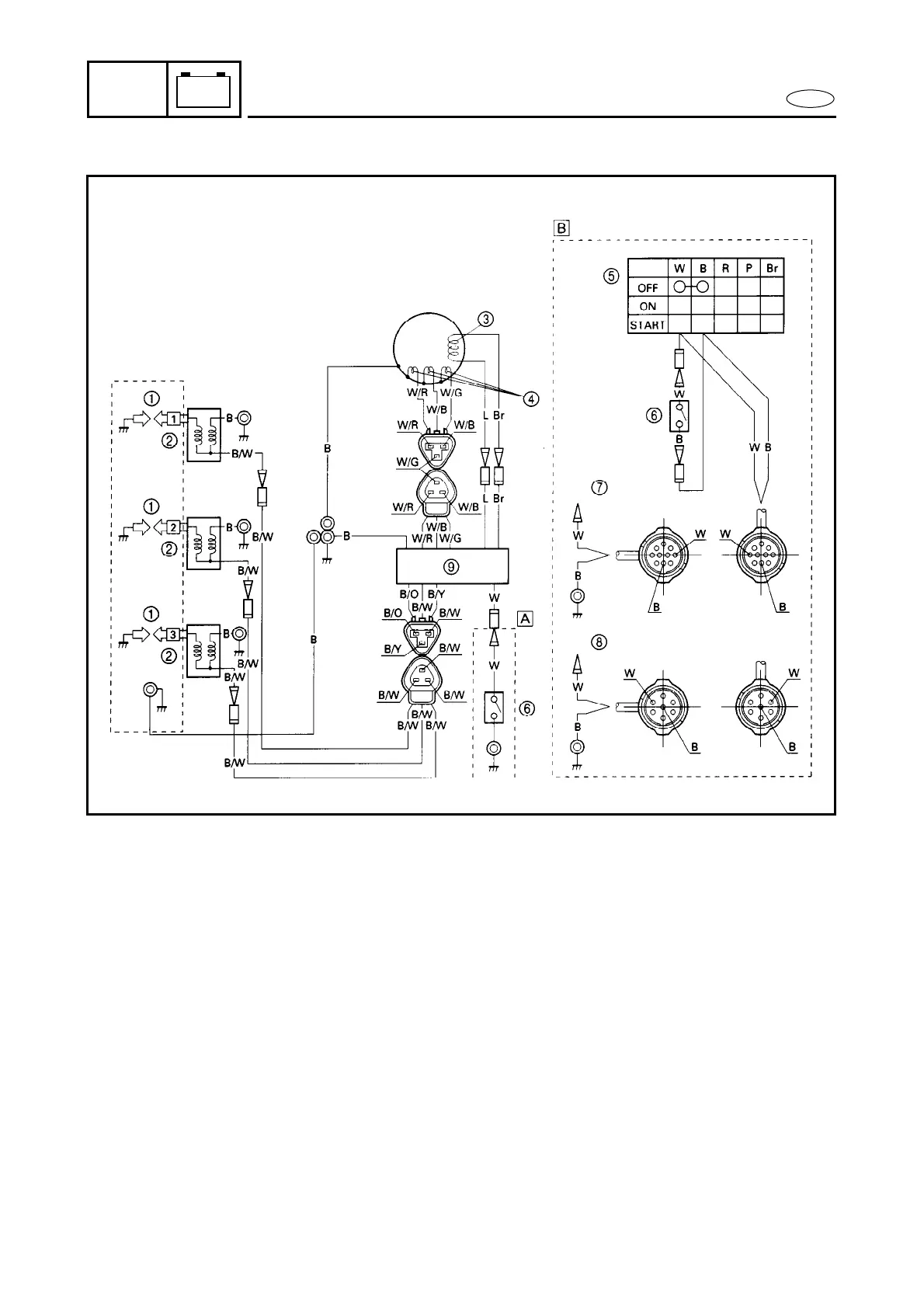

IGNITION SYSTEM
IGNITION SYSTEM
1 Spark plug
2 Ignition coil
3 Charge coil
4 Pulser coil
5 Main switch
6 Engine stop switch
7 10P coupler
8 7P coupler
9 CDI unit
Å Manual starter model
ı Electrical starter model
Br : Brown
L : Blue
W/R : White/Red
W/B : White/Black
W/G : White/Green
B/O : Black/Orange
B/W : Black/White
B/Y : Black/Yellow
W : White
B : Black
