Yamaha 40V - Throttle Cable Adjustment

3-3
INSP
ADJ
E
CONTROL SYSTEM
Throttle cable adjustment
NOTE:
Before adjusting the throttle cable, the
throttle link should be adjusted.
1. Check:
●
Full-open position
Incorrect → Adjust.
2. Adjust:
●
Throttle cable joint position
●

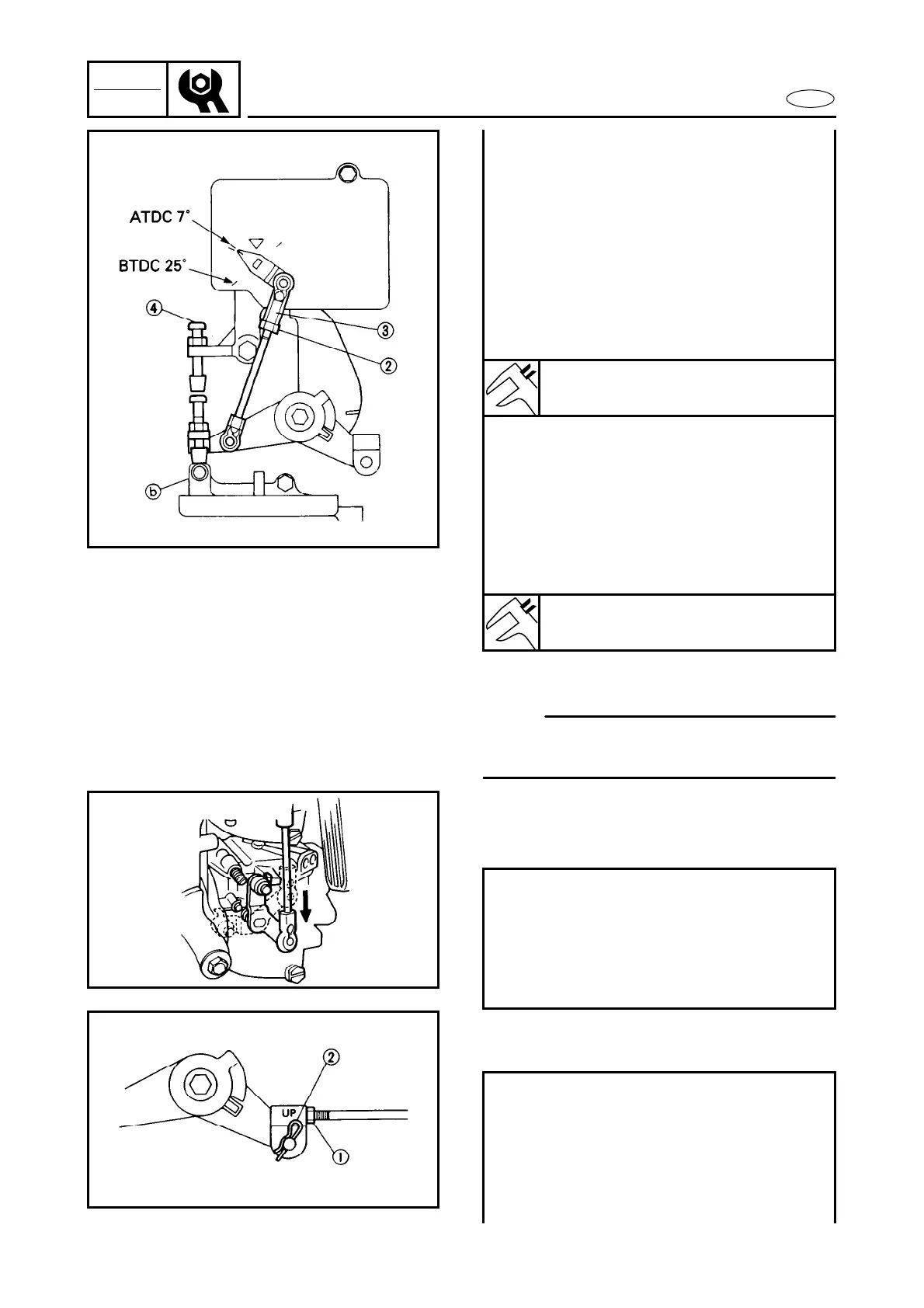

Loosen the lock nut 2 .
●
Disconnect the magneto control rod 3
at the CDI unit.
●
Turn the magneto control lever so that
its adjusting screw contacts the full
retarding stopper b .
● Adjust the magneto control rod length
so that the CDI unit indicator aligns
with the specified marking on the
plate.
Full retarded position:
ATDC 7˚
● Connect the magneto control rod.
●
Turn the magneto control lever so that
it contacts the full advance adjusting
screw 4 .
●
Adjust the full advance adjusting
screw so that the CDI unit indicator
aligns with the specified marking on
the plate.
Full advanced position:
BTDC 25˚
Checking steps:
●
Set the shift lever to the forward posi-
tion.
●
Open the throttle grip fully.
●
Check the throttle valve lever so that it
contacts the full opening stopper.
Adjustment steps:
●
Loosen the lock nut 1 .
●
Remove the clip 2 .
● Disconnect the cable joint at the mag-
neto control lever.
●
Close the throttle grip fully.
