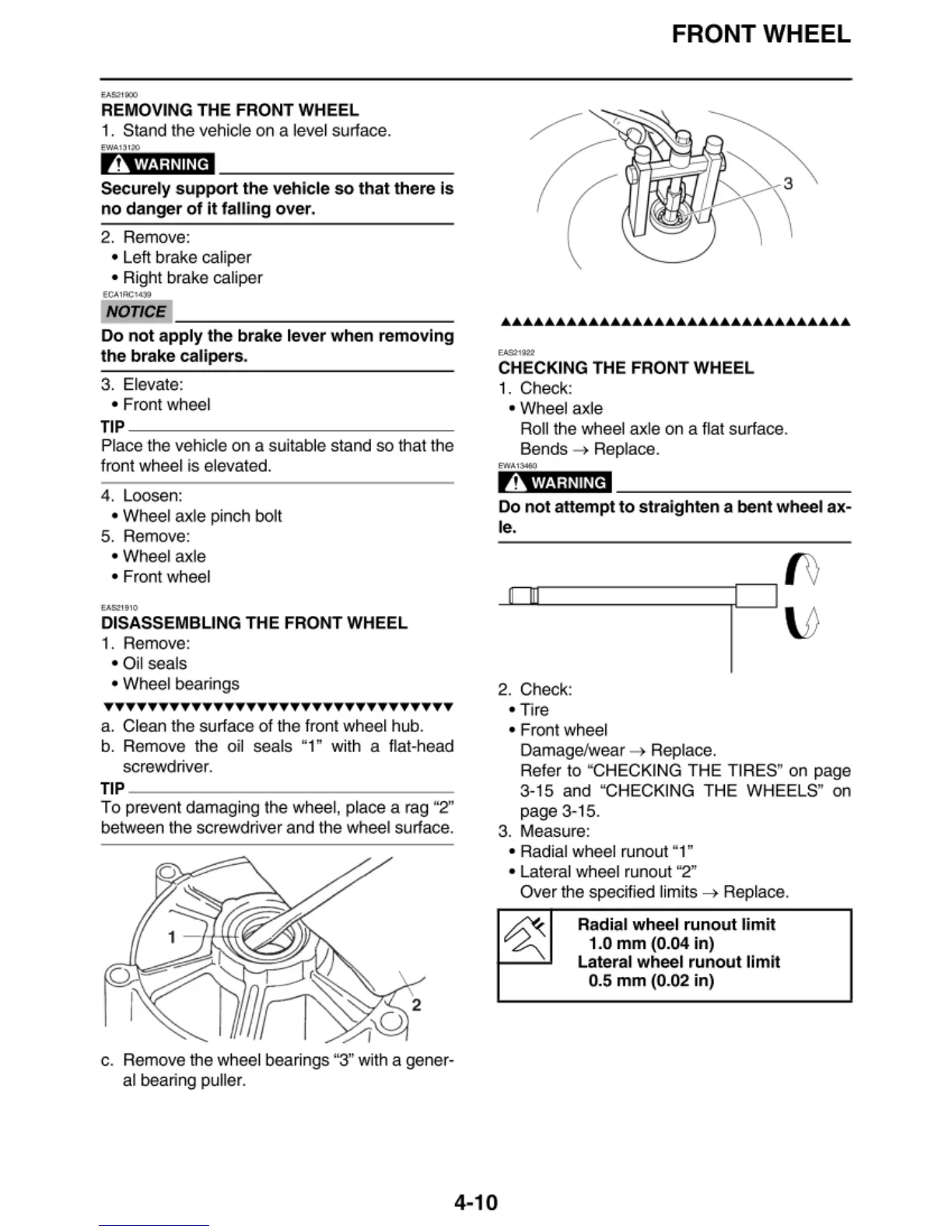

EA$Z1900
REMOVING
THE
FRONT
WHEE
L
1. Stand the vehicle on a level surface.
EWA
t3 1
20
AwARNING
Securely
support
the
vehicle
so
that
there
is
no
danger
of
it
falling
over.
2. Remove:
• Le
ft
bra
ke
caliper
• Right brake caliper
NOTICE
~~~~~~~~~~~~~
Do
not
apply
the
brake
lever
when
removing
the
brake
calipers.
3. Elevate:
• Front wheel
TIP
~~~~~~~~~~~~~~
Place the vehicle
on
a suitable stand so that t
he
front wheel is elevated.
4.
Loosen:
• Wheel axle pinch bolt
5. Remove:
• Wheel axle
• Front wheel
EAS21910
DISASSEMBLING
THE
FRONT
WHEEL
1. Remove:
• O
il
seals
• Wheel bearings
YYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYY
a. Clean the surface of the front wheel h
ub
.
b. Remove the oil seals "1" with a flat-head
sc
rewdriver.
TIP
~~~~~~~~~~~~~~~
To prevent damagi
ng
the wheel, pl
ace
a rag "2"
between the screwdriver
and
the wheel surface.
0
I"'
c. Remove the wheel bearings "3'' with a gener-
al bearing puller.
FRONT WHEEL
....,,..,
CHECKING
THE
FRONT
WHEEL
1. Check:
• Wheel axle
Ro
ll
the wheel axle on a flat surface.
Bends
->
Replace.
EWA13'4&0
AwARNING
Do
not
attemp
t
to
straighten
a
bent
wheel
ax-
le
.
2. Check:
• Tire
• Front wheel
Damage/wear
->
Replace.
Refer to "CHECKING THE TIRES" on page
3
-1
5
and
"CHE
CKING THE WHEELS" on
page 3-15.
3.
Measure:
• Radial wheel ru
no
ut "1"
• Lateral wheel runout
"2"
Over the specified limit
s->
Replace.
Radial
wheel
runout
limit
1.0
mm
(0.
04
in)
Later
al
wheel
runout
llmit
0.5
mm
(0.
02
in)
4-10
