REAR WHEEL

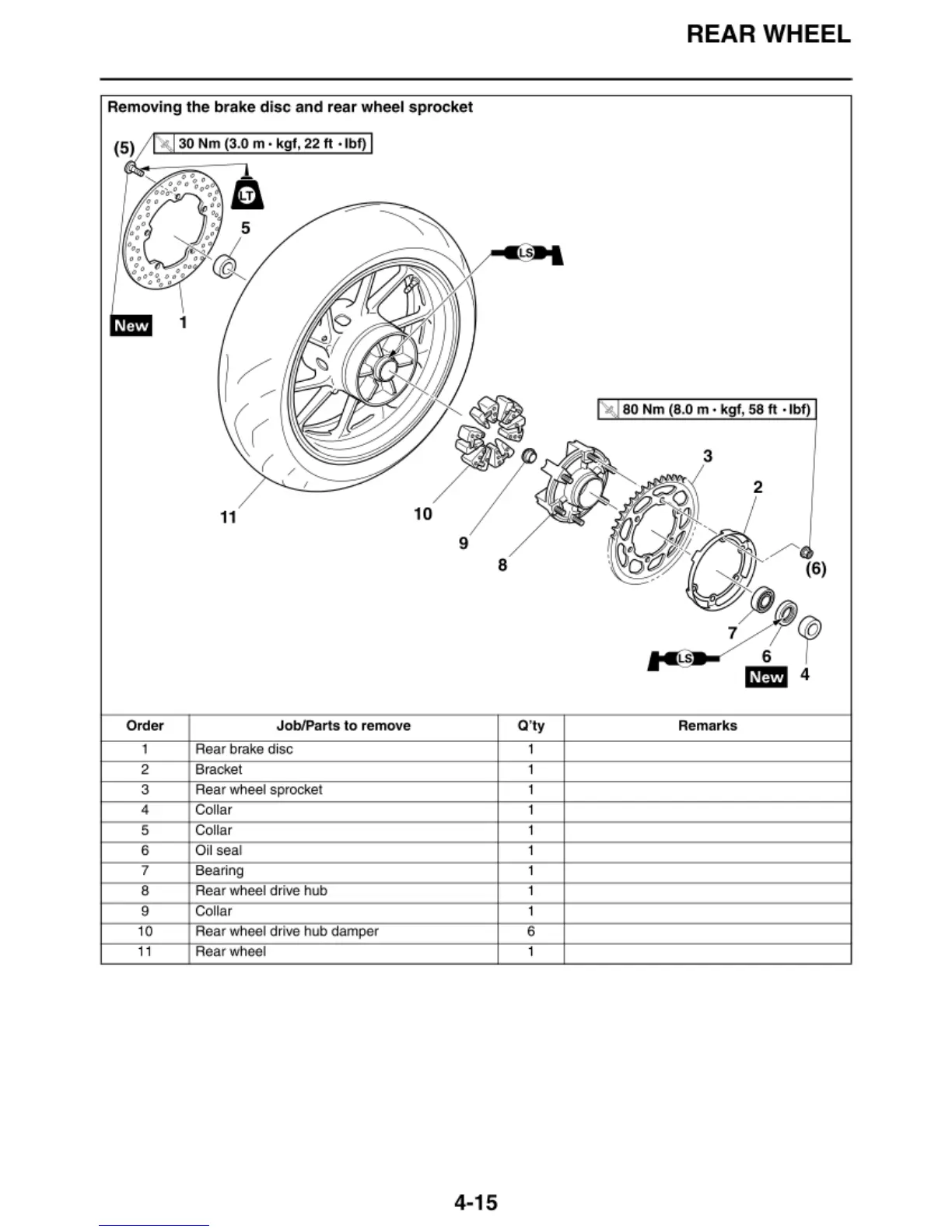

Removing the brake disc and rear wheel sprocket
1
~ 80 Nm (8.0 m • kgf , 58 ft · lb!)
I
2
11
10
4
Order Job/Parts to remove Q'ty Remarks
1 Rear bra ke disc 1
2
Brac ke t 1
3
Rea r wheel sprocket 1
4 Collar 1
5
Collar
1
6
Oil seal
1
7 Bea ri ng 1
8
Rea r wh ee l drive hub
1
9
Collar 1
10
Re ar wheel drive hub d am pe r 6
11 Re ar wheel 1
