REAR WHEEL
,., ,,...,
REAR WHEEL

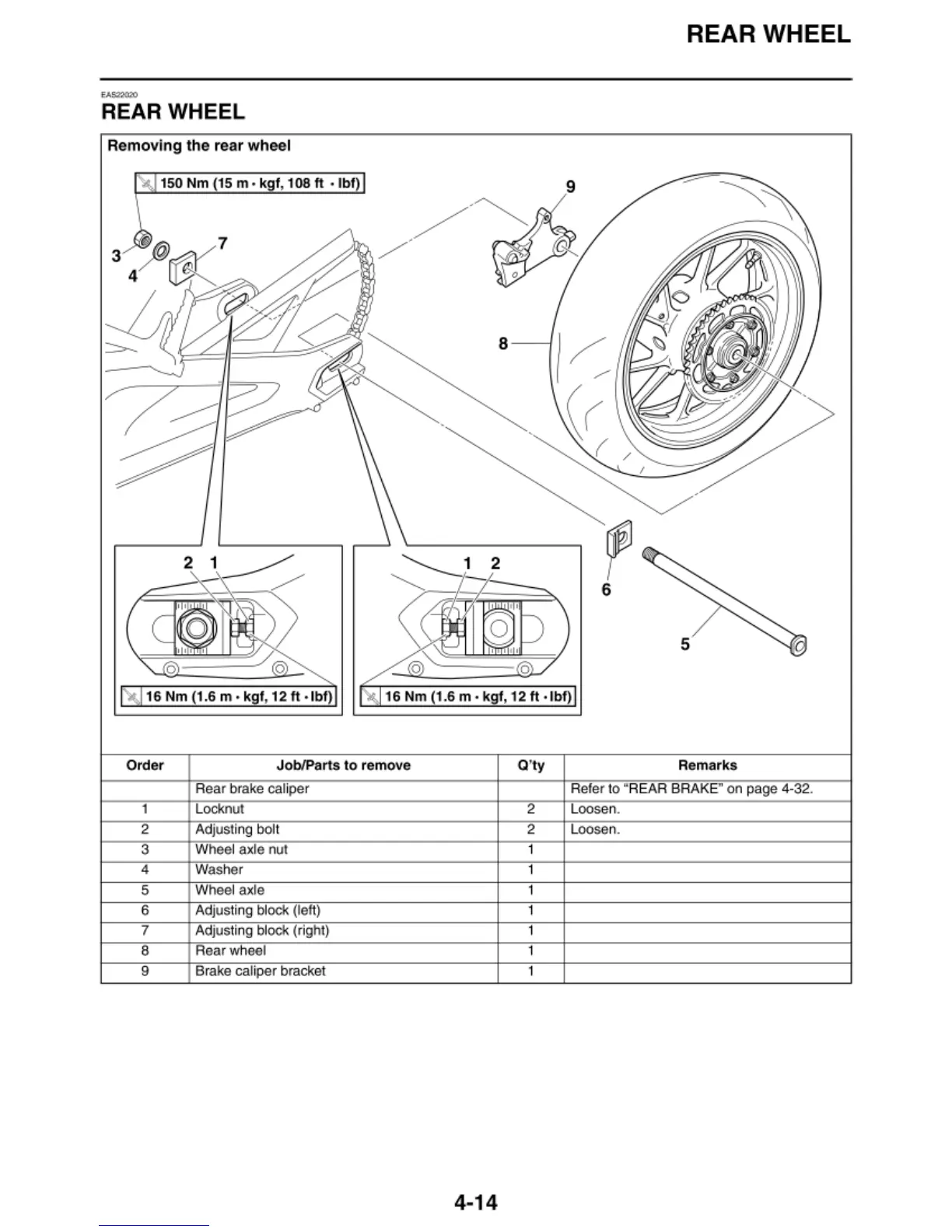

Removing t he rear wheel
150 Nm (15 m • kgl , 1 08 It · l bl)
16 Nm (1 .6 m • kgl , 12 It ·lbl ) 16 Nm (1.6 m • kg l , 12 It · l bl )
Order Job/Par
ts to remo ve Q' ty Remarks
Rear brake caliper Re fer to "REAR BRAK E'" on page 4- 32 .
1 Lock nut 2 Loosen.
2 Adjusting
bo lt 2 Loosen.
3 W
he el axle nut 1
4 W as her 1
5
Wh eel axle 1
6
Adjus tin g block (left) 1
7
Adjus tin g block (r ight) 1
8
Rear wheel 1
9
Brake calip er bracket 1
