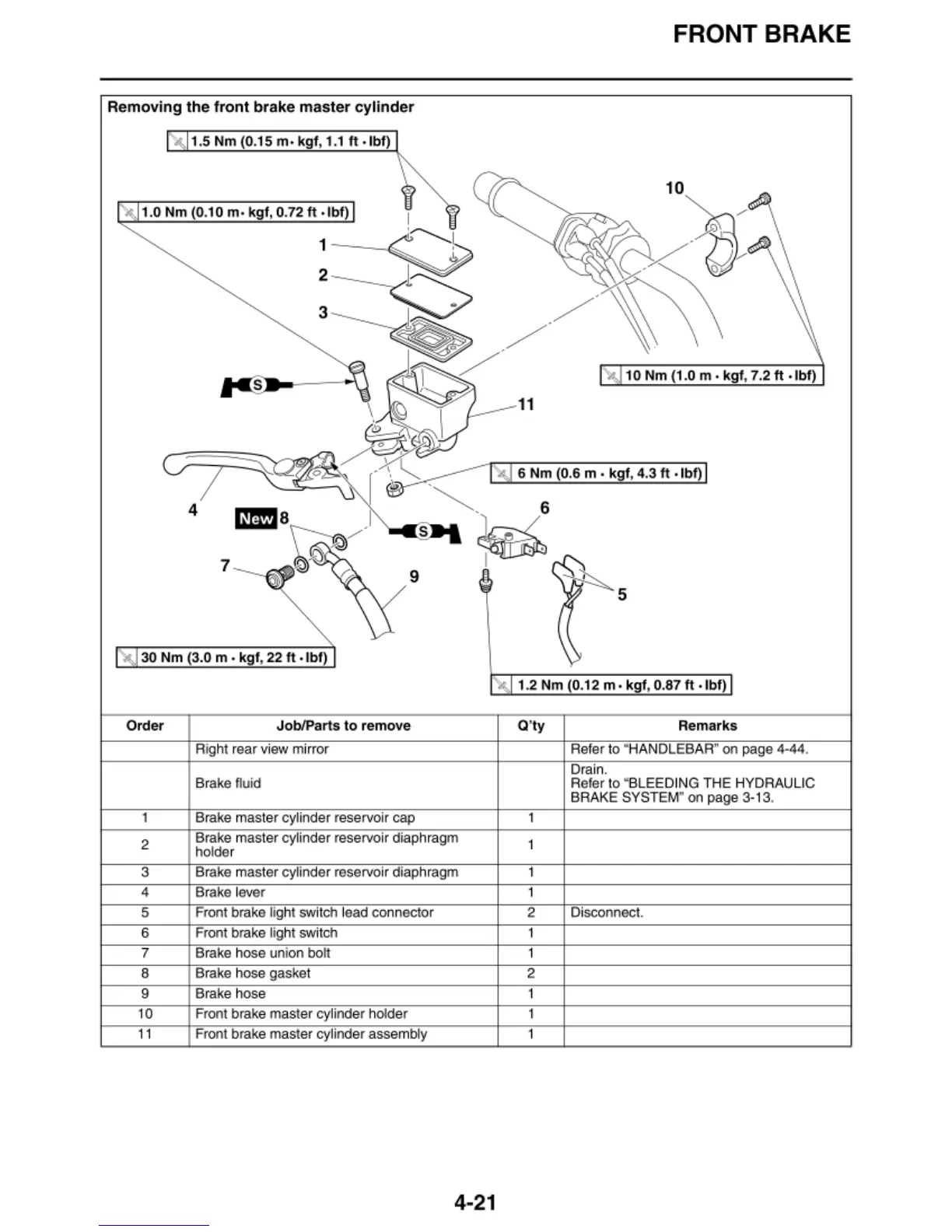

Removing the f ront brake master cylinder
1.5 Nm (0.15 m. kgf , 1.1 ft · lbf)
1.0 Nm (0.10 m· kgf , 0. 72 ft · lbf)
4
9
30 Nm (3.0 m. kgf , 22 ft
0
lbf)
Order
1
2
3
4
5
6
7
8
9
10
11
Job/Parts to remove
Right rear vi e\V m irr or
Brake Hu id
Brake master cylinder reservoir cap
Brake master cylinder reservoir diaphragm
holder
Brake master cylinder reservoir diaphragm
Brake lever
Front brake light switch lead
co nnector
Front brake light switch
Brake hose union bott
Brake hose gasket
Brake hose
Front brake master
cy linder holder
Front brake master
cy linder assembly
FRONT BRAKE
10 Nm (1.0 m. kgf. 7.2 ft -lbf)
~ 6 Nm (0.6 m • kgf , 4.3 ft • lbf)
5
1.2 Nm (0.12 m • kgf , 0.87 ft· lbf)
Q'ty
1
1
1
1
2
1
1
2
1
1
1
Remarks
Refer to "HANOLEBAR" on page 4-44.
Drain.
Refer to "BLEEDING THE HYDRAULIC
BRAKE SY
ST EM' on page 3 -1 3.
Disconnect.
