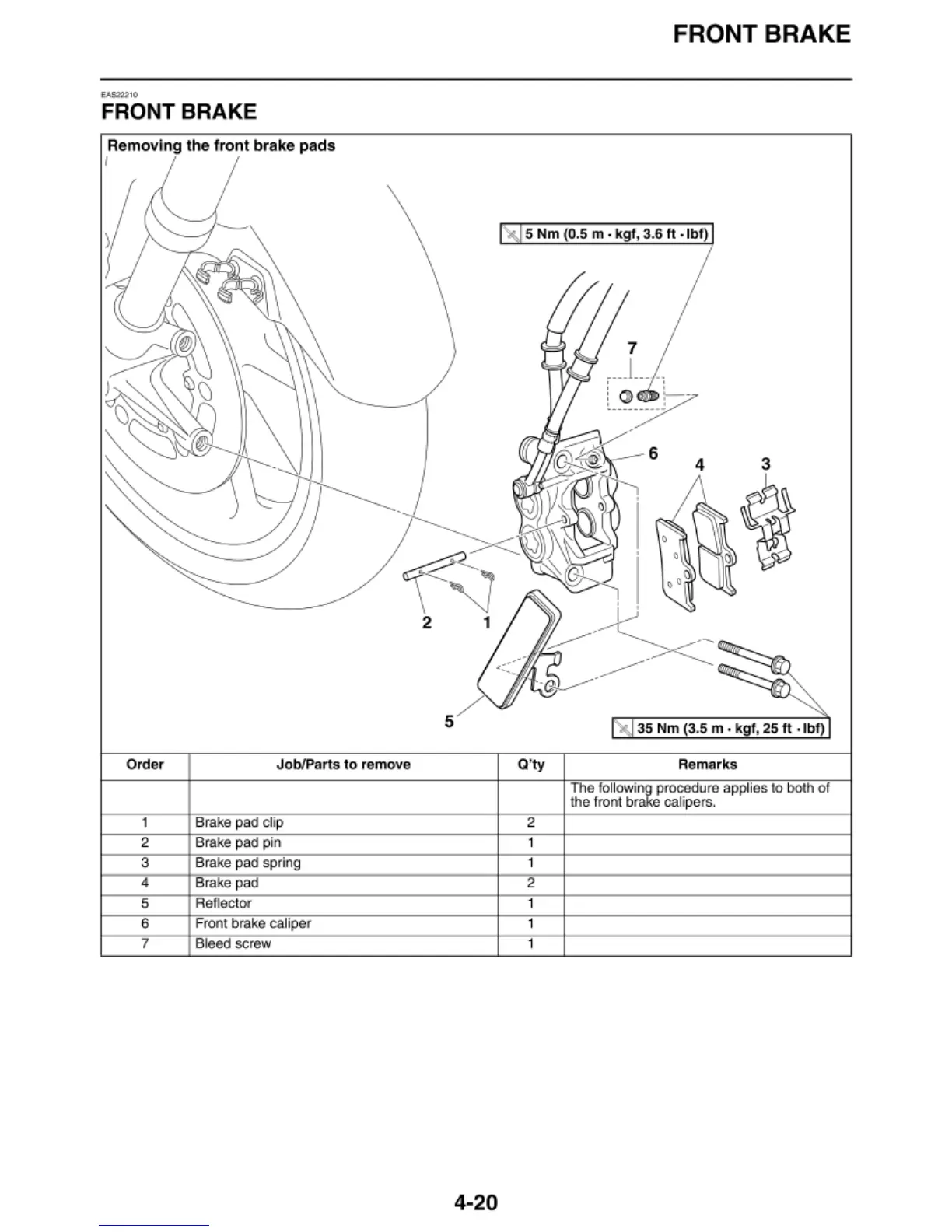

FRONT BRAKE
Removing the front brake pa ds
I
Order Job/Parts to remove
1
Brake pad clip
2
Brake pad pin
3 Brake pad spring
4
Brake pad
5 Reflector
6 Front brake caliper
7 Bleed screw
4-20
FRONT BRAKE
'II, 5 Nm (0.5 m . kgl , 3.6 It· lbl)
Q' ty
2
1
1
2
1
1
1
7
... J ___ --
' '
[__ ~ ?
4 3
'II, 35 Nm (3 .5 m - k gl , 2511 - lbl)
Remarks
The followi ng procedure applies to both of
the front brake
ca lipers.
