I
2. Check:
•
Rear
brake disc
Refer to "CHECKING
TH
E REAR BRAKE
DISC"
on
page 4-38.
3.
Lubricate:
• O
il
seal
li
ps
Recommended
lubricant
1--.a
Lithium
-soap-based
grease
4.
Install:
• Collars
• Brake
ca
liper bracket
•
Rear
wheel
• Adjusting blocks
• Wheel axle
• Washer
• Wheel axle nut
TIP
--------------
•
Do
not
insta
ll
the brake caliper.
• Align t
he
projection "a" in the swingarm with the
slot "b"
of
the brake caliper bracket.
• Install the adjusting block
so
that projection "c"
faces to t
he
front of the vehicle.

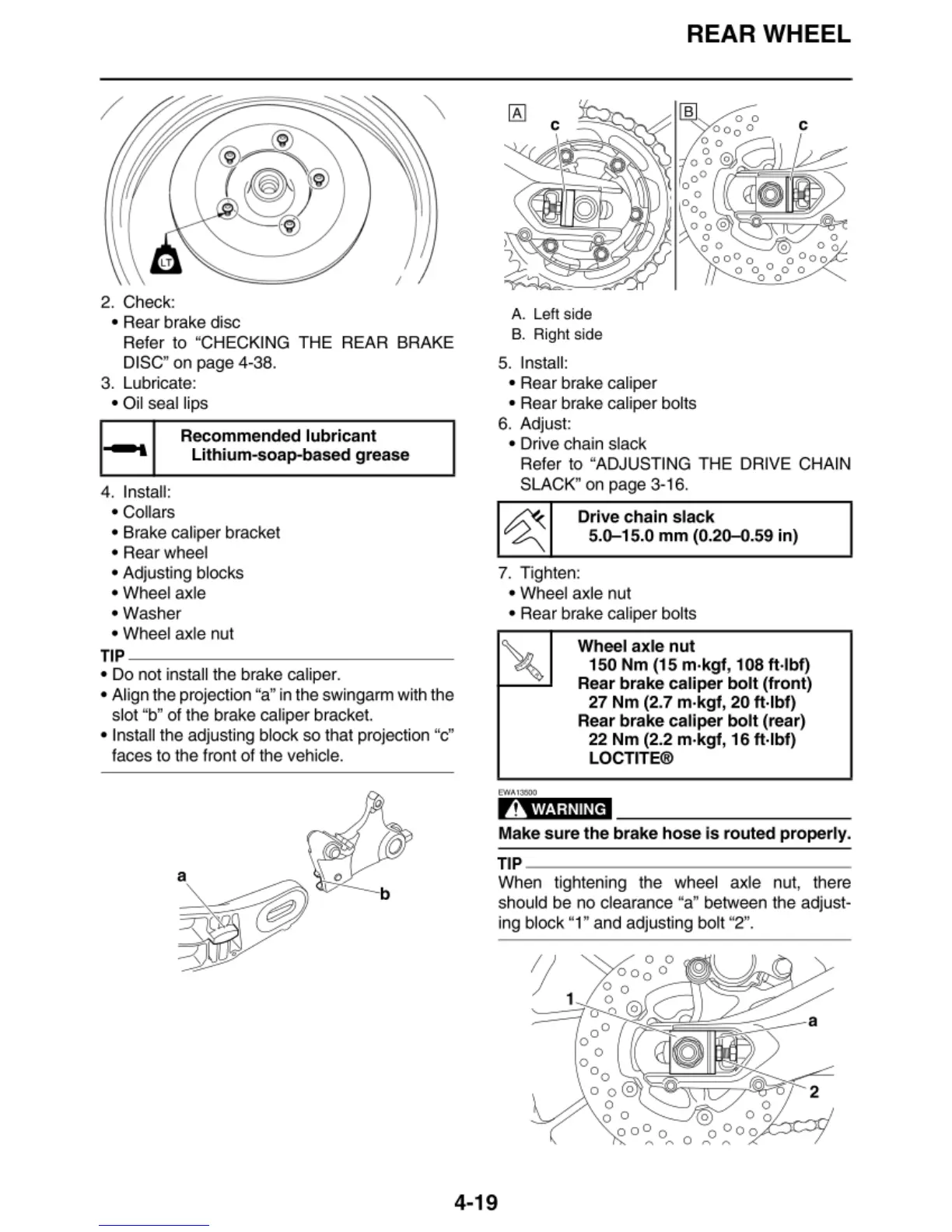

REAR WHEEL
A. Left si
de
B. Ri
gh
t side
5. Insta
ll
:
• Rear brake caliper
• Rear brake caliper bolts
6. Adjust:
• Dri
ve
chain slack
Refer
to
"ADJUSTING THE DRIVE CHAIN
SLACK" on page 3-16.
Drive
chain
slack
5.0-15.0
mm
(0.20-0.59
in
)
7.
Tighten:
• Wheel axle nut
• Rear brake caliper
bo
lts
Wheel
axle
nut
1
50
Nm
(15 m·
kgf
,
108
ft
·l
bf)
Rear
brake
caliper
bolt
(
front)
27
Nm
(2.7 m·kgf,
20
ft·lbf)
Rear
brake
caliper
bolt
(rear)
22
Nm
(2.2 m·kgf,
16
ft·lbf)
LOCTITE®
AwARN
I
NG
Make
sure
the
brake
hose
is
routed
properly
.
TIP
--------------
When tightening the wheel axle nut, there
should be no clearance "a" between t
he
adjust-
ing block "1" and adjusting bolt "2".
00
0
0
00
0
0 0 0
0
0 0
00°
o
"'
,....
0
......
,...
4-19
