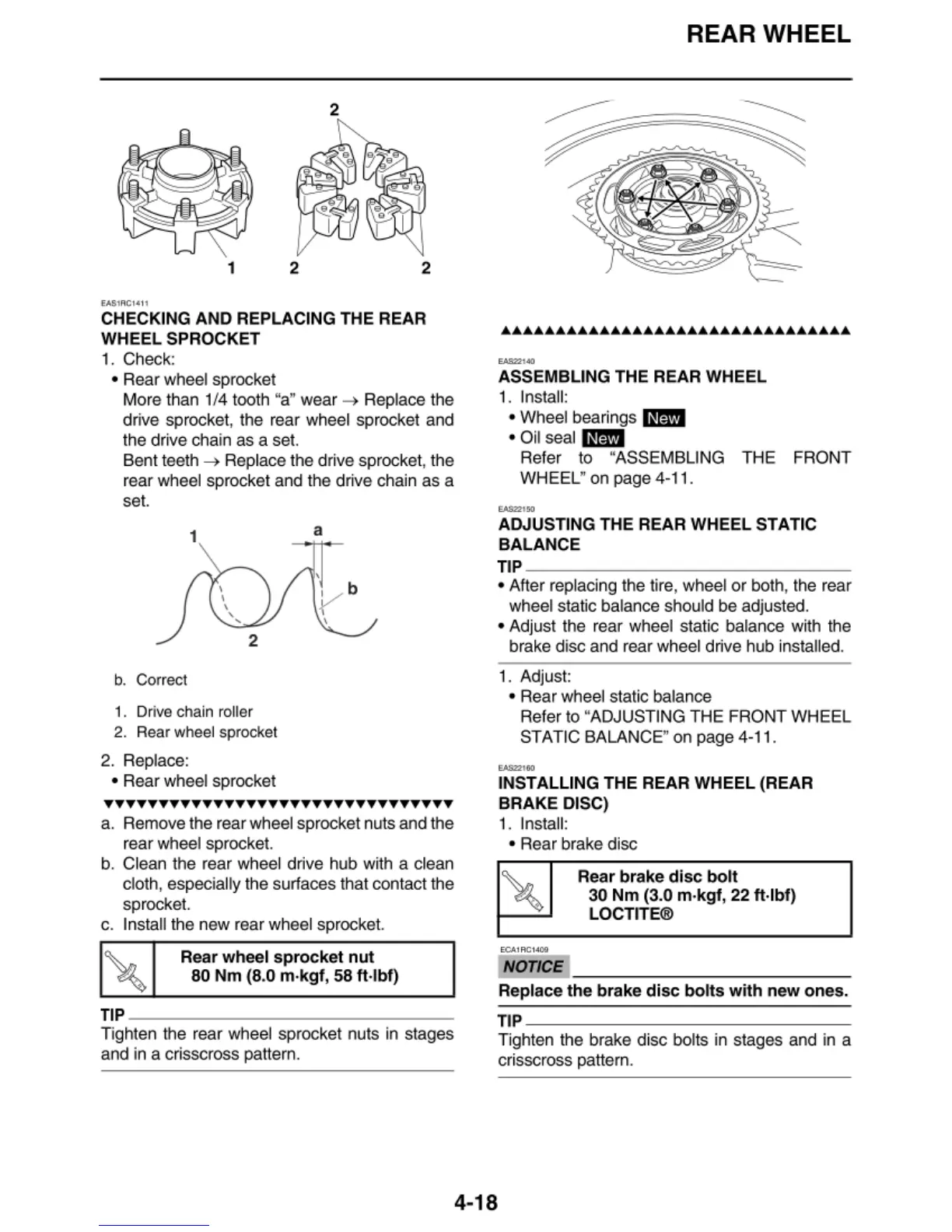

CHECKING
AND
REPLACING THE REAR
WHEEL SPROCKET
1. Check:
• Rear wheel sprocket
More than
1/4 tooth "a" wear 4 Replace t
he
drive sprocket, the rear wheel sprocket and
the drive chain as a set.
Bent teeth
4 R
ep
lace the drive sprocket, the
rear wheel sprocket and the drive chain
as
a
set.
1
b.
Correct
I
I
\
',
2
1.
Dr
i
ve
cha
in
roll
er
2.
Rea
r
whee
l
sprocke
t
2. Replace:
• Rear wheel sprocket
a
••••••••••••••••••••••••••••••••
a. Remove the rear wheel sprocket nuts and the
rear wheel sprocket.
b. Clean the rear wheel drive hub with a clean
cloth, especially the surfaces th
at
contact the
sprocket.
c. Install the new rear wheel sprocke
t.
Rear wheel
sp
rock
et
nu
t
80
Nm
(8.0 m·kgf, 58 ft·lbf)
TIP
~~~~~~~~~~~~~~~
Tighten the rear wheel sprocket nuts in stages
and in a
cr
isscross pattern.
REAR
WHEEL
ASSEMBLING THE REAR WHEEL
1.
Insta
ll
:
• Wheel bearings
l@IM
• Oil s
eal
lllM
Refer to "ASSEMBLING THE FRONT
WHEE
L"
on
page 4-11.
,,
.•
,
..
,.
ADJUSTING THE REAR WHEEL STATIC
BALANCE
TIP
~~~~~~~~~~~~~~~
• Alter repl
ac
ing the tire, wh
ee
l
or
both, the rear
wheel static
ba
lance should be adjust
ed.
• Adjust the rear wheel static balance with the
brake disc and rear wheel
dr
ive hub installed.
1.
Adjust:
• Rear wheel static balance
Refer to "ADJUSTING THE FRONT WHEEL
ST A TIC BALANCE"
on
page 4-
11
.
,,
.• ,
....
INSTALLING THE REAR WHEEL (REAR
BRAKE DISC)
1.
Insta
ll
:
• Rear brake disc
NOTICE
Rear brake
disc
bolt
30
Nm
(3.0
m·kgf,
22
ft·lbf)
LOCTITE®
Replace
th
e brake
disc
bolts
with
new
ones.
TIP
~~~~~~~~~~~~~~
Tighten the brake disc bolts in stages and in a
cr
isscross pattern.
4-18
