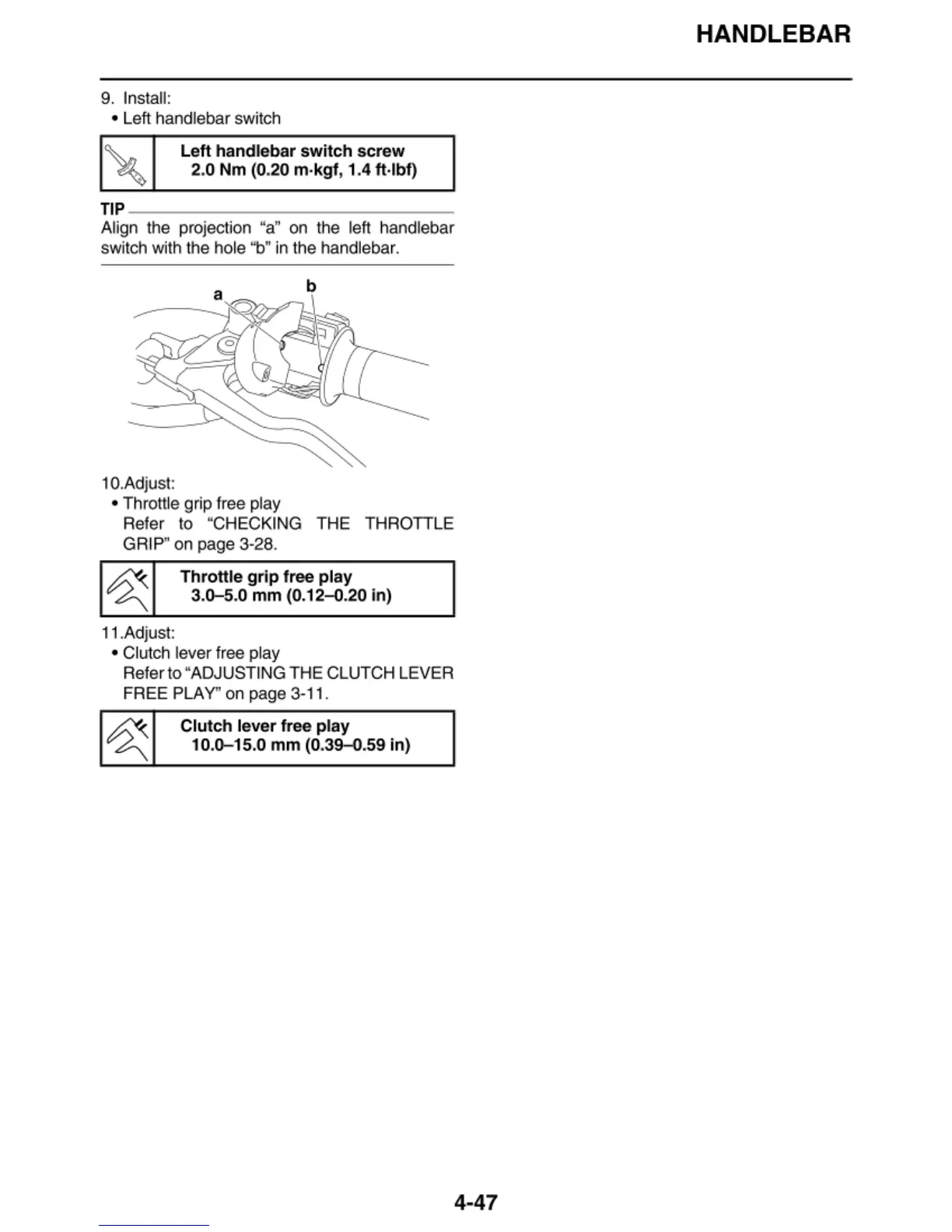

9. Ins ta ll:
• Left handlebar swi
tc h
Left handlebar
switch screw
2.0 Nm (0.20 m·kgf, 1.4 ft-lbf)
TIP ~~~~~~~~~~~~~~
Align the projecti on "a" on th e left handlebar
swi
tch wi th the hole "b" in the handlebar.
1
O.Adjust:
• Throttle g ri p free play
Refer to "CHECKING THE THROTTLE
GRIP" on page 3-28.
11.Adjust:
Throttle
grip free play
3.0-5 .0 mm (0.12-0 .20 in)
• Clutch lever free play
Refer to "ADJU
STI NG THE CLUTCH LEVER
FR
EE PL AY" on page 3-11.
Clutch lever free
play
10 . 0-15.0 mm (0.39-Q.59 in )
4-47
HANDLEBAR
