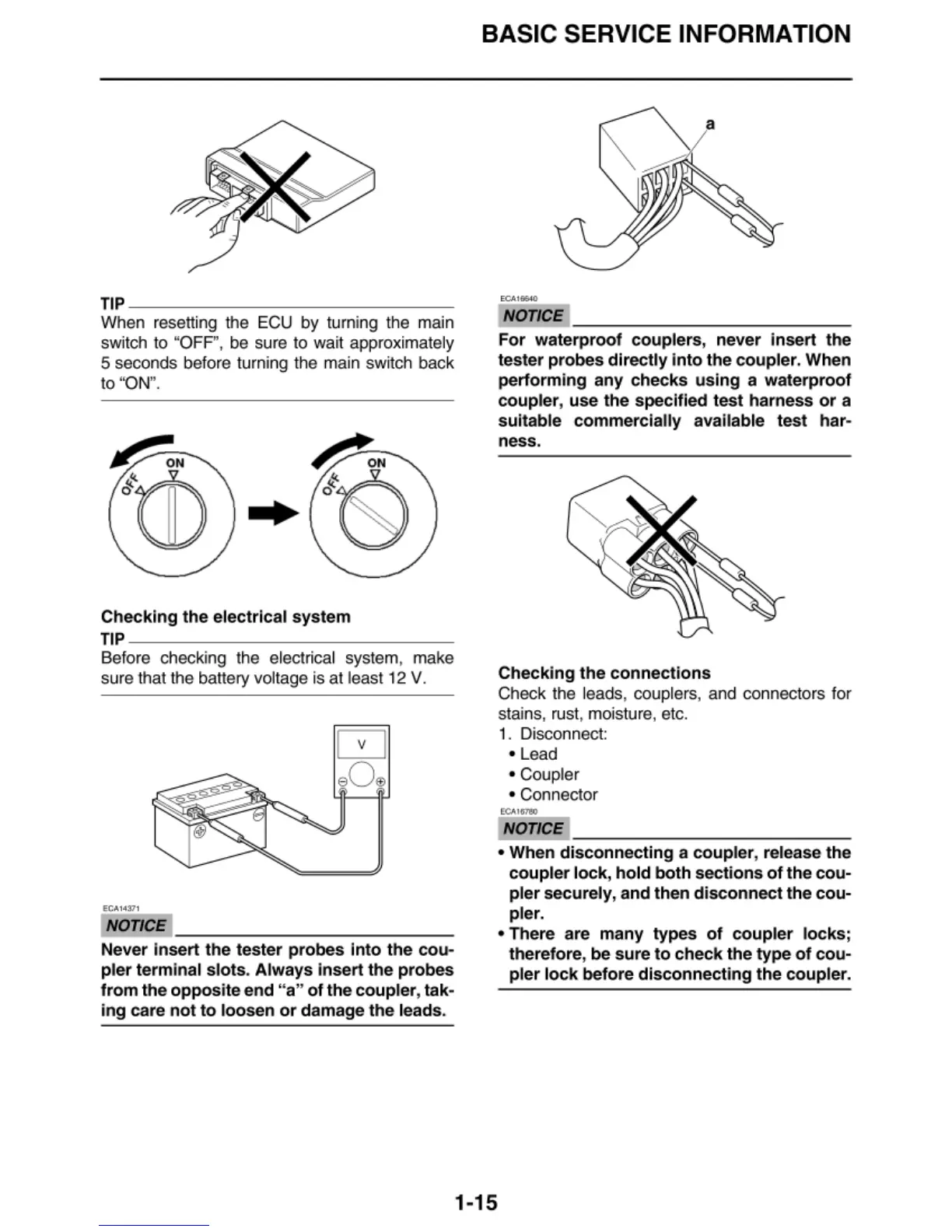

Yamaha FZ09E - Page 24

TIP ---------------
When resetting the ECU by tu rni ng th e main
switch
to "OFF ", be su re to wait approxima te ly
5 seconds before
tu rni ng th e main swi tc h back
to "O N ".
Checking the electrical system
TIP --------------~
Be fore ch ecking the electrical system, ma ke
sure that the batte ry voltage is at le ast 12 V.
£CA 14 31 1
NOTICE
------------~
Never Insert the tester probes Into the cou-
pler terminal
slots . Always Insert the probes
from the opposite end "a" of the coupler, tak-
ing care
not to loosen or damage the leads.
BASIC SERVICE INFORMATION
\ ~
a
NOTICE
For waterproof couplers, never insert the
tester
probes directly into the coupler. When
performing
any checks using a waterproof
coupler, use the specified
test harness or a
suitable commercially available
test har -
ness.
Checking
the connections
Check the l ea ds , cou pl ers, and connectors f or
stains, rust, moisture, et c.
1. Disconnect:
•
Le ad
•Co upler
•Co nnect or
NOTICE
• When disconnecting a coupler, release the
coupler lock, hold both sections of the cou-
pler securely, and then
disconnect the cou-
pler.
• There are
many types of coupler locks;
therefore, be sure
to check the type of cou-
pler
lock before disconnecting the coupler.
1-15
