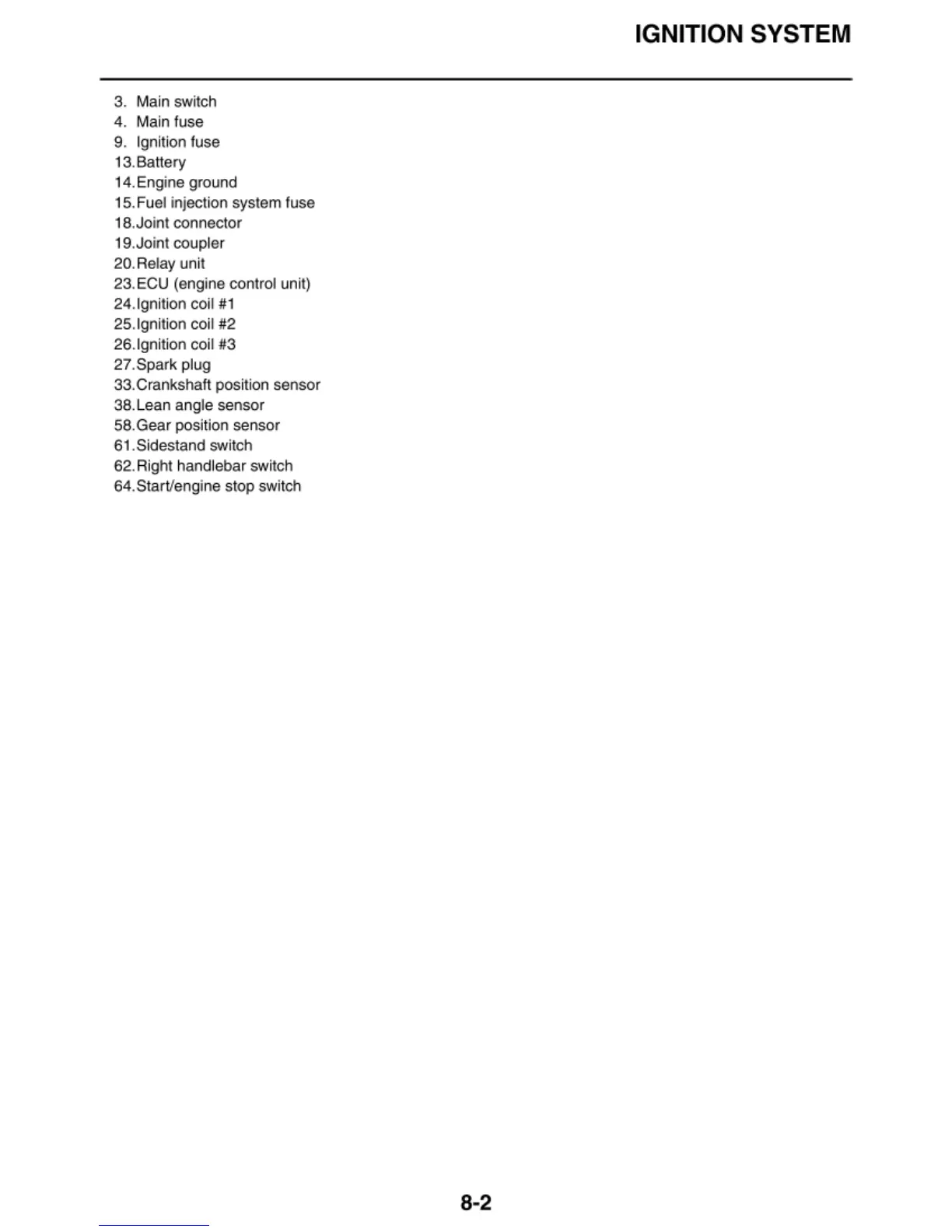

3. Main switch
4. Main fuse
9. Ignition fuse
13.Ba
tt ery
14.Engine ground
15. F
ue l injection system fuse
18.Joi
nt connector
19.Joi
nt coupler
20.Relay unit
23.ECU (engi
ne control unit)
24.lgnition
co il #1
25. Ignition co il #2
26. Ignition
co il #3
27.Spark pl
ug
33. Crankshaft positi on sensor
38. Lean angle sensor
58. Gear positi
on sensor
61 .Sidestand sw itch
62. Right handlebar switch
64. Start/engi
ne stop switch
IGNITION SYSTEM
8-2
