1 Outline
1.2.1 Type A01 Configurations
1-2
1.1 Σ-V-MD-series Type A01/A02 SERVOPACKs
A Σ-V-MD-series Type A01/A02 SERVOPACK can drive multiple servomotors (axes). The SERVOPACK
makes the most of machine performance to help improve productivity.
1.2 Examples of Servo System Configurations
This section describes examples of basic servo system configuration.

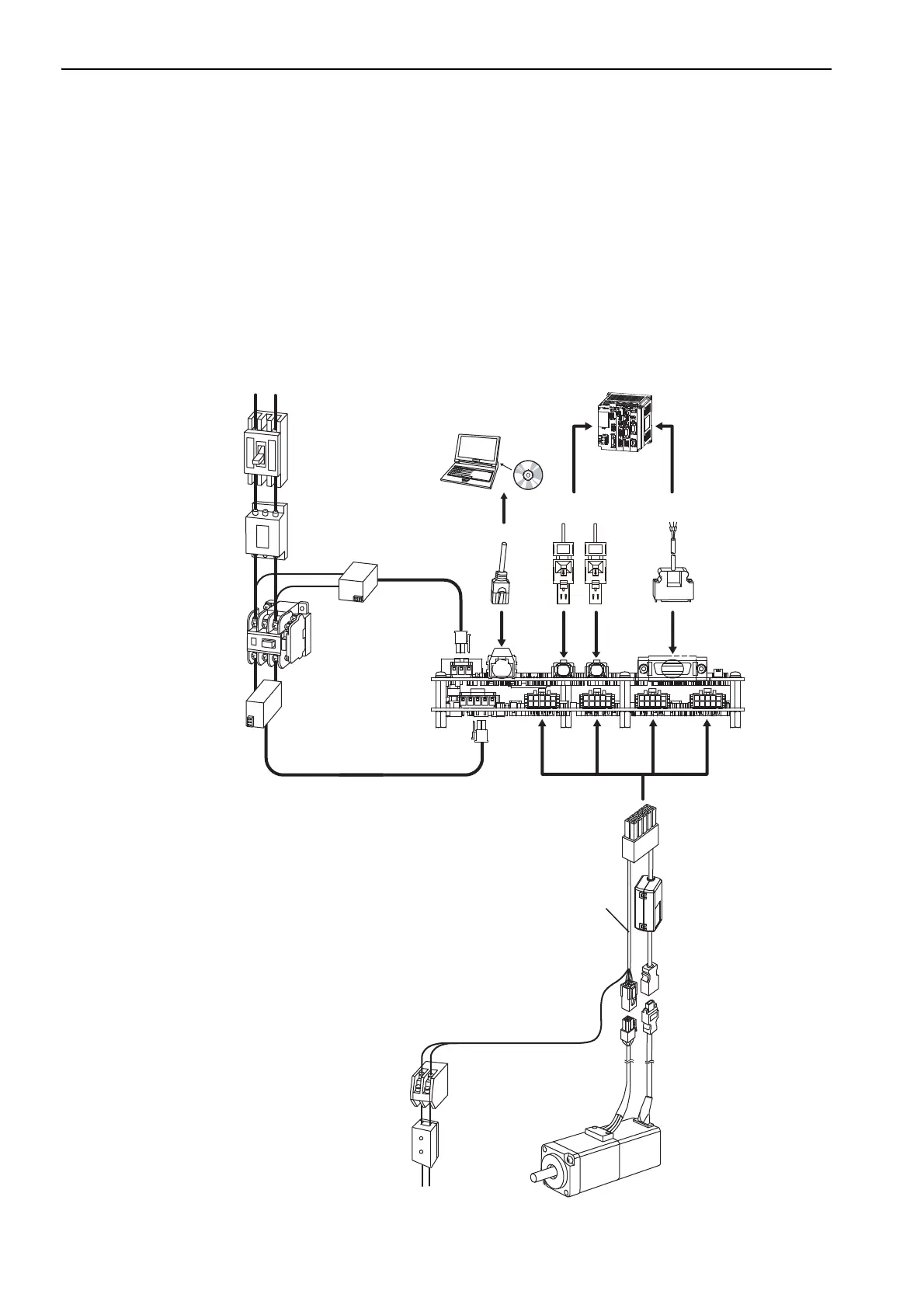

1.2.1 Type A01 Configurations
Brake DC power
supply*
Magnetic contactor
Used for a servomotor
with a brake.
100/200 VAC
Servomotor/encoder
relay cable
Battery case
(When an absolute
encoder is used.)
SGMMV Servomotor
MECHATROLINK-III
communications cable
I/O signal
cable
Ethernet
PC (SigmaWin+)
Host controller
Noise filter
Molded-case
circuit breaker
(MCCB)
Power supply
Single-phase 100/200 VAC
R T
Magnetic contactor
Isolated AC/DC converters
for control power supply
Turns the brake power
supply ON and OFF.
Install a surge absorber.
Protects the power
line by shutting the
circuit OFF when
overcurrent is
detected.
Eliminates external
noise from the
power line.
Turns the servo power
supply ON and OFF.
Install a surge
absorber.
Insulated AC/DC
converters for
main circuit
power supply
