YASKAWA E-V-MD Series User Manual

2 Selecting Products
2.4.1 Power Supply Cables
2-8

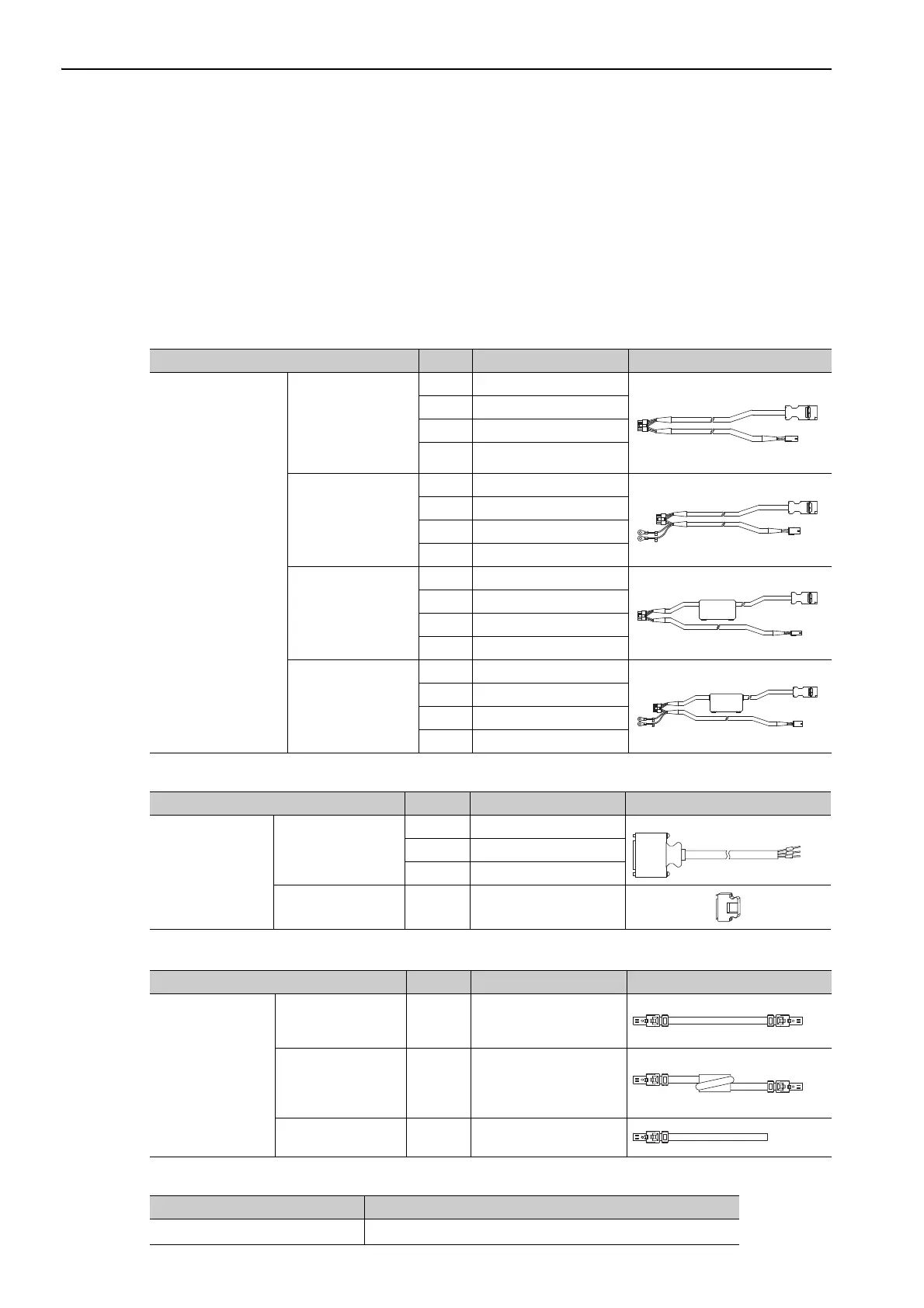

2.4 Selecting Cables
This section describes the various cables that are required to operate a SERVOPACK.
2.4.1 Power Supply Cables
The user must provide the main circuit power supply cable and control power supply cable. Refer to 5.1.2
Main Circuit and Control Power Supply Cables for the housings, contacts, and wire sizes for the power supply
cables.
2.4.2 Servomotor/Encoder Relay Cables
2.4.3 I/O Signal Cables
2.4.4 MECHATROLINK Communications Cables
2.4.5 Ethernet Cables
Cable Name Length Model Appearance
Servomotor/Encoder
Relay Cables
For servomotor
without holding
brake and
incremental
encoder, no battery
case
1 m JZSP-CV1WI0-01-E
3 m JZSP-CV1WI0-03-E
5 m JZSP-CV1WI0-05-E
10 m JZSP-CV1WI0-10-E
For servomotor
with holding brake
and incremental
encoder, no battery
case
1 m JZSP-CV1WJ0-01-E
3 m JZSP-CV1WJ0-03-E
5 m JZSP-CV1WJ0-05-E
10 m JZSP-CV1WJ0-10-E
For servomotor
without holding
brake and absolute
encoder, with
battery case
1 m JZSP-CV1WA0-01-E
3 m JZSP-CV1WA0-03-E
5 m JZSP-CV1WA0-05-E
10 m JZSP-CV1WA0-10-E
For servomotor
with holding brake
and absolute
encoder, with
battery case
1 m JZSP-CV1WB0-01-E
3 m JZSP-CV1WB0-03-E
5 m JZSP-CV1WB0-05-E
10 m JZSP-CV1WB0-10-E
Cable Name Length Model Appearance
Cables for I/O
Signals
Cable with Loose
wire at One End
1 m JZSP-CSI02-1-E
2 m JZSP-CSI02-2-E
3 m JZSP-CSI02-3-E
Connector Kit – JZSP-CSI9-2-E
Name Length Order No. Appearance
MECHATROLINK-
III Communication
Cable
Cables with
Connectors
at Both Ends
0.2 m to
50 m
JEPMC-W6012--E
Cables with
Connectors at
Both Ends (With
Ferrite Core)
10 m
to
50 m
JEPMC-W6013--E
Cable with Loose
Wire at One End
0.5 m to
50 m
JEPMC-W6014--E
Cable Name Specifications
Ethernet Cable
100BASE-TX twisted-pair cable (category 5 or higher)
Ｂ
Ｂ
Ｂ
Ｂ
