YASKAWA E-V-MD Series User Manual

1.2 Examples of Servo System Configurations
1-3
1
Outline

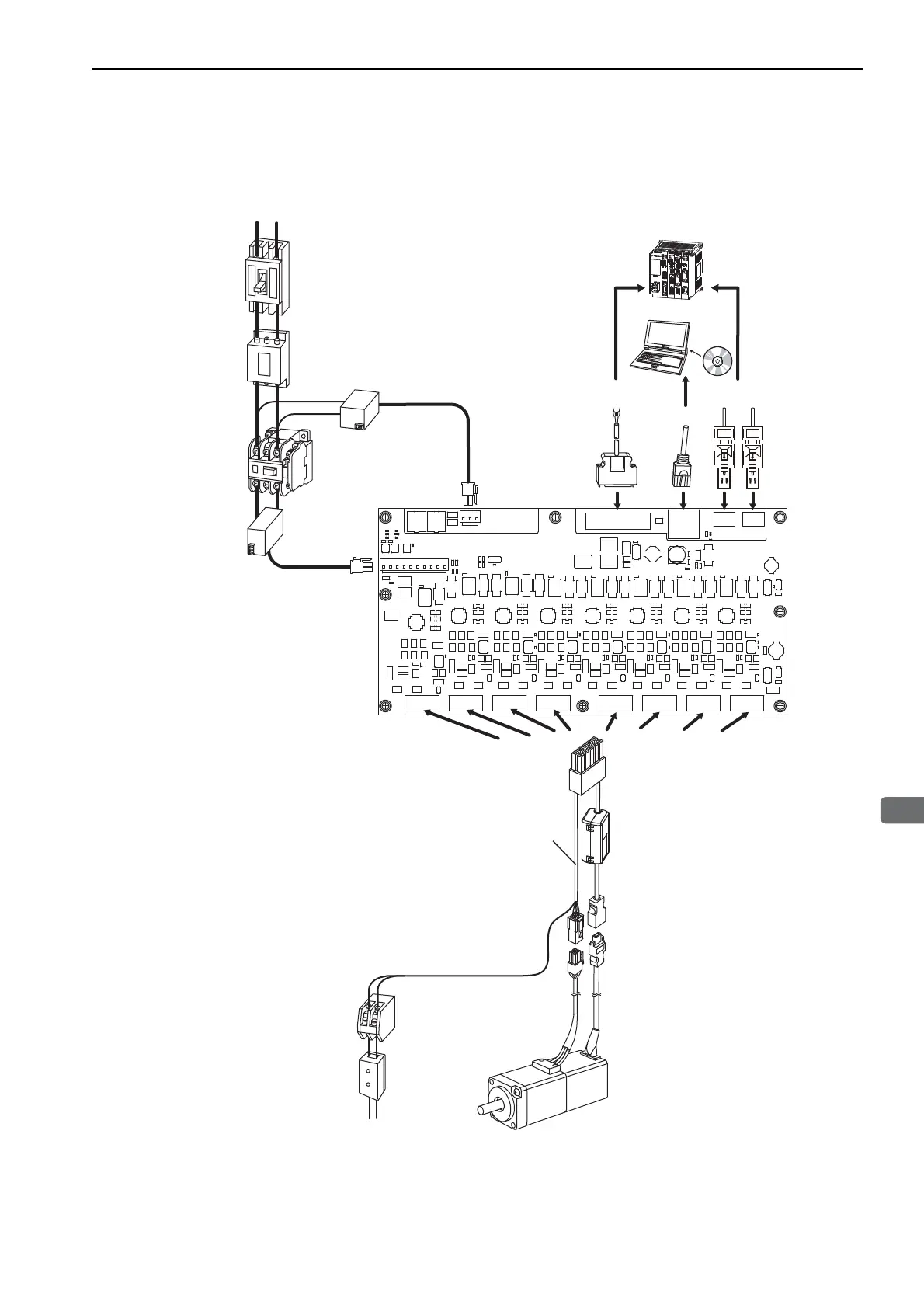

1.2.2 Type A02 Configurations
Ethernet
PC (SigmaWin+)
MECHATROLINK-III
communications cable
R T
Servomotor/encoder relay cable
Power supply
Single-phase 100/200 VAC
Molded-case
circuit breaker
(MCCB)
Protects the power
line by shutting the
circuit OFF when
overcurrent is
detected.
Noise filter
Eliminates
external noise from
the power line.
Magnetic
contactor
Turns the servo
ON and OFF.
Install a surge
absorber.
Isolated
AC/DC converter
for main circuit power
supply
Isolated
AC/DC converter
for control power supply
I/O
signal cable
Host controller
Battery case
(when an absolute
encoder is used.)
100/200 VAC
Brake power supply
∗
Used for a servomotor
with a brake.
Magnetic contactor
Turns the brake power supply
ON and OFF.
Install a surge absorber.
SGMMV Servomotor
