5 Wiring and Connections
5.1.1 Main Circuit Power Supply Terminals (CN32) and Control Power Supply Terminals (CN31)
5-2
5.1 Wiring the Main Circuit and Control Power Supplies
This section gives the names and specifications of the main circuit power supply terminals and control power
supply terminals.
Also this section provides general precautions for wiring and precautions for application under special envi-
ronments.
5.1.1 Main Circuit Power Supply Terminals (CN32) and Control Power Supply
Terminals (CN31)
This section gives the names and specifications of the main circuit power supply terminals and control power
supply terminals.

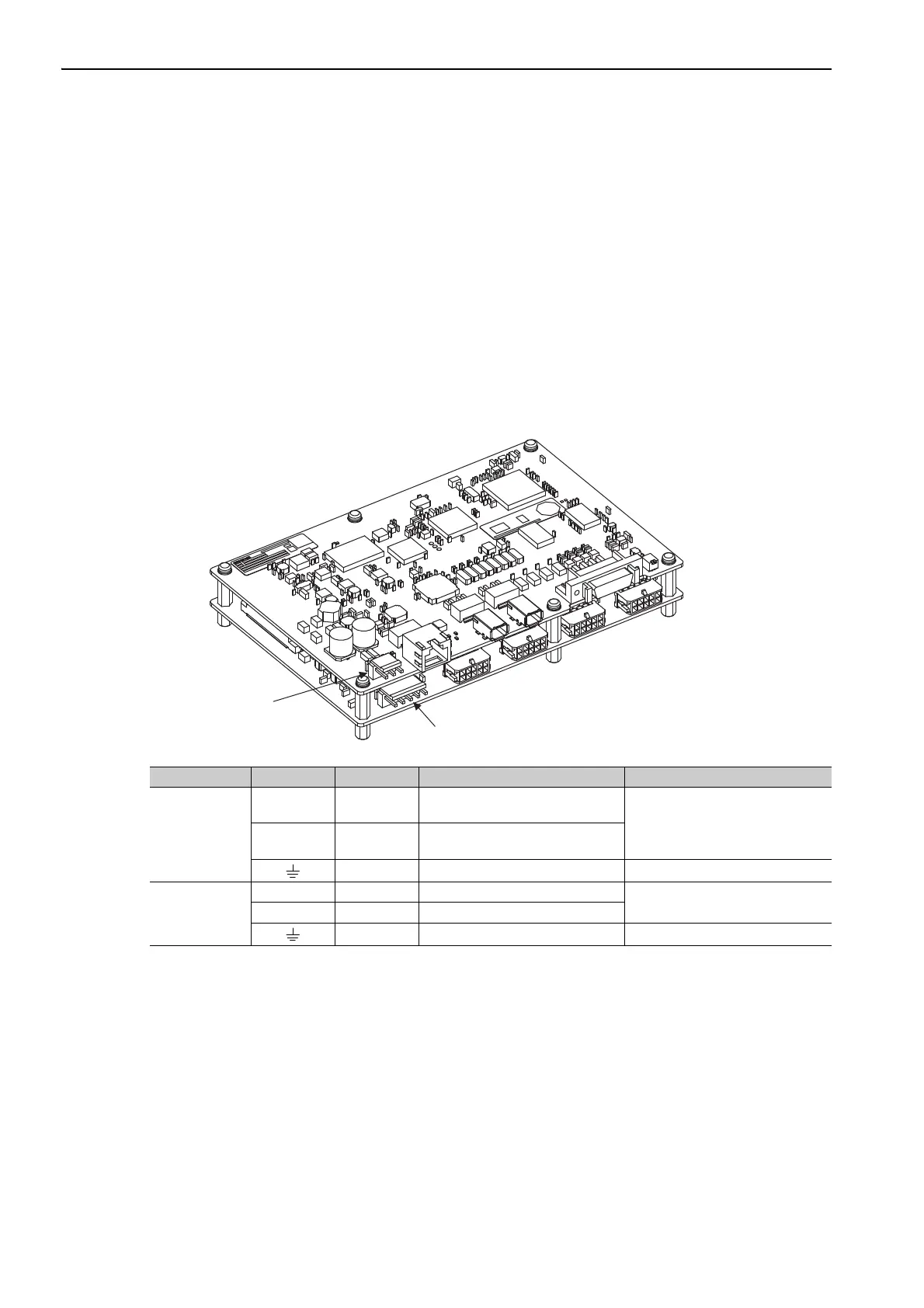

(1) Type A01 SERVOPACK
Connector No. Signal Pin No. Name Specification
CN32
L1
1，2
Main circuit power supply input
pin +
24 VDC -10% to +15% or
48 VDC -15% to +10%
L2
3，4
Main circuit power supply input
pin -
5 Ground pin –
CN31
L1C 1 Control power supply input pin +
24 VDC ±15%
L2C 2 Control power supply input pin -
3 Ground pin –
CN32
CN31
