4 Installation
4.2.3 Mounting Orientation
4-8

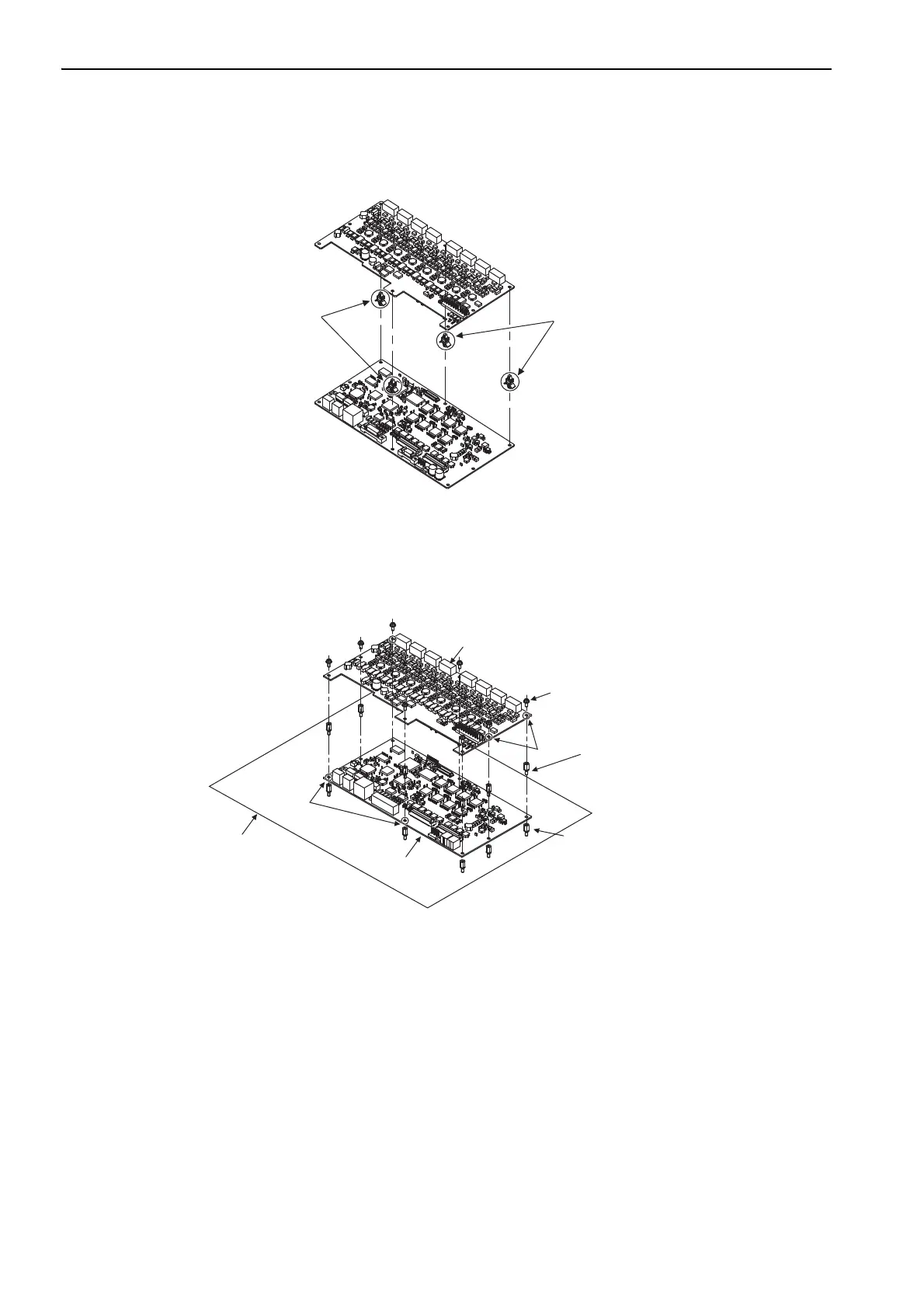

(2) Mounting a Type A02 SERVOPACK
1.
Remove the spacers between the boards.
2.
Attach 8 studs (length: 5 mm or above) to the system to fit in the 8 holes in the control board.
3.
Align the control board with the studs, and attach 8 studs (length: 9 mm) in the 8 holes in the
control board. Tighten the screws to connect the board.
4.
Place the power board on the control board. Tighten the M3 screws to connect the board.
This concludes the mounting of the SERVOPACK.
Note: Use metal studs.
4.2.3 Mounting Orientation
You can install the SERVOPACK either horizontally or vertically.
Note: Secure the cable within the system so that the weight of the cable is not placed on the SERVOPACK.
Spacer
Spacer
Power board
M3 screw
Stud
(length: 9 mm)
Control board
FG
System
FG
Stud
(length: 5 mm
or above)
