YASKAWA E-V-MD Series User Manual

4.2 SERVOPACK Installation
4-7
4
Installation
4.2.2 Mounting the SERVOPACK
Use the following procedure to mount the SERVOPACK to the system.
(1) Mounting a Type A01 SERVOPACK
 SERVOPACK without the Mounting Option

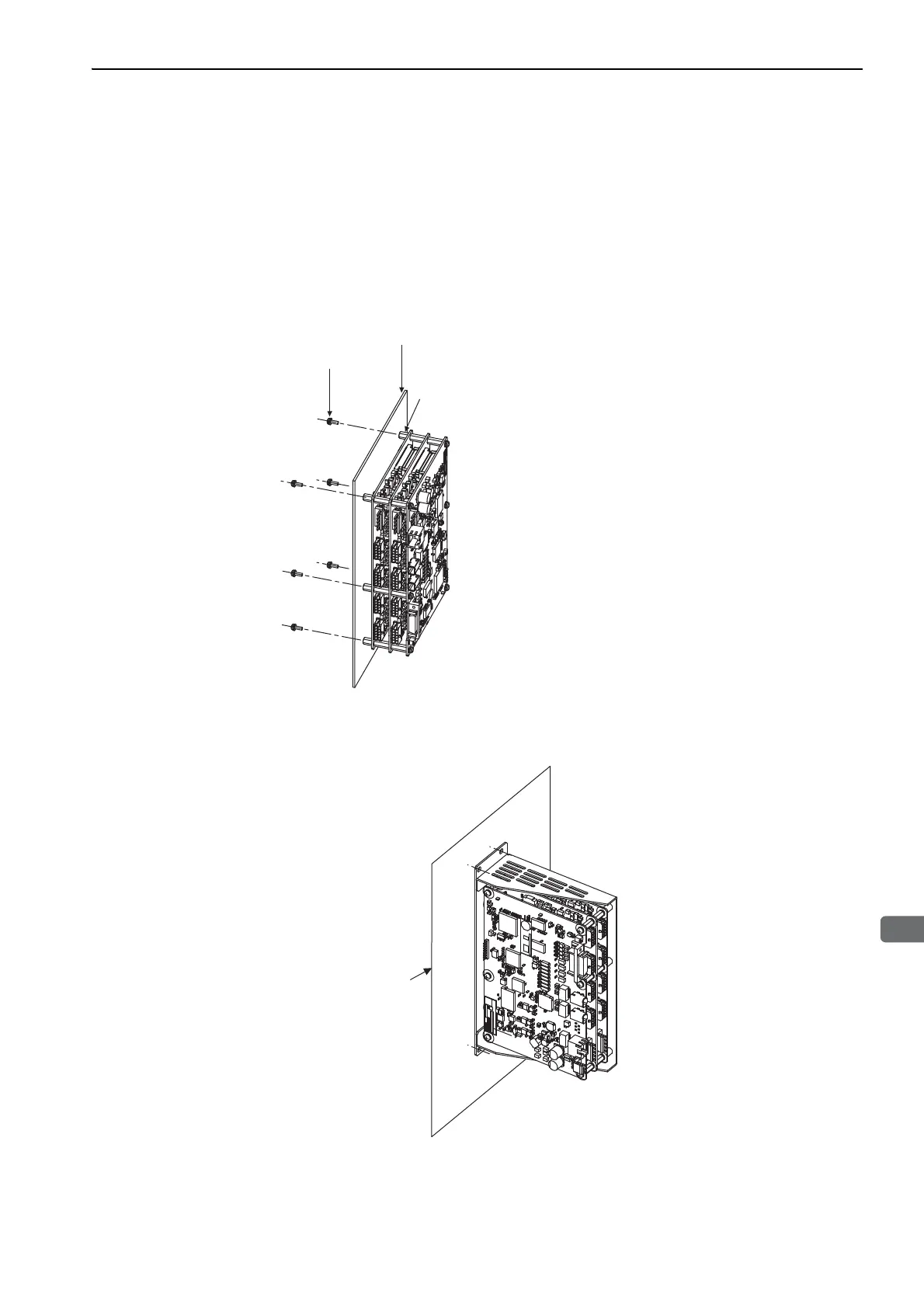

Mount the SERVOPACK to the system with M3 screws according to the mounting positions of the six studs on the bottom
of the SERVOPACK.
Note: If you replace the studs on the bottom of the SERVOPACK, use metal studs with a length of at least 9 mm.
 SERVOPACK with the Mounting Option
Mount the SERVOPACK to the system with M4 screws according to the four mounting holes in the SERVOPACK.
Studs on the bottom of the SERVOPACK
(length: 9 mm min, effective screw depth: 4 mm)
M3 screws
System side
System side
