6.4 Starting and Operating the SigmaWin+
6-5
6
SigmaWin+
6.4 Starting and Operating the SigmaWin+
Use the following procedure to display the main window of the SigmaWin+.
1. Connect a SERVOPACK to a computer which has SigmaWin+ installed.
For the connection method, refer to the figure in 1.2 Examples of Servo System Configurations.
2. Turn on the SERVOPACK.
3. Turn on the computer.
4. Double click the YE_Applications icon.
5. Double click the SigmaWin+ English Edition icon.
The SigmaWin+ startup window will appear. When the startup of SigmaWin+ has been completed, the
Connect window will appear
6. Click Search.
The Search Condition Setting box will appear
Note:Use the offline mode when running SigmaWin+ without connecting to the SERVOPACK.
7. Select the ΣV.

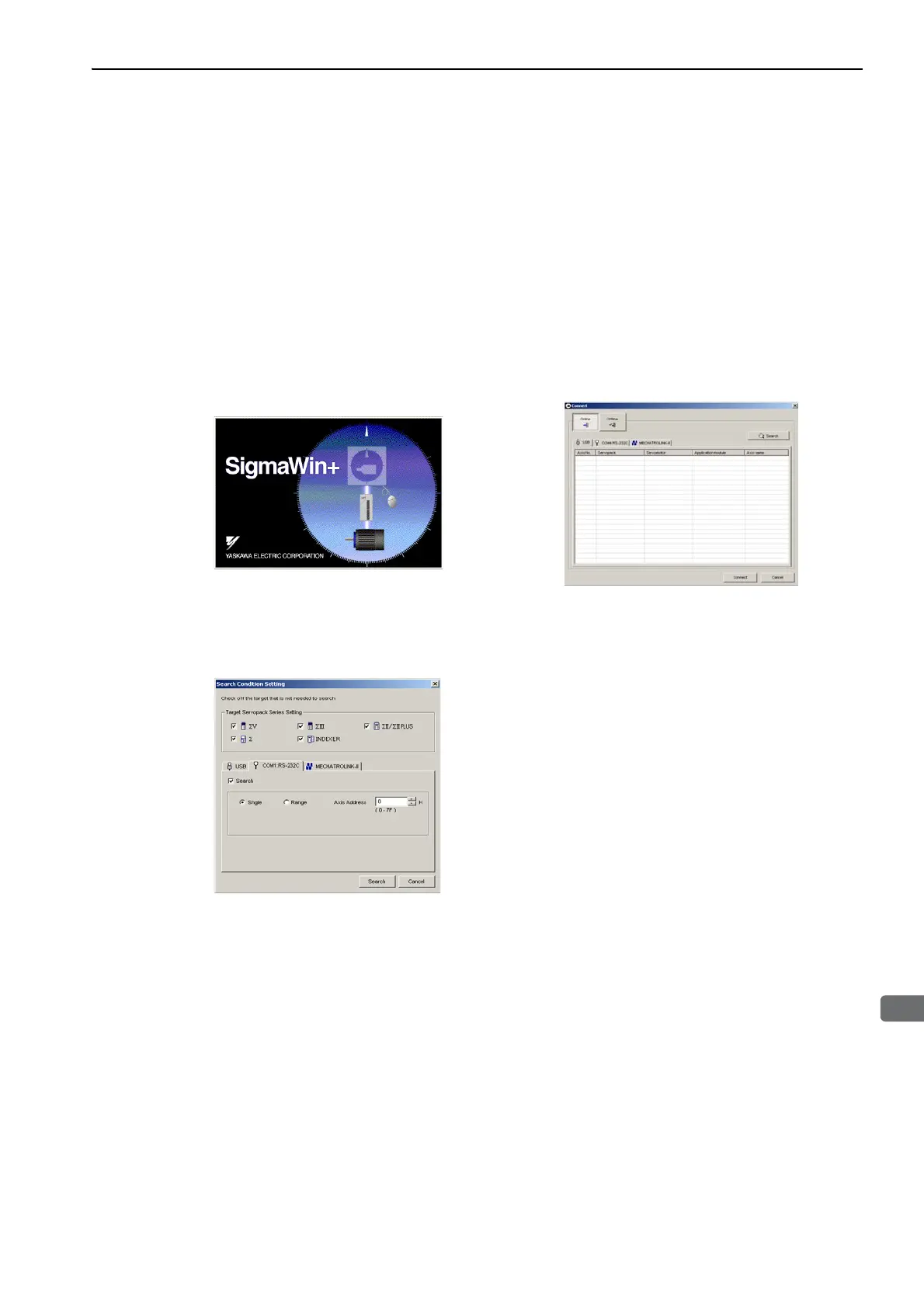

Setup Window Connect Window
Search Condition Setting box
