8 Adjustments
8.8.2 Manual Adjustment of Friction Compensation
8-82
2
To check the effect of friction compensation, gradually increase the friction compensation coefficient (Pn123).
Note: Usually, set the friction compensation coefficient value to 95% or less. If the effect is insufficient,
increase the friction compensation gain (Pn121) by 10% increments until it stops vibrating.
Effect of Parameters for Adjustment
Pn121: Friction Compensation Gain
This parameter sets the responsiveness for external disturbance. The higher the set value is, the better the
responsiveness will be. If the equipment has a resonance frequency, however, vibration may result if the set
value is excessively high.
Pn123: Friction Compensation Coefficient
This parameter sets the effect of friction compensation. The higher the set value is, the more effective friction
compensation will be. If the set value is excessively high, however, the vibration will occur easily. Usually,
set the value to 95% or less.
3

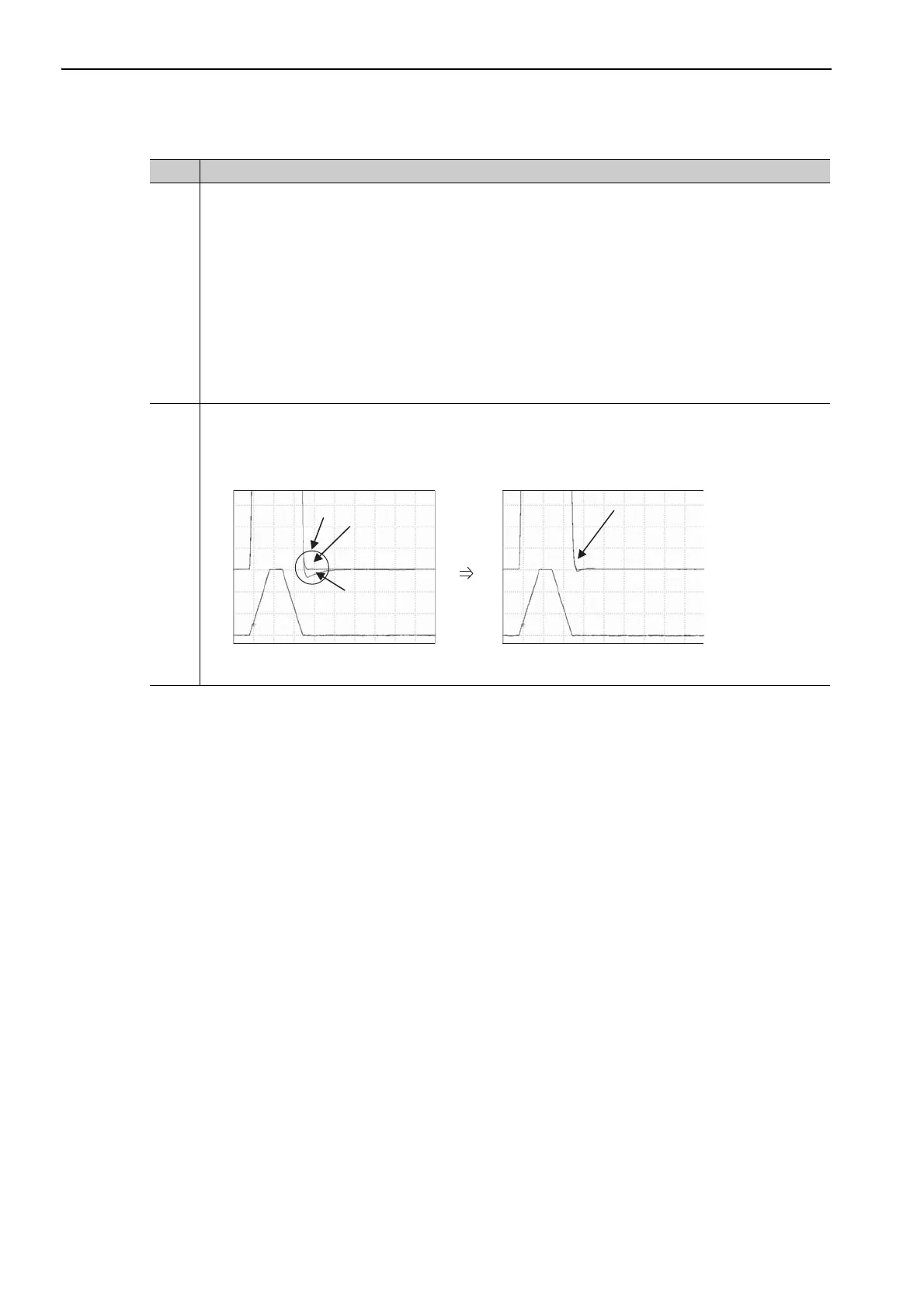

Effect of Adjustment
The following graph shows the responsiveness with and without proper adjustment.
(cont’d)
Step Operation
⟎Ꮕ
ࡄ࡞ࠬㅦᐲ
⟎Ꮕ
ࡄ࡞ࠬㅦᐲ
ᡂዊ
ᡂᄢ㧘ᡂዊ
ᡂᄢ
Position error
Reference speed
Position error
Reference speed
Small friction
Responsiveness
is improved by
friction
compensation.
Large friction
Without friction compensation With friction compensation
Insufficient responsiveness
because of friction
To Next Page
