9.4 Origin Search
9-7
2.
Click OK.

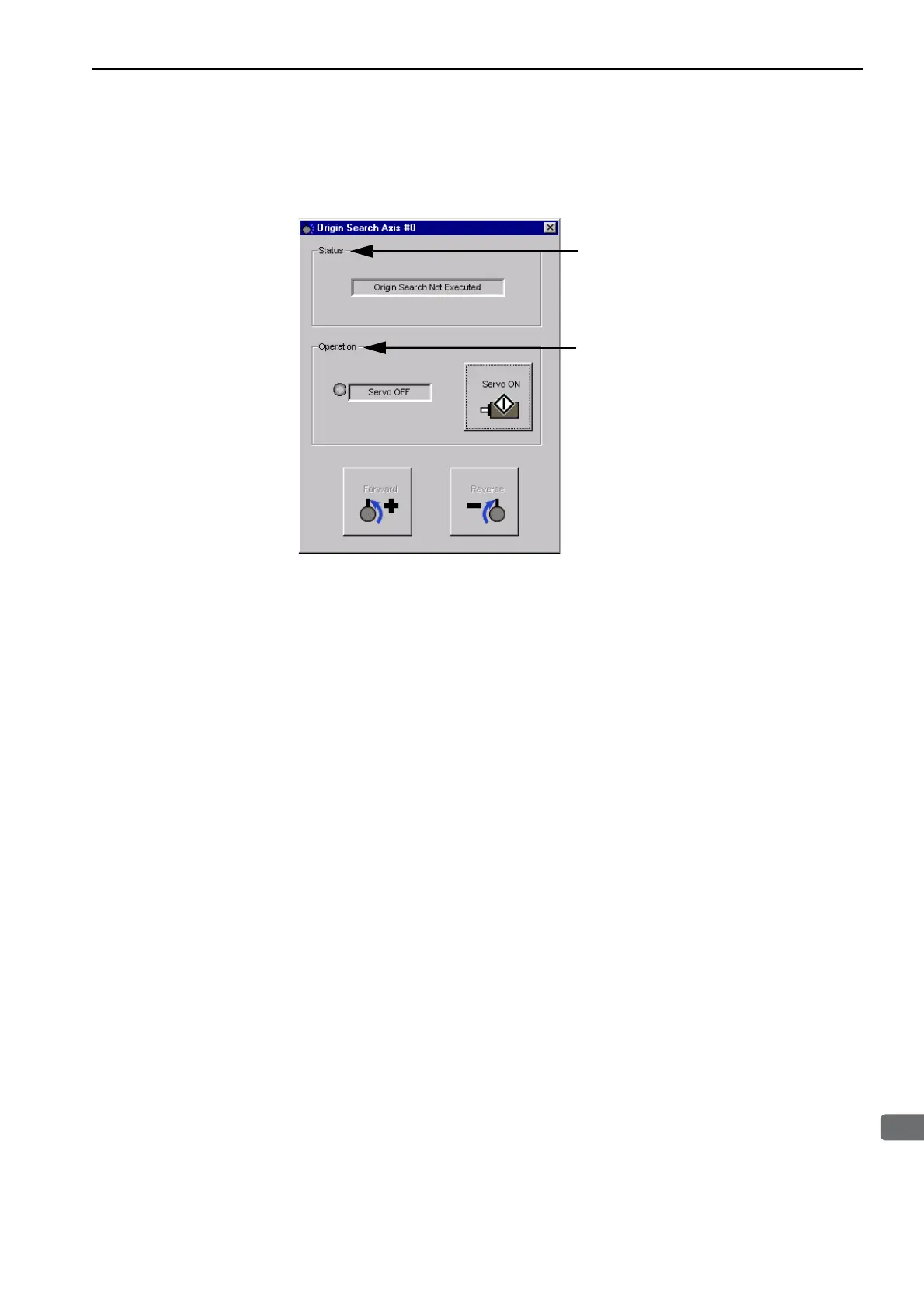

The Origin Search box will appear.
If the power to the servomotor is on, an error message will appear. Make sure that the power to the servo-
motor is off.
Status
This shows the run status of the servomotor.
Origin Search Not Executed: The motor did not turn.
Origin Search Executing: Searching for the origin by turning forward or in reverse.
Origin Search Stopped: The Forward or Reverse button was released during the origin search, so the
motor stopped.
Origin Search Completed: The point of origin was found, and the motor was stopped (clamped) at the
point.
Operation
On the left side of the Operation group, the color of the button and the text in the box changes to indicate
if the power to the servomotor is on or off. The name of the square button will change to reflect the current
status of the servomotor's power. When the power to the servomotor is off, the square button is labeled
Servo ON. When the power to the servomotor is on, it is labeled Servo OFF.
