3.6 Device-specific Settings
3.6.4 Setting Machine-specific Motion Parameters
3-47
3
Machine Controller Setup
Fixed Parameter Saving
This section describes how to save the fixed parameter settings.
1.

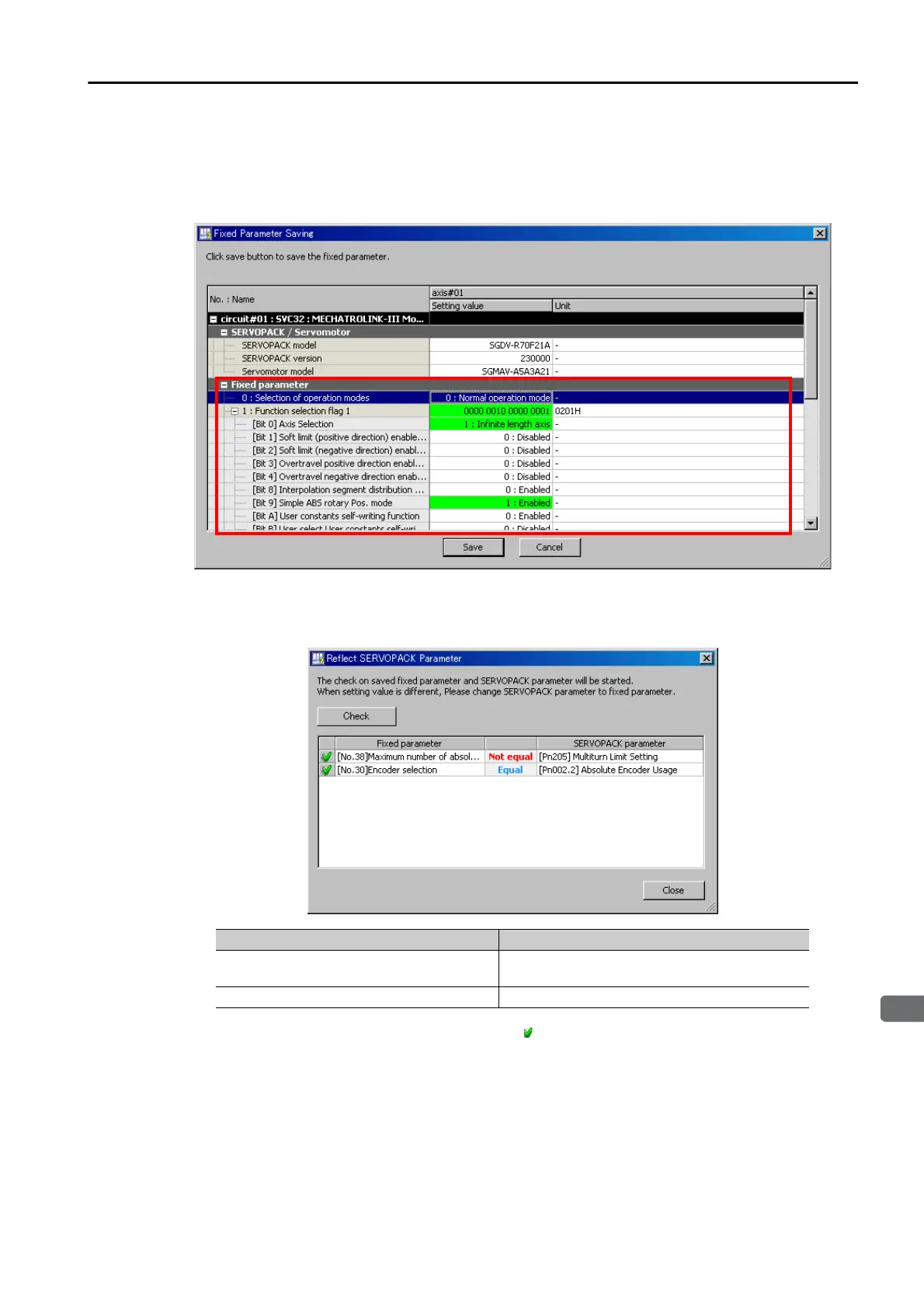

Click the Axis Setup Wizard Button, click the Fixed Parameter Setting Button, and
then click the Fixed Parameter Saving Button to display the following dialog box.
2.
Next, the Reflect SERVOPACK Parameter Dialog Box will be displayed.
Click the Check button to check whether the saved fixed parameters match the SERVOPACK
parameter settings.
3.
Checked parameters will be marked with a , and the results of the check will be dis-
played.
If the fixed parameter and the SERVOPACK parameter match: Equal
If the fixed parameter and the SERVOPACK parameter do not match: Not equal
Fixed Parameter SERVOPACK parameter
No. 38 (Maximum Number of Absolute
Encoder Rotations)
Pn205 (Multiturn Limit Setting)
No. 30 (Encoder Selection) Pn002.2 (Absolute Encoder Usage)
To Next Page
