2.1 MP3200 Installation
2.1.6 Battery Installation and Replacement
2-16
5. Hold the connector, and while pressing it toward the CPU Unit’s internal circuit board
(the board on the side of the clamp), move the Battery and the battery holder into the
CPU Unit.
Note: If this procedure is not followed, the battery leads may be pinched between the Battery and the circuit
board, causing stress on the leads. If that occurs, the battery holder will bulge after step 4 of the proce-
dure.
6. Close the battery holder and confirm that the BAT indicator on the CPU Unit is not lit.
This concludes the Battery installation procedure.

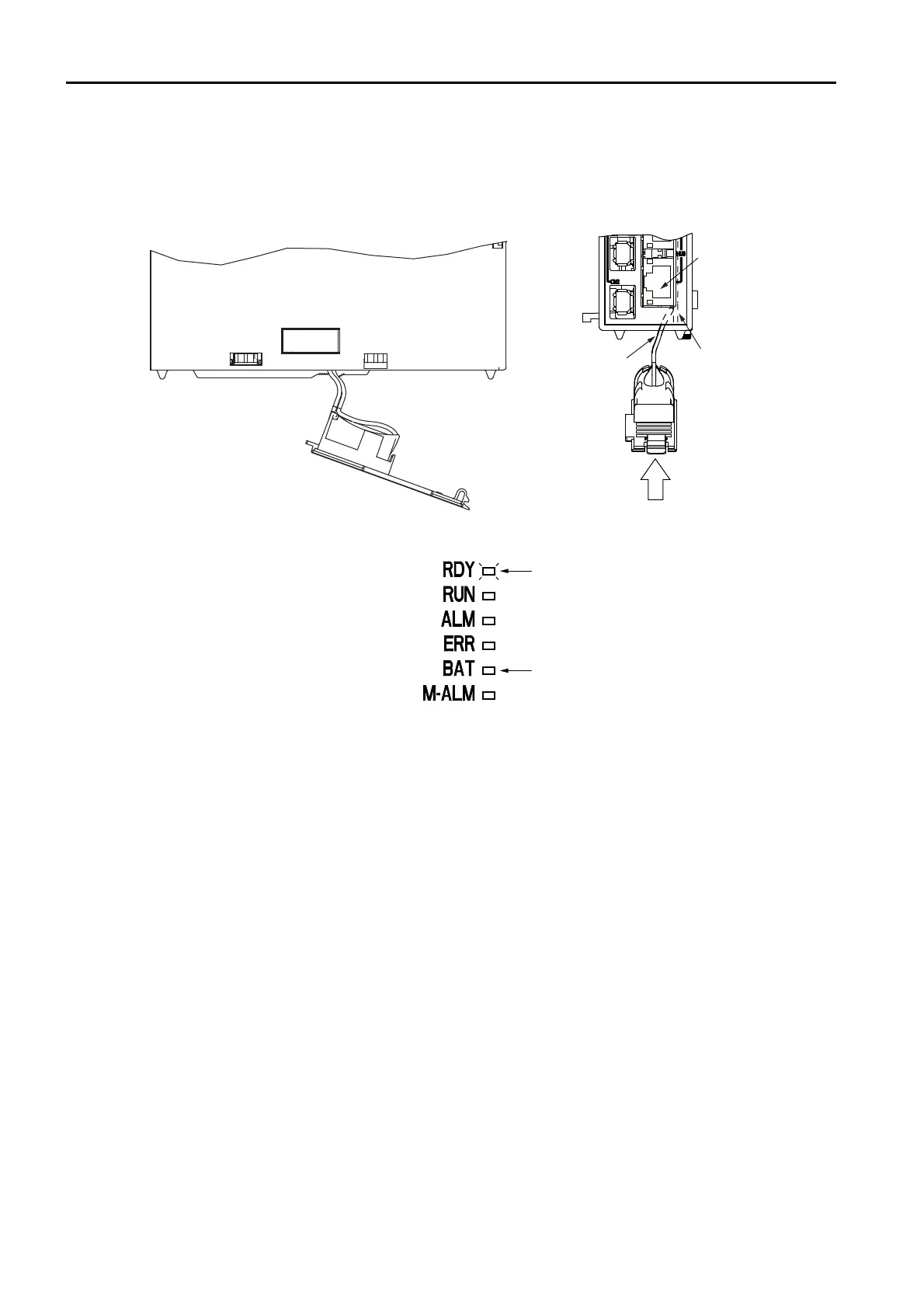

Clamp
CPU Unit internal circuit
board (clamp side)
Move the Battery.
2 battery leads
Lit.
Not lit.
