2.1 MP3200 Installation
2.1.6 Battery Installation and Replacement
2-17
2
Installation and Connections

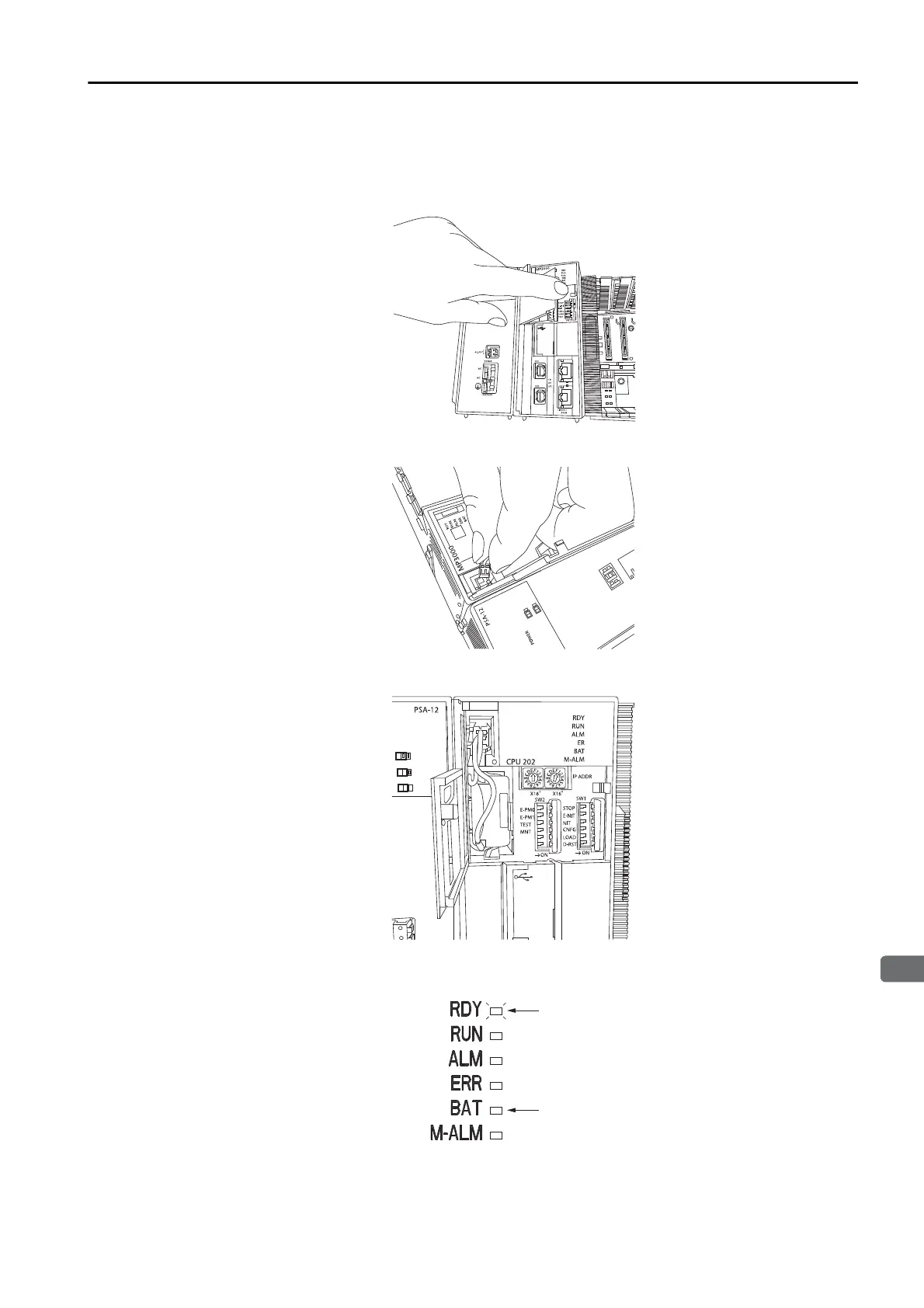

When Using the CPU-202
1.
Confirm that the power supply to the MP3200 is turned OFF.
2.
Open the cover on the front of the CPU Unit.
3.
Securely connect the lead connector of the Battery to the connector in the CPU Unit.
4.
Move the Battery into the CPU Unit.
5.
Close the cover on the CPU Unit, you turn ON the power supply, and then confirm that
the BAT indicator on the CPU Unit is not.
This concludes the Battery installation procedure.
