2.1 MP3200 Installation
2.1.6 Battery Installation and Replacement
2-19
2
Installation and Connections
4.

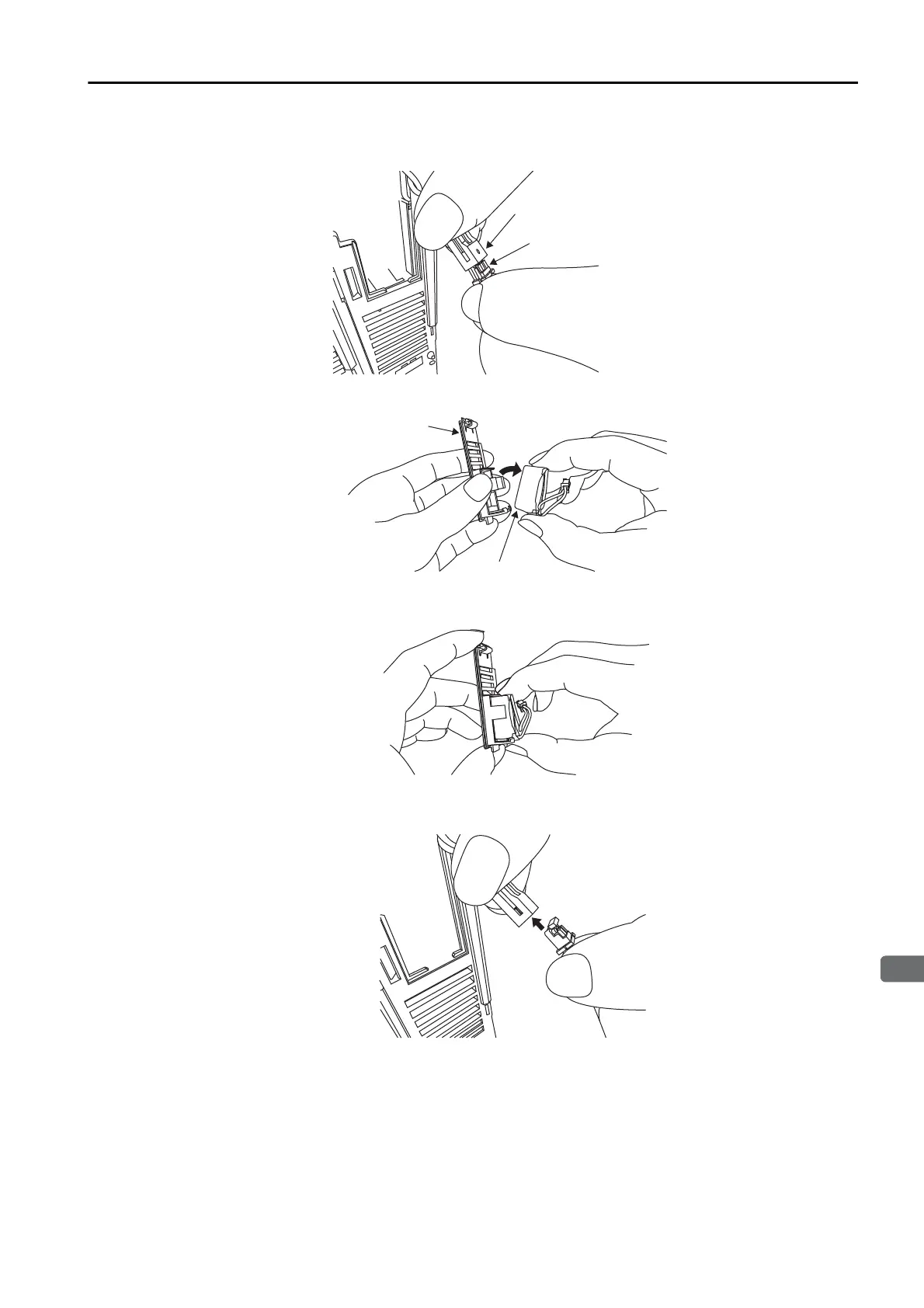

Remove the connector on the end of the Battery lead from the connector on the CPU
Unit.
5.
Remove the Battery from the battery holder.
6.
Insert the Replacement Battery into the battery holder.
7.
Securely connect the lead connector of the Replacement Battery to the connector on
the CPU Unit.
Connector on CPU Unit
Battery lead connector
