3.6 Device-specific Settings
3.6.1 Data That Is Automatically Updated during Self Configuration
3-20

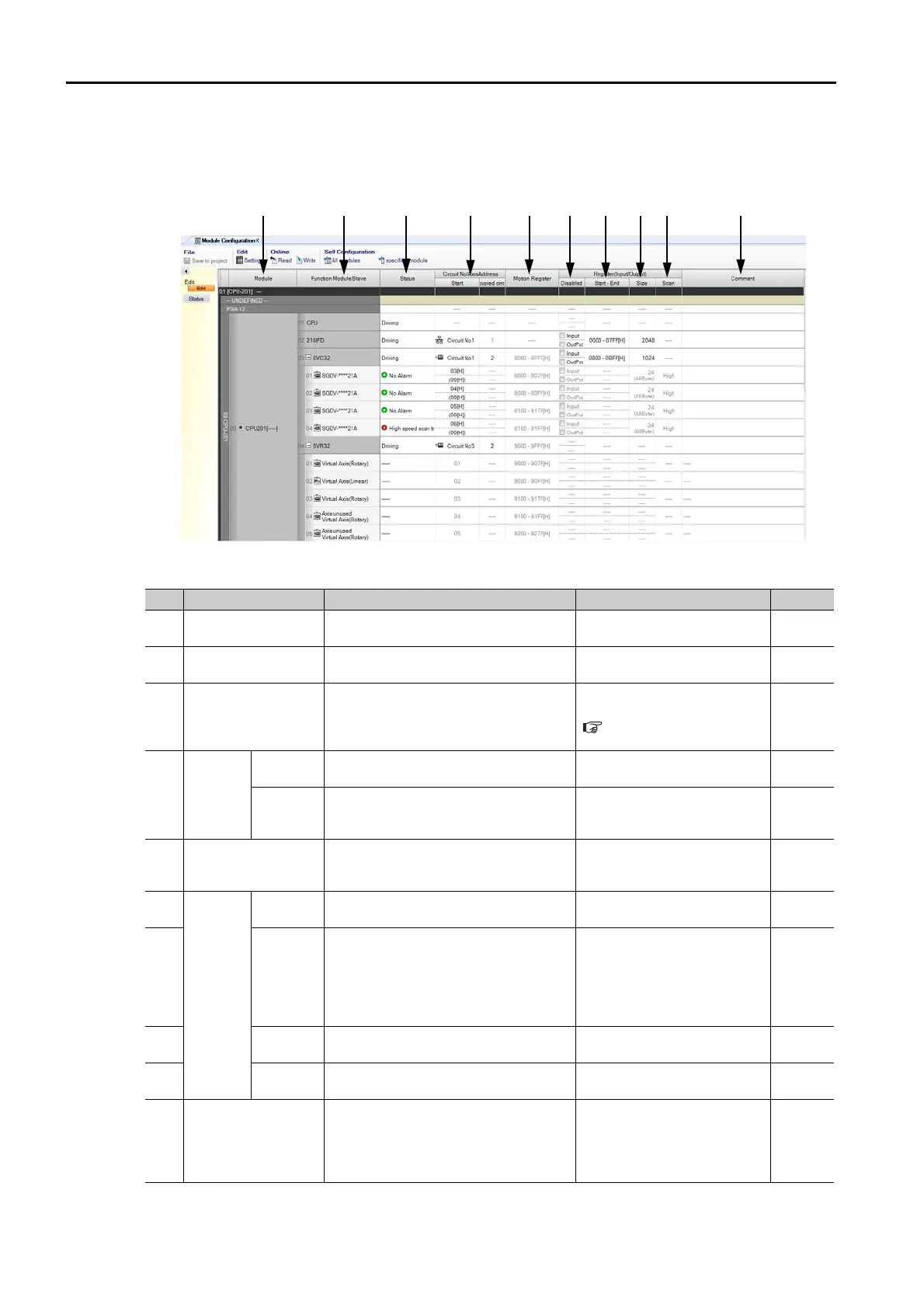

Module Configuration Definition Tab Page Details
The following table describes the items that are displayed in the Module Configuration Defini-
tion Tab Page.
* Set I/O registers so that the same registers are not used by more than one Function Module.
No. Item Display/Setting Item Setting Range/Settings Editing
Module
Displays the Module that is set for the
slot.
Any Module
Possi-
ble
Function Module/
Slave
Displays the Function Modules and
slaves that are used by the Module.
Any Function Module or slave
Possi-
ble
Status
In Online Mode, displays the status of
the Function Modules and the com-
munications status of MECHA-
TROLINK slave devices.
Refer to the following sec-
tion.
Status Display Contents
on page 3-21
Not
possible
Circuit
No./Axis
Address
Start
Displays the first circuit number that is
assigned to the Module.
Circuit No. 1 to 16
Possi-
ble
Occu-
pied cir-
cuits
Displays the number of circuits that
are assigned to the Module.
1 to 2
Possi-
ble
Motion Register
Displays the first and last register
numbers of the motion parameters.
The parameter is automati-
cally set based on the circuit
numbers.
Not
possible
Register
(Input/
Output)
Disabled
Used to disable inputs or outputs by
selecting the check boxes.
Selected or not selected
Possi-
ble
Start -
End
Displays the range of registers that is
used as an I/O area by the Function
Module. For the SVC or SVC32, the
first and last registers of the I/O Mod-
ules that are connected to MECHA-
TROLINK are displayed.
Start: 0000 to 7FFF hex, End:
10000 to 17FFF hex, 800 hex
words max.
∗
Possi-
ble
Size
Displays the number of words in the I/
O area.
The size depends on the
function of the Module.
Possi-
ble
Scan
Displays the scan in which the I/O ser-
vice is performed for the I/O device.
High or Low
Possi-
ble
Comment Displays the user comment.
You can enter up to 16 char-
acters for a Function Module.
You can enter up to 32 char-
acters for a MECHA-
TROLINK slave.
Possi-
ble
To Next Page
