6-3
IM AQ6370D-01EN
Waveform Display
6
6.1 Zooming In/Out on Waveforms
Zooming In/Out on a Range Specified with the Mouse
1.
In the waveform display area, drag the portion of the waveform to zoom in/out on.
A dotted outline is displayed around the selected range. (The zoom area.)
2.
When you release the left mouse button, the display zooms in on the zoom area.
At the same time, the zoom area is indicated with a dotted line range in the overview
window.

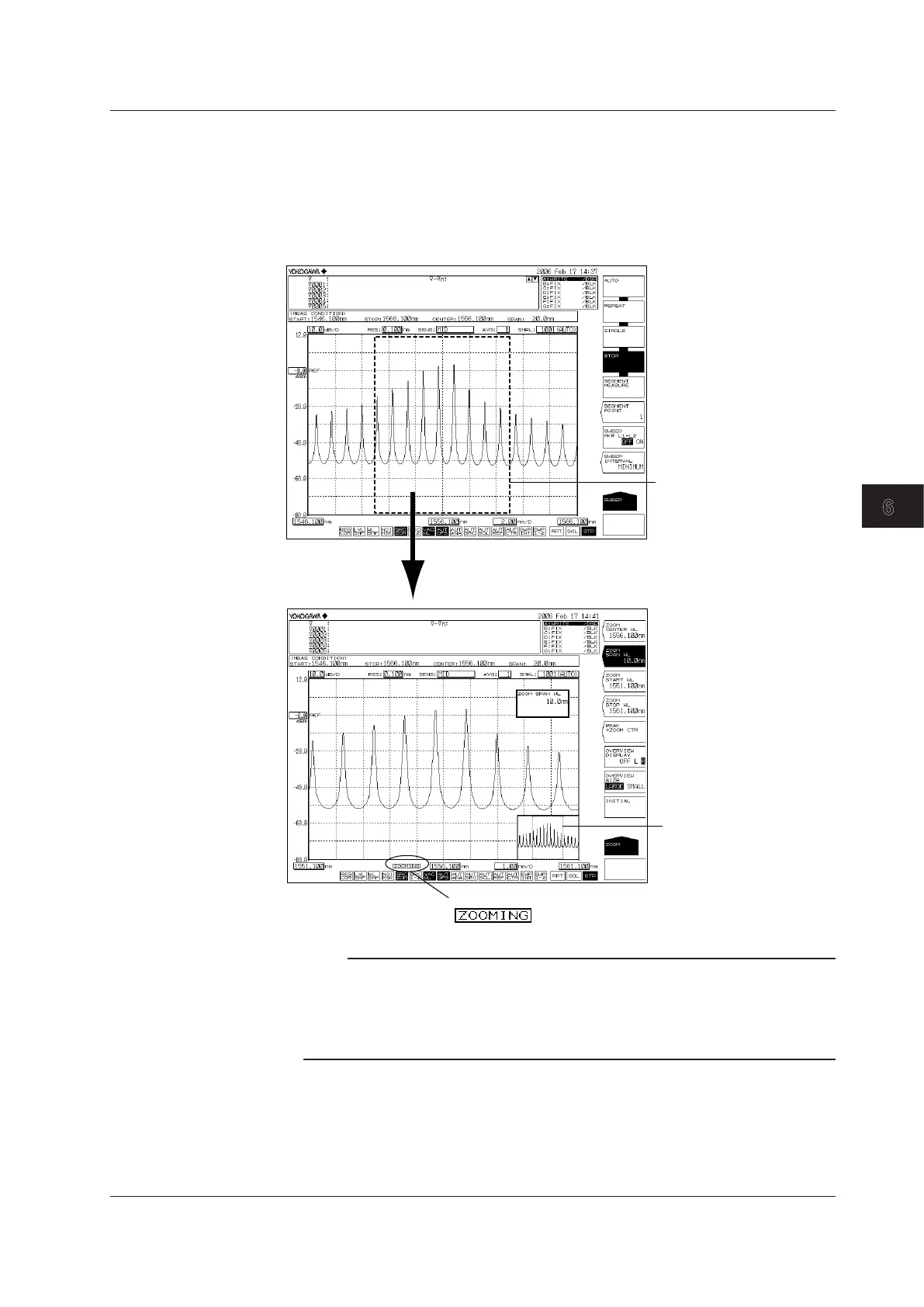

Drag the mouse in the
waveform display area
to set the zoom area
Zoom
After changing the display scale (zooming),
is displayed
The zoom area is displayed
as a dotted line in the
overview window
Note
• If you change the display scale to a value different from the measurement scale, ZOOMING
appears on screen. Also, an overview window that shows the measurement scale is
displayed in the corner of the measurement screen.
• The display scale and measurement scale are mutually independent.
• Changing the zoom function settings does not change the measurement conditions.
To Next Page
