7-71
IM AQ6370D-01EN
Analysis
7

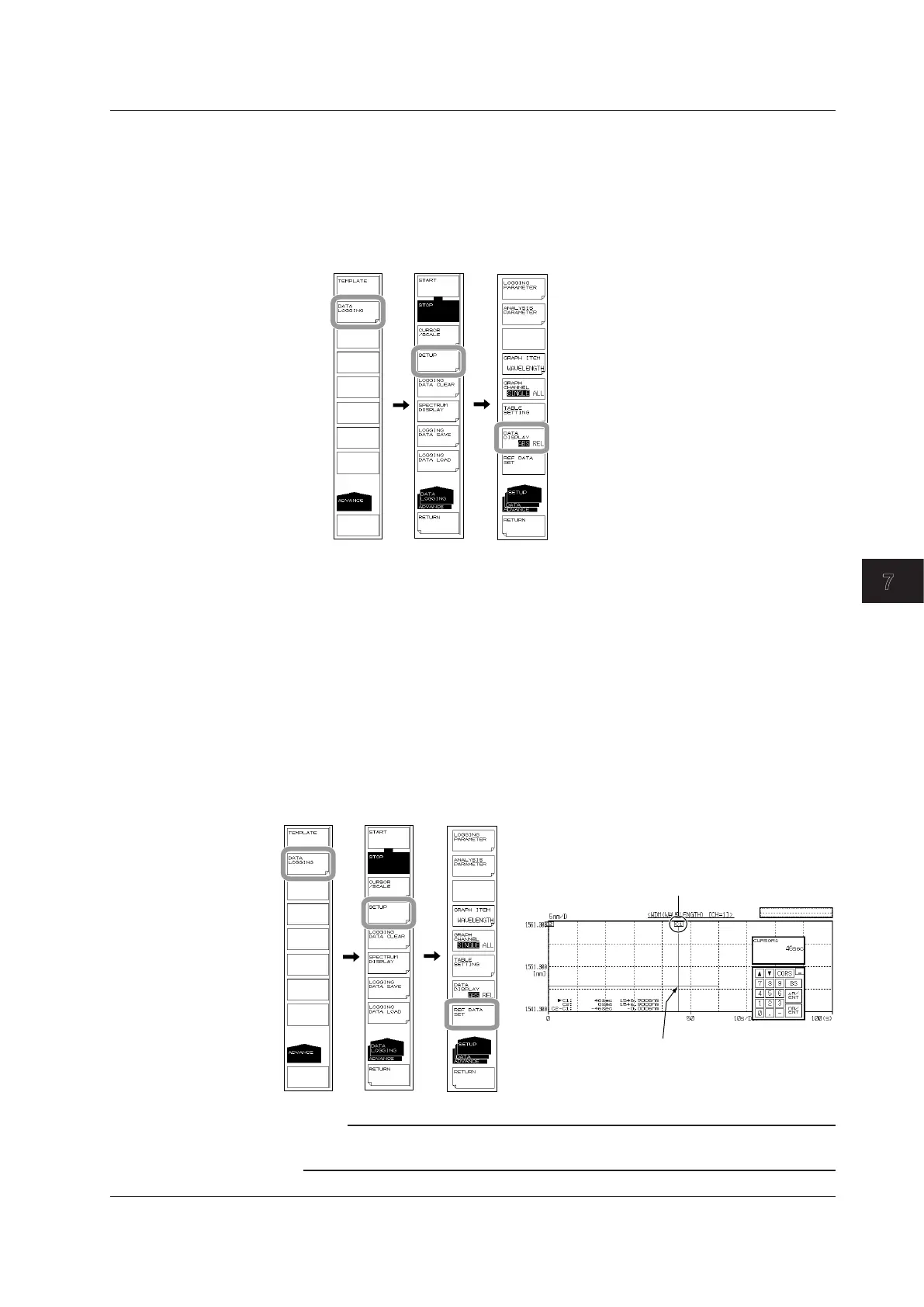

Setting the Table Data Value Display Mode
1.
Press ADVANCE and then the DATA LOGGING soft key. The soft key menu for
data logging appears.
2.
Press the SETUP soft key. A menu for setting the data logging conditions appears.
3.
Press the DATA DISPLAY ABS/REL soft key. The value display mode changes to
ABS (absolute value) or REL (relative value).
Setting the Reference Value for Displaying the Table Data Values Using
Relative Values
1.
Move cursor C1 or C2 to the graph value that you want to make the reference
value (time).
For instructions on how to move the cursors, see “Displaying Graph Values Using
Cursors” on the next page.
2.
Press ADVANCE and then the DATA LOGGING soft key. The soft key menu for
data logging appears.
3.
Press the SETUP soft key. A menu for setting the data logging conditions appears.
4.
Press the REF DATA SET soft key. The reference value is set to the measured
value at the cursor time position.
Cursor C1
The reference value is set to the
measured value at the cursor time
position (e.g., 46 s).
Note
You cannot use the REF DATA SET soft key if data logging has not been executed and no data
exists.
7.15 Analysis Data Logging
To Next Page
