Accessories B - 13
2. Screw the bracket to the cradle(s).
CHS5000-8000CR: Screw the two supplied .5” Phillips screws into the two bracket flanges and tighten until
the cradle is securely attached to the bracket (as shown in drawing A, Figure B-11).
SAC5000-8000CR: Screw one supplied .5” Phillips screw in each flange and tighten one flange to each
cradle (as shown in drawing B, Figure B-11).

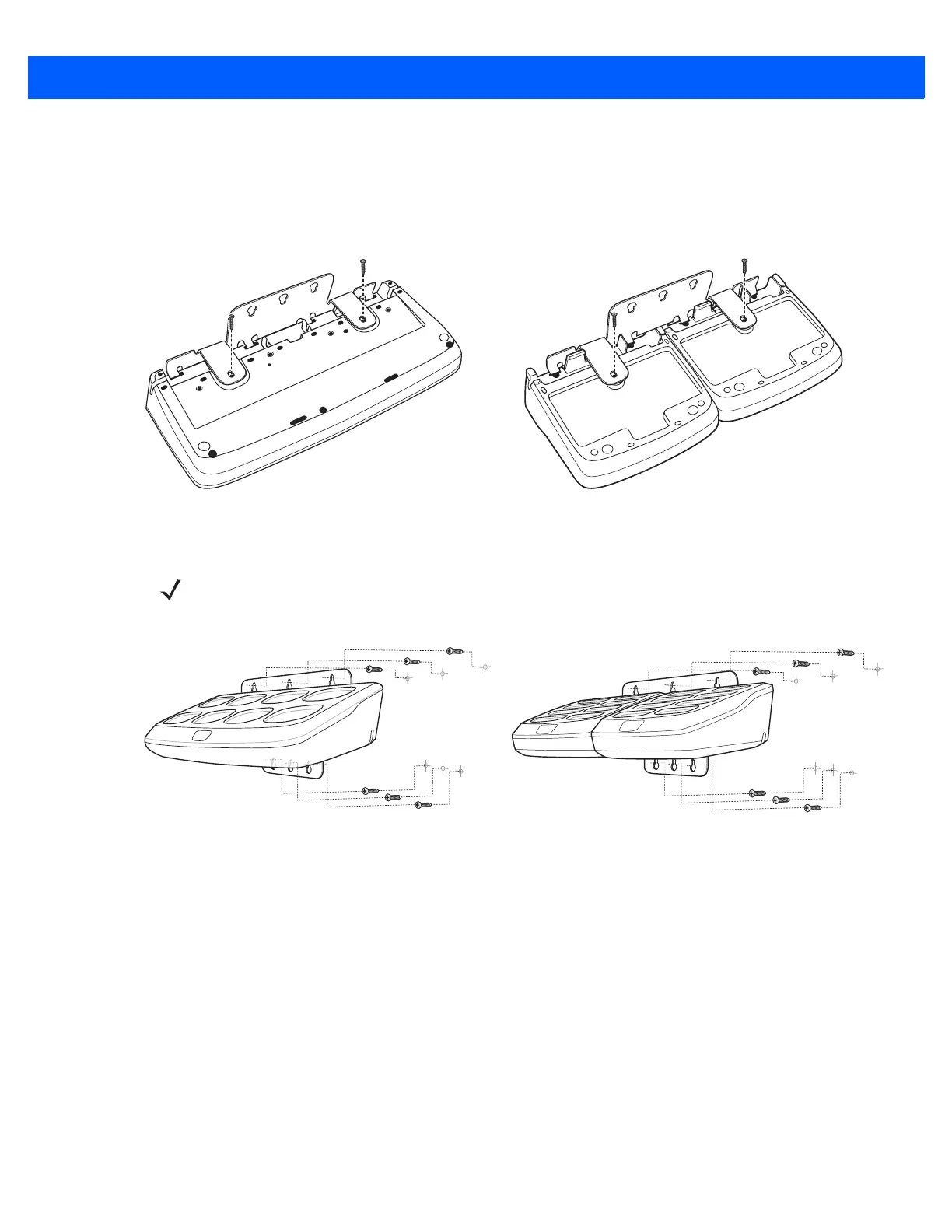

Figure B-11
Screw the Bracket to the Cradle
3. Use six screws (not supplied) to mount the bracket(s) to a wall.
Figure B-12
Mount Bracket(s)
NOTE Ensure to use additional wall mounting hardware, as needed, for safe mounting to the wall type.
