Zebra DS457 User Manual

7 - 14 DS457 Fixed Mount Imager Integration Guide
Snapshot Mode Timeout
Parameter # 323 (SSI # F0h 43h)
This parameter sets the amount of time the imager remains in Snapshot Mode. The imager exits Snapshot
Mode upon a trigger event, or when the Snapshot Mode Timeout elapses. To set this timeout value, scan the
bar code below followed by a bar code from Appendix D, Numeric Bar Codes. The default value is 0 which
represents 30 seconds; values increment by 30. For example, 1 = 60 seconds, 2 = 90 seconds, etc.
Snapshot Aiming Pattern
Parameter # 300 (SSI # F0h 2Ch)
Select Enable Snapshot Aiming Pattern to project the aiming pattern when in Snapshot Mode, or Disable
Snapshot Aiming Pattern to turn the aiming pattern off.

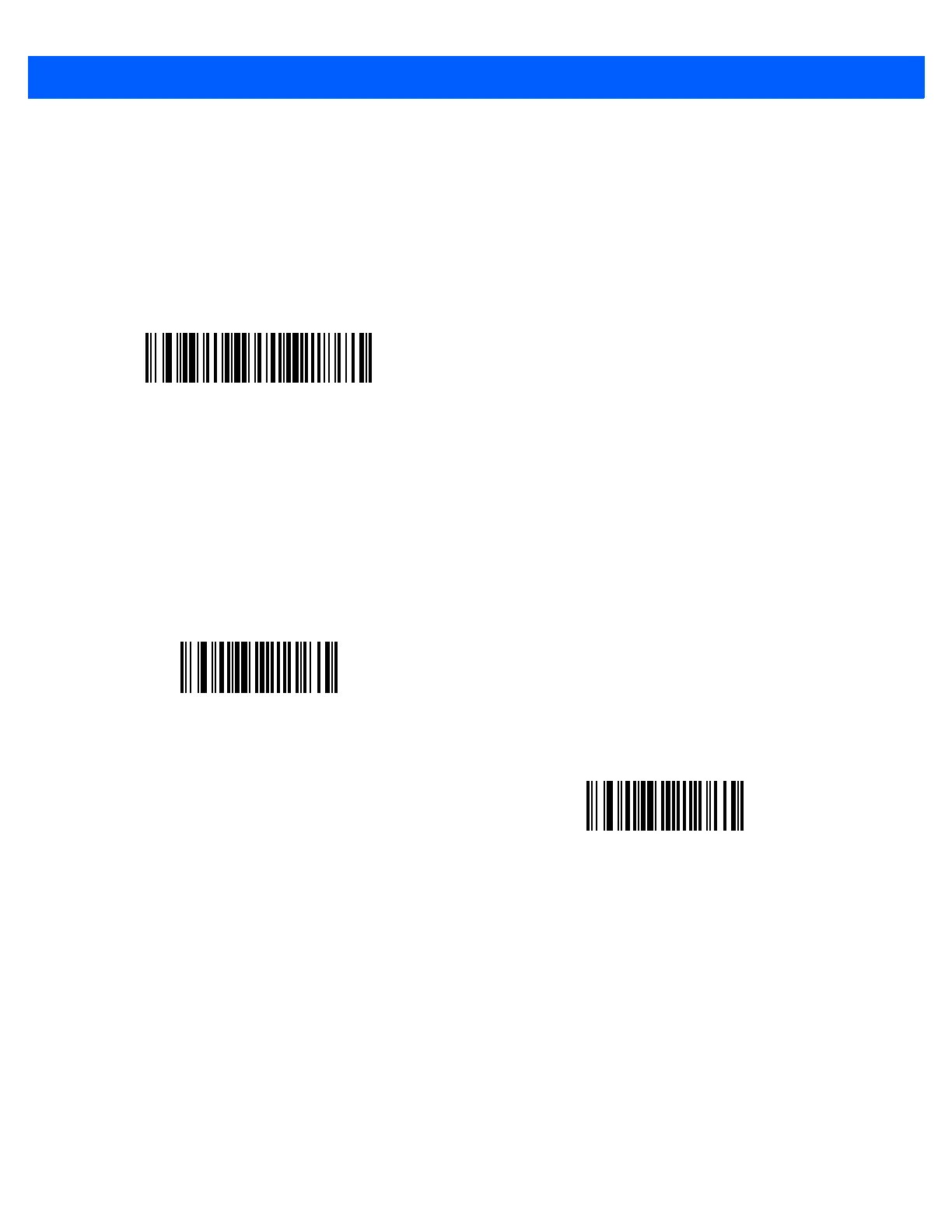

Snapshot Mode Timeout
*Enable Snapshot Aiming Pattern
(1)
Disable Snapshot Aiming Pattern
(0)

Zebra DS457 Specifications

General

Type	Fixed bar code reader
Wavelength	655 nm
Sensor type	-
Scanner type	1D/2D
Optical sensor resolution	752 pixels
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	450 mA
Safety	ETL, VDE, CETL, EN60950, Ctick, VCCI
Certification	FCC, RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Cables included	USB, VGA
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	58.4 mm
Width	62 mm
Height	29.2 mm
Weight	111 g
