12 - 26 DS457 Fixed Mount Imager Integration Guide
Coupon Report
Parameter # 730 (SSI # F1h DAh)
Traditional coupon symbols (old coupon symbols) are composed of two bar codes: UPC/EAN and Code128. A
new coupon symbol is composed of a single Databar Expanded bar code. The new coupon format offers more
options for purchase values (up to $999.99) and supports complex discount offers such as a second purchase
requirement.
An interim coupon symbol also exists that contains both types of bar codes: UPC/EAN and Databar Expanded.
This format accommodates both retailers that do not recognize or use the additional information included in the
new coupon symbol, as well as those who can process new coupon symbols.
Scan a bar code below to select one of the following options for decoding coupon symbols:
• Old Coupon Format - Scanning an old coupon symbol reports both the UPC and Code 128 portion of the
symbol if both are present in the field of view. The imager may report either the UPC or the Code 128 if
only one is within the field of view or is readable. UPC/EAN/JAN Supplemental Redundancy on page
12-15 controls the number of times the imager attempts to decode the entire symbol before transmission.
Additionally, scanning an interim coupon symbol reports UPC, and scanning a new coupon symbol
reports nothing (no decode).
• New Coupon Format - Scanning an old coupon symbol reports either UPC or Code 128, and scanning an
interim coupon symbol or a new coupon symbol reports Databar Expanded.
• Both Coupon Formats - Scanning an old coupon symbol reports both the UPC and Code 128 portion of
the symbol if both are present in the field of view. The imager may report either the UPC or the Code 128
if only one is within the field of view or is readable. UPC/EAN/JAN Supplemental Redundancy on page
12-15 controls the number of times the imager attempts to decode the entire symbol before transmission.
Additionally, scanning an interim coupon symbol or a new coupon symbol reports Databar Expanded.

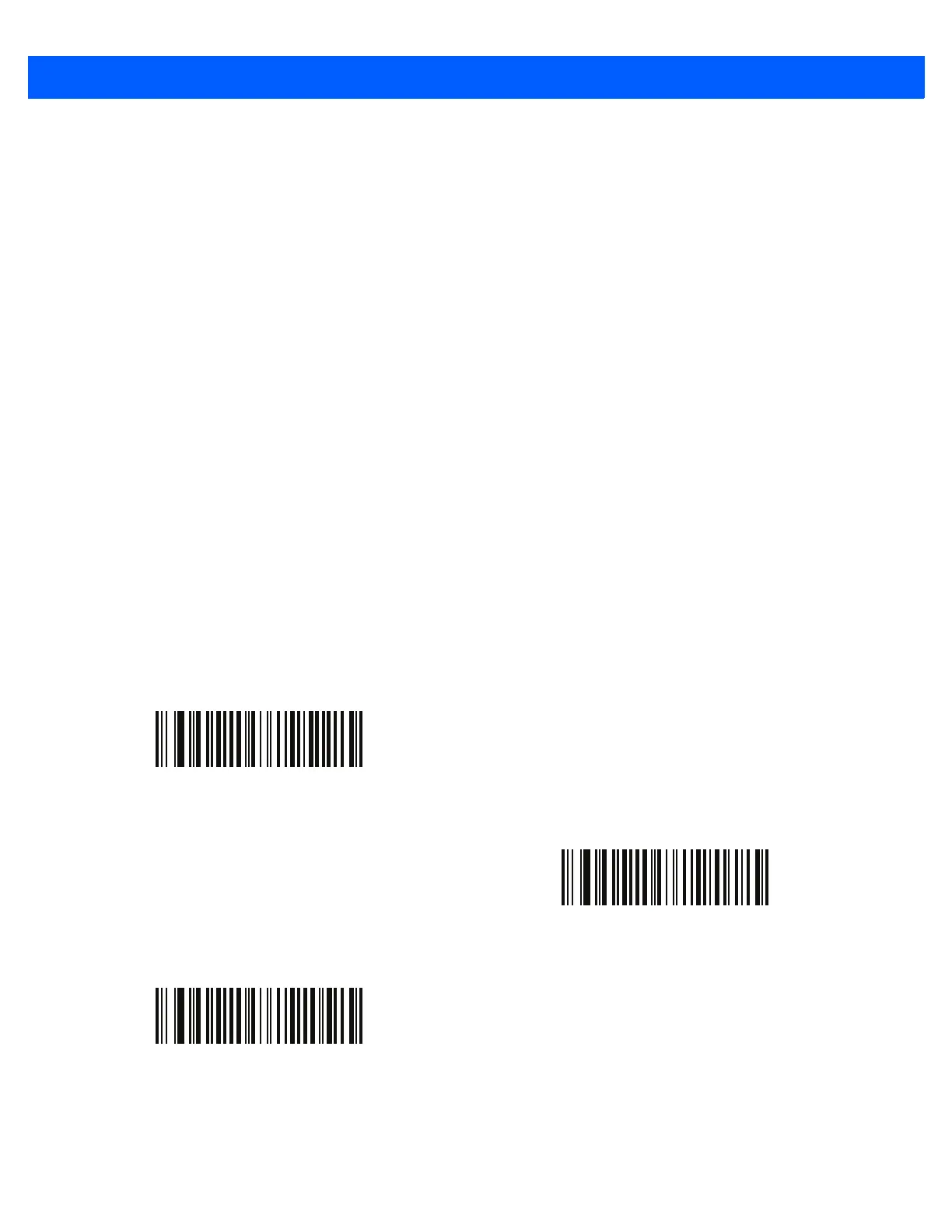

Old Coupon Format
(0)
*New Coupon Format
(1)
Both Coupon Formats
(2)

Zebra DS457 Specifications

General

Type	Fixed bar code reader
Wavelength	655 nm
Sensor type	-
Scanner type	1D/2D
Optical sensor resolution	752 pixels
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	450 mA
Safety	ETL, VDE, CETL, EN60950, Ctick, VCCI
Certification	FCC, RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Cables included	USB, VGA
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	58.4 mm
Width	62 mm
Height	29.2 mm
Weight	111 g
