2 - 2 DS457 Fixed Mount Imager Integration Guide

Mounting

There are two M3 x .5 tapped holes on the bottom of the DS457 housing for mounting. The following figures

provide the mounting dimensions.

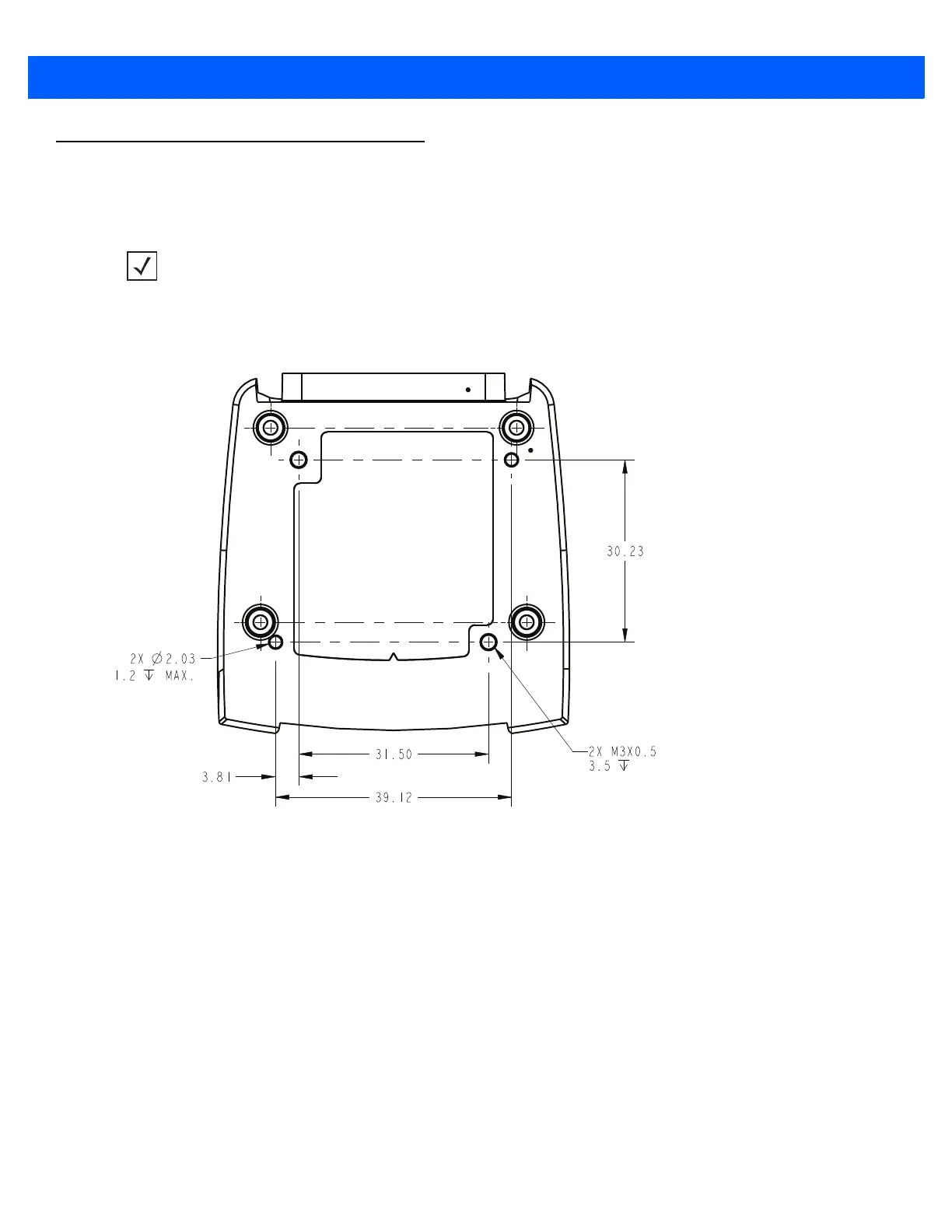

DS457 Mounting Dimensions

Figure 2-1

DS457 Mounting Dimensions

NOTE Do not use screws that penetrate more than 3.5 mm into the bottom mousing of the DS457 since this is the

maximum depth of the useful thread.

Note: Dimensions are in mm.
